购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW18AN15NG00DFIXED IND 15NH 600MA 0.13OHM SMD |
11,906 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 15 nH | ±2% | 600 mA | - | Unshielded | 130mOhm Max | 40 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LQW15AN5N6D10DFIXED IND 5.6NH 800MA 0.051OHM |
11,838 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 5.6 nH | ±0.5nH | 800 mA | - | Unshielded | 51mOhm Max | 30 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW18AN51NG00DFIXED IND 51NH 370MA 0.33OHM SMD |
11,584 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 51 nH | ±2% | 370 mA | - | Unshielded | 330mOhm Max | 38 @ 200MHz | 2.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW15AN75NG00DFIXED IND 75NH 135MA 2.1OHM SMD |
11,492 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 75 nH | ±2% | 135 mA | - | Unshielded | 2.1Ohm Max | 20 @ 150MHz | 2.4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LQW18AN13NG00DFIXED IND 13NH 600MA 0.13OHM SMD |
11,334 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 13 nH | ±2% | 600 mA | - | Unshielded | 130mOhm Max | 35 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW15AN7N3G00DFIXED IND 7.3NH 570MA 0.13OHM SM |
11,092 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 7.3 nH | ±2% | 570 mA | - | Unshielded | 130mOhm Max | 25 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|

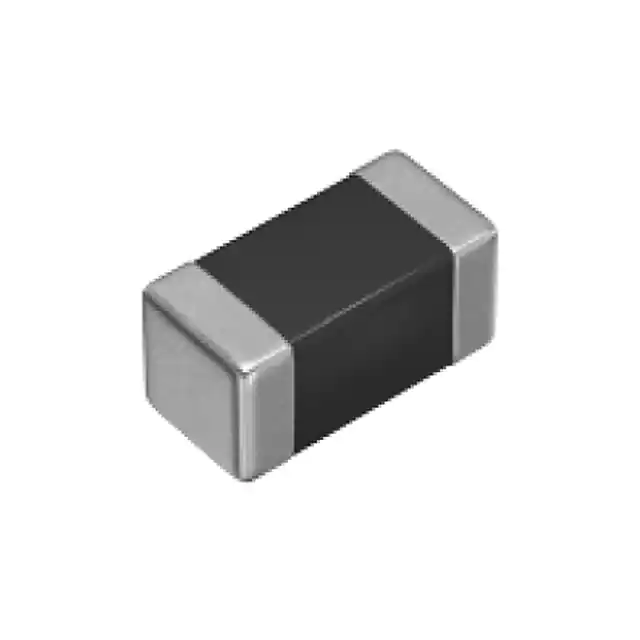

KLZ1608AHR1R0WTD25FIXED IND 1UH 600MA 195 MOHM SMD |
10,609 |
|
规格书 |
KLZ-HR | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 600 mA | 190mA | Shielded | 195mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 10 MHz | Soft Termination | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW18ANR16G00DFIXED IND 160NH 150MA 2.1OHM SMD |
10,475 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 160 nH | ±2% | 150 mA | - | Unshielded | 2.1Ohm Max | 32 @ 150MHz | 1.35GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
.jpg)
|
MLF1608A2R7KTA00FIXED IND 2.7UH 30MA 1.15OHM SMD |
10,417 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.7 µH | ±10% | 30 mA | - | Shielded | 1.15Ohm Max | 35 @ 10MHz | 70MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
 MHQ Series.jpg)
|
MHQ1005P1N9BT000FIXED IND 1.9NH 1A 50 MOHM SMD |
10,063 |
|
规格书 |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.9 nH | ±0.1nH | 1 A | - | Unshielded | 50mOhm Max | 23 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW18AN36NG00DFIXED IND 36NH 400MA 0.26OHM SMD |
9,969 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 36 nH | ±2% | 400 mA | - | Unshielded | 260mOhm Max | 40 @ 250MHz | 2.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQM18PN2R2MFRLFIXED IND 2.2UH 750MA 375MOHM SM |
9,712 |
|
规格书 |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 750 mA | - | Shielded | 375mOhm Max | - | 70MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
LQG15HH2N0S02DFIXED IND 2NH 900MA 0.09OHM SMD |
9,580 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 2 nH | ±0.3nH | 900 mA | - | Unshielded | 90mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW18AN91NG00DFIXED IND 91NH 230MA 0.64OHM SMD |
9,353 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 91 nH | ±2% | 230 mA | - | Unshielded | 640mOhm Max | 34 @ 150MHz | 1.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MLZ2012M4R7WTD25FIXED IND 4.7UH 500MA 300MOHM SM |
9,194 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 500 mA | 180mA | Shielded | 300mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LQW15AN2N6B00DFIXED IND 2.6NH 850MA 0.05OHM SM |
9,000 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 2.6 nH | ±0.1nH | 850 mA | - | Unshielded | 50mOhm Max | 20 @ 250MHz | 15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN3N2B00DFIXED IND 3.2NH 500MA 0.17OHM SM |
8,986 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.2 nH | ±0.1nH | 500 mA | - | Unshielded | 170mOhm Max | 15 @ 250MHz | 14GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
NLV32T-R47J-PFFIXED IND 470NH 450MA 500MOHM SM |
8,872 |
|
规格书 |
NLV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 470 nH | ±5% | 450 mA | - | Unshielded | 500mOhm Max | 30 @ 25.2MHz | 220MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
LQW18AS68NG00DFIXED IND 68NH 600MA 340MOHM SMD |
8,751 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 68 nH | ±2% | 600 mA | - | Unshielded | 340mOhm Max | 37 @ 200MHz | 1.7GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MLZ1608N1R0LTD25FIXED IND 1UH 700MA 110 MOHM SMD |
8,306 |
|
规格书 |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 700 mA | 140mA | Shielded | 110mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
