购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

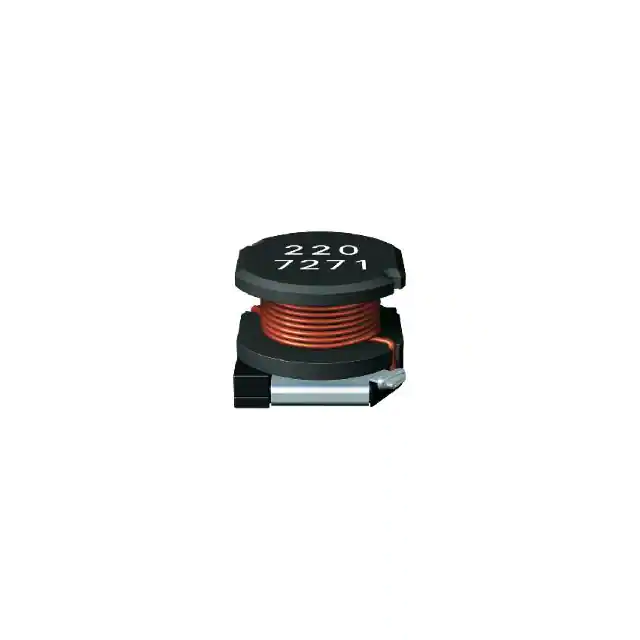

B82475M1154K000FIXED IND 150UH 780MA 470MOHM SM EPCOS - TDK Electronics |
3,384 |
|
规格书 |
B82475M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 780 mA | 820mA | Unshielded | 470mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.370" W (10.40mm x 9.40mm) | 0.228" (5.80mm) |
|
|
B82475M1224K000FIXED IND 220UH 660MA 730MOHM SM EPCOS - TDK Electronics |
3,908 |
|
规格书 |
B82475M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 660 mA | 700mA | Unshielded | 730mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.370" W (10.40mm x 9.40mm) | 0.228" (5.80mm) |
|
|
B82475M1473K000FIXED IND 47UH 1.28A 170MOHM SMD EPCOS - TDK Electronics |
4,388 |
|
规格书 |
B82475M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.28 A | 1.35A | Unshielded | 170mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.370" W (10.40mm x 9.40mm) | 0.228" (5.80mm) |
|
B82475M1474K000FIXED IND 470UH 420MA 1.48OHM SM EPCOS - TDK Electronics |
1,217 |
|
规格书 |
B82475M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 420 mA | 450mA | Unshielded | 1.48Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.370" W (10.40mm x 9.40mm) | 0.228" (5.80mm) |
|
|
B82475M1683K000FIXED IND 68UH 1.11A 220MOHM SMD EPCOS - TDK Electronics |
3,923 |
|
规格书 |
B82475M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.11 A | 1.2A | Unshielded | 220mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.370" W (10.40mm x 9.40mm) | 0.228" (5.80mm) |
|
|
B82475M1684K000FIXED IND 680UH 280MA 2.25OHM SM EPCOS - TDK Electronics |
2,961 |
|
规格书 |
B82475M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 280 mA | 300mA | Unshielded | 2.25Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.370" W (10.40mm x 9.40mm) | 0.228" (5.80mm) |
.JPG)
|
B82442H1225K000FIXED IND 2.2MH 75MA 28 OHM SMD EPCOS - TDK Electronics |
1,651 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 75 mA | - | Unshielded | 28Ohm Max | 30 @ 252kHz | 1.2MHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

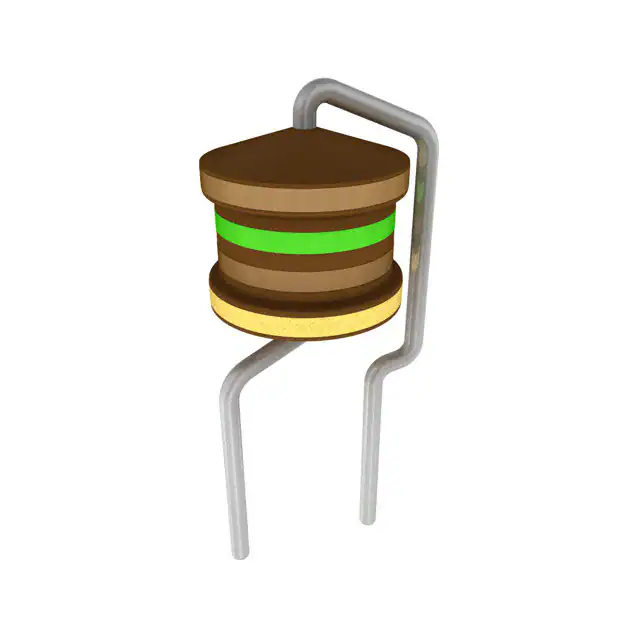

B82144B2154J000FIXED IND 150UH 1.05A 700MOHM TH EPCOS - TDK Electronics |
1,718 |
|
规格书 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 1.05 A | 750mA | Unshielded | 700mOhm Max | 40 @ 79.6kHz | 4.2MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
|
B82475M1333M000FIXED IND 33UH 1.5A 120 MOHM SMD EPCOS - TDK Electronics |
2,174 |
|
规格书 |
B82475M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 1.6A | Unshielded | 120mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.370" W (10.40mm x 9.40mm) | 0.228" (5.80mm) |
|
B82133A5151M000FIXED IND 350UH 150MA 21 OHM TH EPCOS - TDK Electronics |
3,302 |
|
规格书 |
B82133 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 350 µH | ±20% | 150 mA | - | Unshielded | 21Ohm | - | 11MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | - |
