购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82496C3399J000FIXED IND 3.9NH 1.1A 65 MOHM SMD EPCOS - TDK Electronics |
11,315 |
|
规格书 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.9 nH | ±5% | 1.1 A | - | Unshielded | 65mOhm Max | 14 @ 100MHz | 8GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
B82496C3279A000FIXED IND 2.7NH 1.4A 40 MOHM SMD EPCOS - TDK Electronics |
10,741 |
|
规格书 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.7 nH | ±0.3nH | 1.4 A | - | Unshielded | 40mOhm Max | 14 @ 100MHz | 10GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
B82496C3569J000FIXED IND 5.6NH 700MA 150MOHM SM EPCOS - TDK Electronics |
9,199 |
|
规格书 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 700 mA | - | Unshielded | 150mOhm Max | 14 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
B82496C3339A000FIXED IND 3.3NH 1.2A 60 MOHM SMD EPCOS - TDK Electronics |
8,625 |
|
规格书 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.3 nH | ±0.3nH | 1.2 A | - | Unshielded | 60mOhm Max | 14 @ 100MHz | 9GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
B82496C3109A000FIXED IND 1NH 1.8A 20 MOHM SMD EPCOS - TDK Electronics |
1,844 |
|
规格书 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 nH | ±0.3nH | 1.8 A | - | Unshielded | 20mOhm Max | 7 @ 100MHz | 16GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
B78108E1103K009FIXED IND 10UH 2.25A 136 MOHM TH EPCOS - TDK Electronics |
11,433 |
|
规格书 |
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.25 A | 2A | Unshielded | 136mOhm Max | 35 @ 7.96MHz | 20MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|
B78108E1471M009FIXED IND 470NH 5A 27 MOHM TH EPCOS - TDK Electronics |
7,763 |
|
规格书 |
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 5 A | 8.5A | Unshielded | 27mOhm Max | 60 @ 7.96MHz | 400MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|

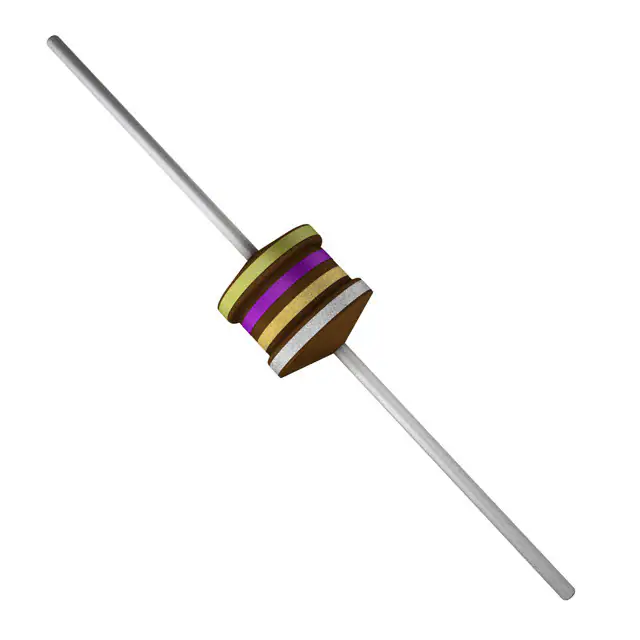

B78108E1472K000FIXED IND 4.7UH 2.75A 85 MOHM TH EPCOS - TDK Electronics |
5,480 |
|
规格书 |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 2.75 A | 2.7A | Unshielded | 85mOhm Max | 45 @ 7.96MHz | 35MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|

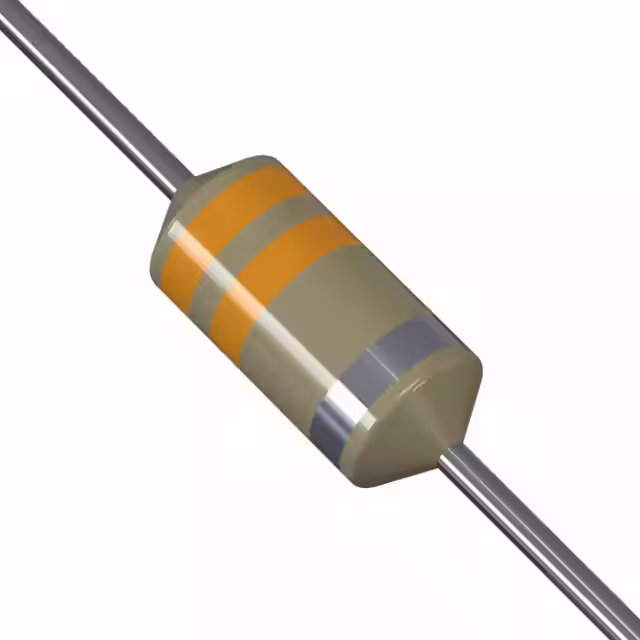

B78108E1331M009FIXED IND 330NH 5.3A 23 MOHM TH EPCOS - TDK Electronics |
4,549 |
|
规格书 |
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 5.3 A | 10.1A | Unshielded | 23mOhm Max | 60 @ 7.96MHz | 480MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|

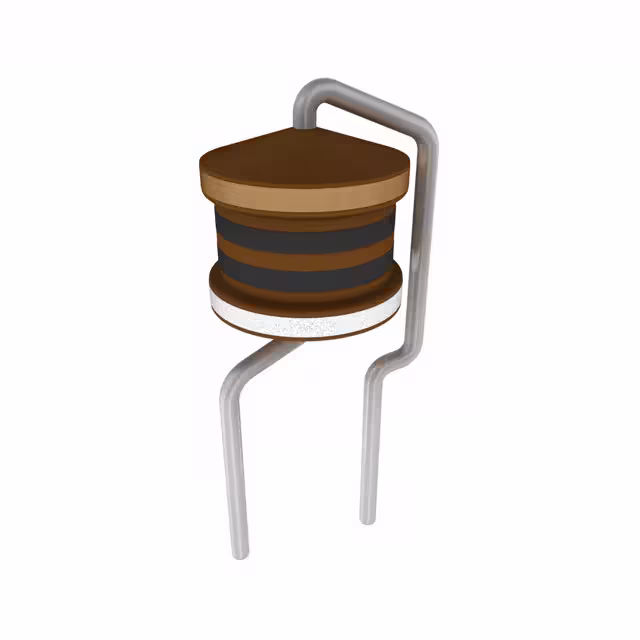

B78148E1103K000FIXED IND 10UH 2.25A 136 MOHM TH EPCOS - TDK Electronics |
5,568 |
|
规格书 |
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.25 A | 2A | Unshielded | 136mOhm Max | 35 @ 7.96MHz | 20MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
