购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-MPIL0630-3R3MCFIXED IND 3.3UH 9.5A 22 MOHM SMD ECS Inc. |
5,031 |
|
规格书 |
ECS-MPIL0630 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 9.5 A | - | Shielded | 22mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.291" L x 0.260" W (7.40mm x 6.60mm) | 0.118" (3.00mm) |
|
ECS-MPIL0530-1R5MCFIXED IND 1.5UH 10A 25 MOHM SMD ECS Inc. |
1,976 |
|
规格书 |
ECS-MPIL0530 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 10 A | - | Shielded | 25mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
ECS-MPIL0630-1R0MCFIXED IND 1UH 15A 9.2 MOHM SMD ECS Inc. |
1,403 |
|
规格书 |
ECS-MPIL0630 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 15 A | - | Shielded | 9.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.291" L x 0.260" W (7.40mm x 6.60mm) | 0.118" (3.00mm) |
|
ECS-MPI4040R2-4R7-RFIXED IND 4.7UH 2.2A 105MOHM SMD ECS Inc. |
2,898 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.2 A | 4.3A | Shielded | 105mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.059" (1.50mm) |
|

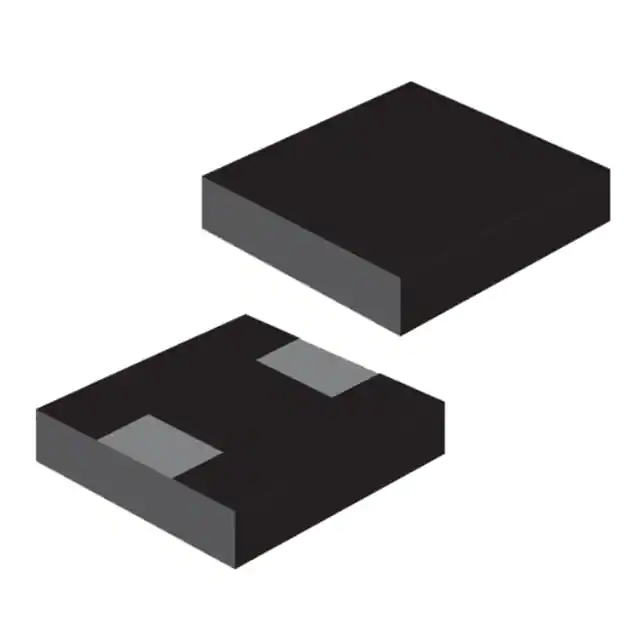

ECS-MPI2520R0-4R7-RFIXED IND 4.7UH 1.4A 288MOHM SMD ECS Inc. |
7,728 |
|
规格书 |
ECS-MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 1.4 A | 1.4A | Shielded | 288mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
ECS-MPI2520R0-3R3-RFIXED IND 3.3UH 1.6A 228MOHM SMD ECS Inc. |
5,978 |
|
规格书 |
ECS-MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 1.6 A | 1.6A | Shielded | 228mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
ECS-MPI2520R1-2R2-RFIXED IND 2.2UH 2.3A 90 MOHM SMD ECS Inc. |
20,328 |
|
规格书 |
ECS-MPI2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 2.3 A | 2.7A | Shielded | 90mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
ECS-MPI4040R3-2R2-RFIXED IND 2.2UH 3.4A 48 MOHM SMD ECS Inc. |
17,487 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 3.4 A | 7.9A | Shielded | 48mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.073" (1.85mm) |
|
|
ECS-MPI4040R4-1R5-RFIXED IND 1.5UH 4.9A 23 MOHM SMD ECS Inc. |
2,087 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 4.9 A | 6.9A | Shielded | 23mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
ECS-MPI4040R2-3R3-RFIXED IND 3.3UH 2.6A 76 MOHM SMD ECS Inc. |
4,055 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 2.6 A | 5.4A | Shielded | 76mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.059" (1.50mm) |
