购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP4B-150-RFIXED IND 15UH 5.5A 23 MOHM SMD Eaton - Electronics Division |
867 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.5 A | 9.1A | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
MP2A-4R7-RFIXED IND 4.7UH 1.6A 117MOHM SMD Eaton - Electronics Division |
5,491 |
|
规格书 |
MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 4.7 µH | ±20% | 1.6 A | 1.81A | Unshielded | 117mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|
HCMA1707-4R7-RFIXED IND 4.7UH 27A 4.72MOHM SMD Eaton - Electronics Division |
485 |
|
规格书 |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 27 A | 24A | Shielded | 4.72mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
UP4B-680-RFIXED IND 68UH 2.4A 120 MOHM SMD Eaton - Electronics Division |
329 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.4 A | 4.3A | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
|
UP4B-470-RFIXED IND 47UH 3.1A 74 MOHM SMD Eaton - Electronics Division |
534 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 3.1 A | 5.2A | Unshielded | 74mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
FP3-R20-RFIXED IND 200NH 15.3A 1.88 MOHM Eaton - Electronics Division |
1,187 |
|
规格书 |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 200 nH | ±15% | 15.3 A | 20.8A | Unshielded | 1.88mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|
|
FP3-4R7-RFIXED IND 4.7UH 3.23A 40MOHM SMD Eaton - Electronics Division |
3,316 |
|
规格书 |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±15% | 3.23 A | 4.2A | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|
HC9-4R3-RFIXED IND 4.3UH 13A 5.9 MOHM SMD Eaton - Electronics Division |
512 |
|
规格书 |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.3 µH | ±15% | 13 A | 19.1A | Unshielded | 5.9mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.555" L x 0.516" W (14.10mm x 13.10mm) | 0.295" (7.50mm) |
|

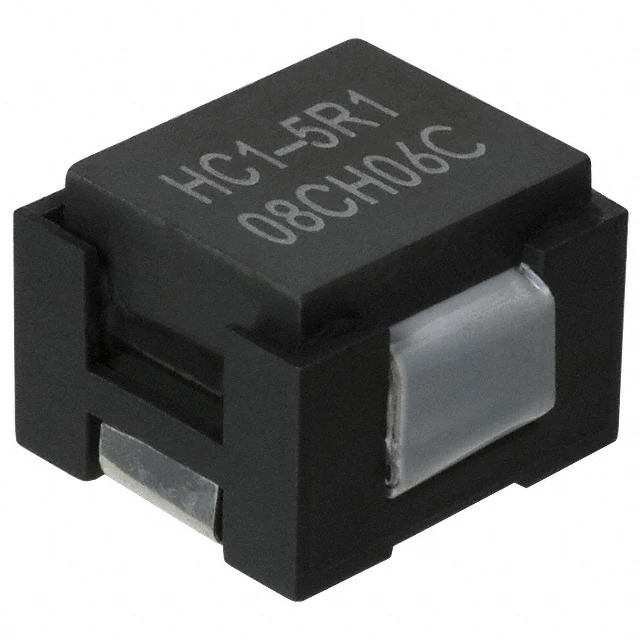

HC1-5R1-RFIXED IND 5.1UH 12.79A 5.7 MOHM Eaton - Electronics Division |
4,199 |
|
规格书 |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.1 µH | ±15% | 12.79 A | 11.2A | Unshielded | 5.7mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.394" (10.00mm) |
|
HCF1305-4R7-RFIXED IND 4.7UH 10.9A 7.2MOHM SM Eaton - Electronics Division |
1,586 |
|
规格书 |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 10.9 A | 10.4A | Unshielded | 7.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
