购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR125-150-RFIXED IND 15UH 4.27A 29.8MOHM SM Eaton - Electronics Division |
440 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.27 A | 5.69A | Shielded | 29.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|

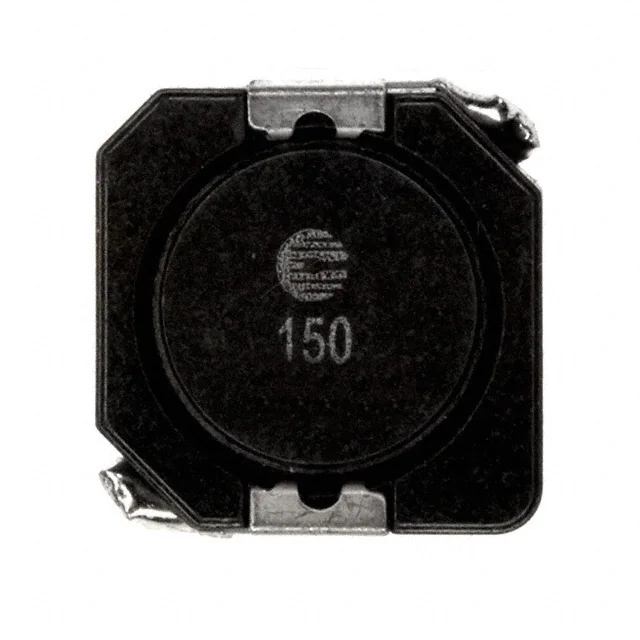

DR1050-150-RFIXED IND 15UH 3.8A 32.5MOHM SMD Eaton - Electronics Division |
6,014 |
|
规格书 |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 3.8 A | 3.7A | Shielded | 32.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
|
DR125-220-RFIXED IND 22UH 3.7A 39.6MOHM SMD Eaton - Electronics Division |
3,144 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.7 A | 4.71A | Shielded | 39.6mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
DR125-331-RFIXED IND 330UH 1.06A 482MOHM SM Eaton - Electronics Division |
2,088 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1.06 A | 1.22A | Shielded | 482mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
DR125-124-RFIXED IND 120MH 60MA 150 OHM SMD Eaton - Electronics Division |
1,822 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 mH | ±20% | 60 mA | 69mA | Shielded | 150Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
DR125-151-RFIXED IND 150UH 1.48A 248MOHM SM Eaton - Electronics Division |
228 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.48 A | 1.81A | Shielded | 248mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|

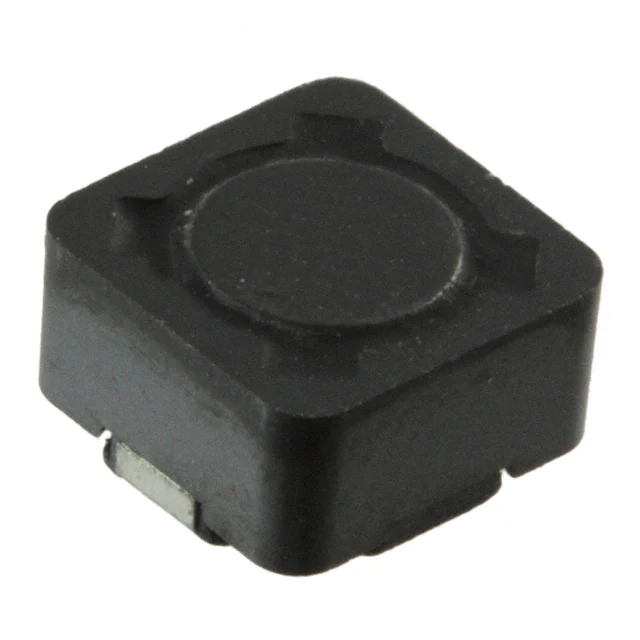

DRA74-151-RFIXED IND 150UH 661MA 648MOHM SM Eaton - Electronics Division |
10,733 |
|
规格书 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 661 mA | 748mA | Shielded | 648mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|

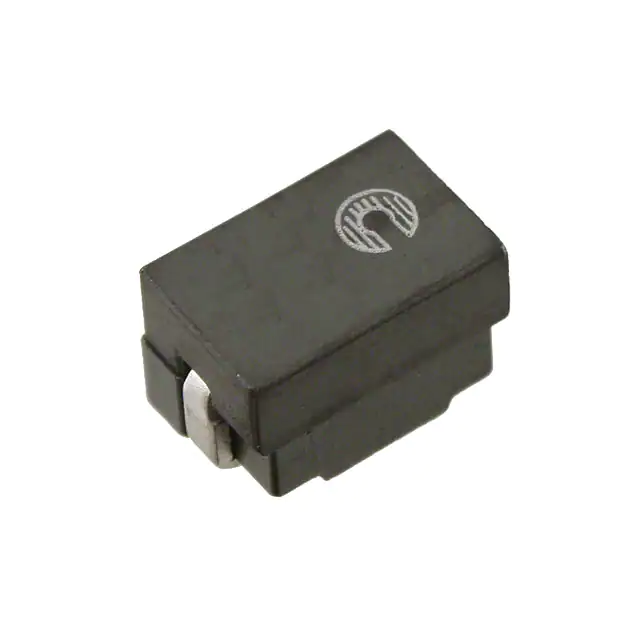

FP1107R1-R23-RFIXED IND 230NH 55A 0.29MOHM SMD Eaton - Electronics Division |
10,654 |
|
规格书 |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 230 nH | ±10% | 55 A | 45A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | 0.295" (7.50mm) |
|
UP2B-150-RFIXED IND 15UH 3.5A 41 MOHM SMD Eaton - Electronics Division |
7,000 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.5 A | 2.4A | Unshielded | 41mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
EXLA1V0505-4R7-RIND MOLDED SHLD 4.7UH 5.9A Eaton - Electronics Division |
9,357 |
|
规格书 |
EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 8.1 A | 7.4A | Shielded | 21mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
