购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CE201210-10NJFIXED IND 10NH 300MA 300MOHM SMD |
16,982 |
|
规格书 |
CE201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±5% | 300 mA | - | Unshielded | 300mOhm Max | 20 @ 100MHz | 2.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.03mm) |
.jpg)
|
LQP03TN4N2B02DFIXED IND 4.2NH 350MA 400MOHM SM |
16,932 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 4.2 nH | ±0.1nH | 350 mA | - | Unshielded | 400mOhm Max | 14 @ 500MHz | 5.3GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
LQG15HN4N7B02DFIXED IND 4.7NH 700MA 0.16OHM SM |
16,694 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 4.7 nH | ±0.1nH | 700 mA | - | Unshielded | 160mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
.jpg)
|
LQG15HN1N0B02DFIXED IND 1NH 1A 0.07OHM SMD |
16,559 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 1 nH | ±0.1nH | 1 A | - | Unshielded | 70mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |

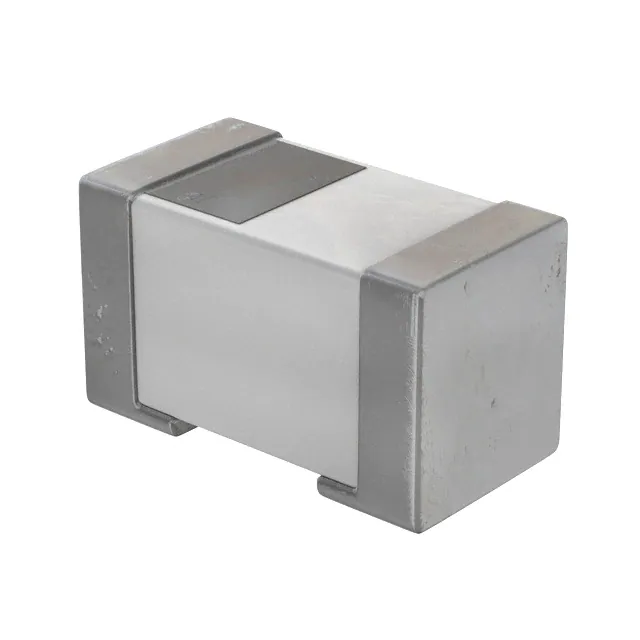

 MHQ Series.jpg)
|
MHQ0603P1N0BT000FIXED IND 1NH 1A 70 MOHM SMD |
16,383 |
|
规格书 |
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1 nH | ±0.1nH | 1 A | - | Unshielded | 70mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
AIMC-0603-2N7S-TFIXED IND 2.7NH 500MA 100MOHM SM |
16,343 |
|
规格书 |
AIMC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.7 nH | ±0.3nH | 500 mA | - | Unshielded | 100mOhm Max | 10 @ 100MHz | 9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
WLFM160808M2R2PPINDUCTOR FIXED 2.2UH 0603 |
16,343 |
|
规格书 |
FM | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 750 mA | - | Unshielded | 300mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
LQP03TG3N3B02DFIXED IND 3.3NH 400MA 320MOHM SM |
16,050 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 3.3 nH | ±0.1nH | 400 mA | - | Unshielded | 320mOhm Max | 13 @ 500MHz | 9.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LQG15HN4N7C02DFIXED IND 4.7NH 700MA 0.16OHM SM |
15,790 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 4.7 nH | ±0.2nH | 700 mA | - | Unshielded | 160mOhm Max | - | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CE201210-R10JFIXED IND 100NH 300MA 900MOHM SM |
15,760 |
|
规格书 |
CE201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 100 nH | ±5% | 300 mA | - | Unshielded | 900mOhm Max | 23 @ 100MHz | 600MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.03mm) |
|
MLG1005S7N5JT000FIXED IND 7.5NH 500MA 250MOHM SM |
15,742 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 7.5 nH | ±5% | 500 mA | - | Unshielded | 250mOhm Max | 8 @ 100MHz | 3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MLF1005G1R8JTD25FIXED IND 1.8UH 30MA 1.05OHM SMD |
15,465 |
|
规格书 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.8 µH | ±5% | 30 mA | - | Shielded | 1.05Ohm Max | 30 @ 10MHz | 90MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG0603PPA2N2CT000FIXED IND 2.2NH 1.4A 54MOHM SMD |
15,232 |
|
规格书 |
MLG-PPA | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.2 nH | ±0.2nH | 1.4 A | - | Shielded | 54mOhm Max | 10 @ 500MHz | 5.6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|

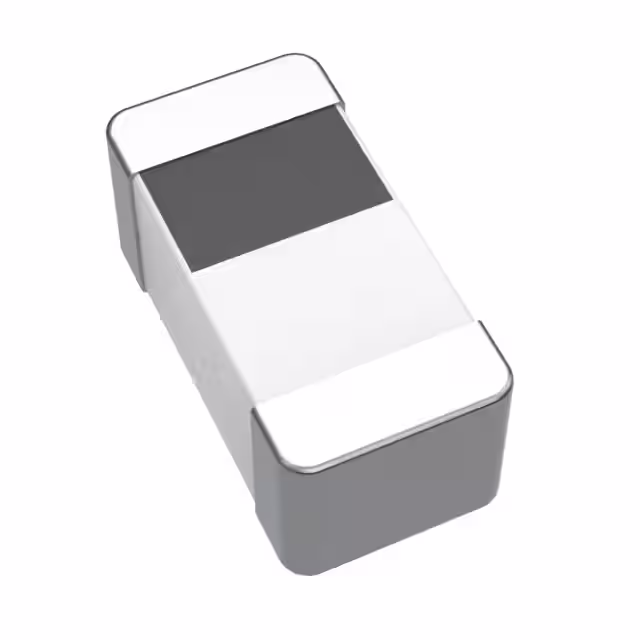

WLCM0603TGB3N3TBINDUCTOR FIXED 3.3NH 0201 |
15,017 |
|
规格书 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.3 nH | ±0.1nH | 400 mA | - | Unshielded | 300mOhm Max | 12 @ 500MHz | 9.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LQP03TN2N0C02DFIXED IND 2NH 600MA 150 MOHM SMD |
14,865 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 2 nH | ±0.2nH | 600 mA | - | Unshielded | 150mOhm Max | 14 @ 500MHz | 12.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LQG15HN4N7S02DFIXED IND 4.7NH 700MA 0.16OHM SM |
14,801 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 4.7 nH | ±0.3nH | 700 mA | - | Unshielded | 160mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15HS27NH02DFIXED IND 27NH 350MA 0.46OHM SMD |
14,790 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 27 nH | ±3% | 350 mA | - | Unshielded | 460mOhm Max | - | 1.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MLZ2012M330WT000FIXED IND 33UH 190MA 2.6 OHM SMD |
14,648 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 33 µH | ±20% | 190 mA | 55mA | Shielded | 2.6Ohm | - | - | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LQP03TN4N3H02DFIXED IND 4.3NH 350MA 400MOHM SM |
14,522 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 4.3 nH | ±3% | 350 mA | - | Unshielded | 400mOhm Max | 14 @ 500MHz | 5.3GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLZ2012E4R7MT000FIXED IND 4.7UH 80MA 300MOHM SMD |
14,333 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ferrite | 4.7 µH | ±20% | 80 mA | - | Shielded | 300mOhm | - | 70MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
