购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0402HP-330EJTSFIXED IND 33NH 490MA 330MOHM SMD Delta Electronics/Components |
7,758 |
|
规格书 |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±5% | 490 mA | - | Unshielded | 330mOhm | - | 2.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HP-370EHTSFIXED IND 37NH 470MA 480MOHM SMD Delta Electronics/Components |
7,129 |
|
规格书 |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 37 nH | ±3% | 470 mA | - | Unshielded | 480mOhm | - | 2.7GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HP-390EJTSFIXED IND 39NH 450MA 430MOHM SMD Delta Electronics/Components |
6,639 |
|
规格书 |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 450 mA | - | Unshielded | 430mOhm | - | 2.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|

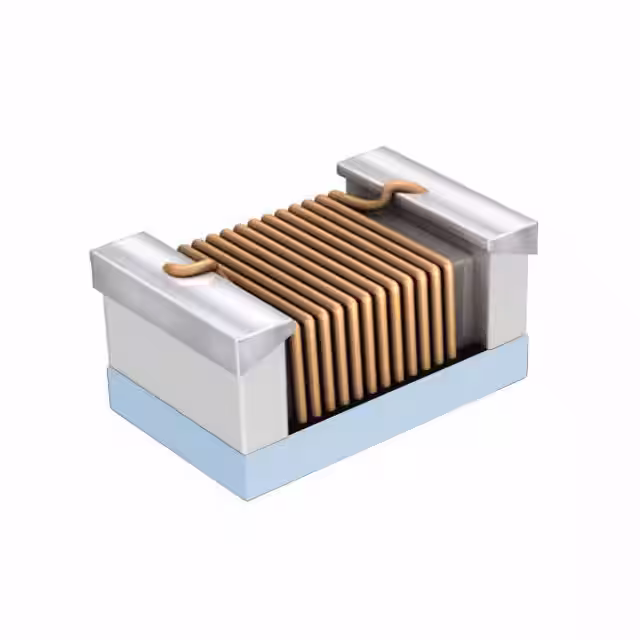

0402HC-5N6ECTSFIXED IND 5.6NH 800MA 51MOHM SMD Delta Electronics/Components |
6,006 |
|
规格书 |
0402HC | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±0.2nH | 800 mA | - | Unshielded | 51mOhm | 30 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|

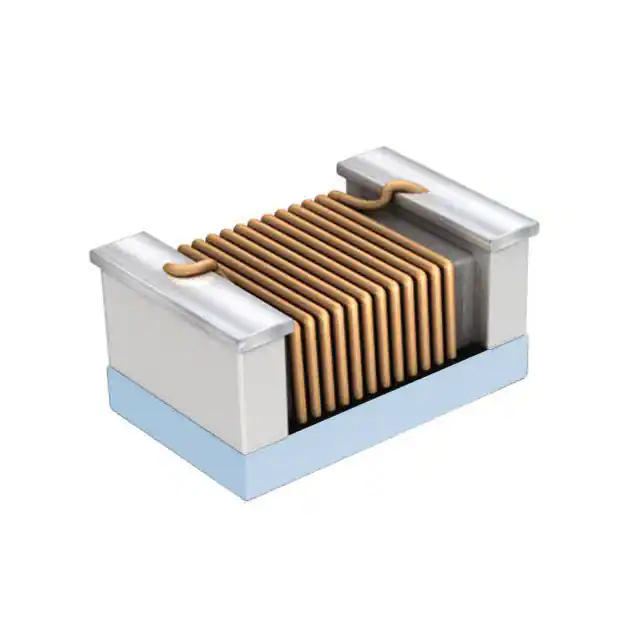

0402HS-2N2EJTSFIXED IND 2.2NH 960MA 70MOHM SMD Delta Electronics/Components |
5,549 |
|
规格书 |
0402HS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.2 nH | ±5% | 960 mA | - | Unshielded | 70mOhm | 19 @ 250MHz | 10.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402HS-4N7EJTSFIXED IND 4.7NH 640MA 130MOHM SM Delta Electronics/Components |
5,165 |
|
规格书 |
0402HS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.7 nH | ±5% | 640 mA | - | Unshielded | 130mOhm | 18 @ 250MHz | 4.7GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402HS-2N0EJTSFIXED IND 2NH 1.04A 70 MOHM SMD Delta Electronics/Components |
4,215 |
|
规格书 |
0402HS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2 nH | ±5% | 1.04 A | - | Unshielded | 70mOhm | 16 @ 250MHz | 11.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402HS-150EKTSFIXED IND 15NH 560MA 172MOHM SMD Delta Electronics/Components |
3,271 |
|
规格书 |
0402HS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±10% | 560 mA | - | Unshielded | 172mOhm | 24 @ 250MHz | 3.28GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402HS-680EKTSFIXED IND 68NH 100MA 1.12OHM SMD Delta Electronics/Components |
3,105 |
|
规格书 |
0402HS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±10% | 100 mA | - | Unshielded | 1.12Ohm | 22 @ 250MHz | 1.62GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
1210HS-473EJFSFIXED IND 47UH 100MA 4.3 OHM SMD Delta Electronics/Components |
1,047 |
|
规格书 |
1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 100 mA | - | Unshielded | 4.3Ohm | 25 @ 2.52MHz | 15MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.094" (2.40mm) |
