购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

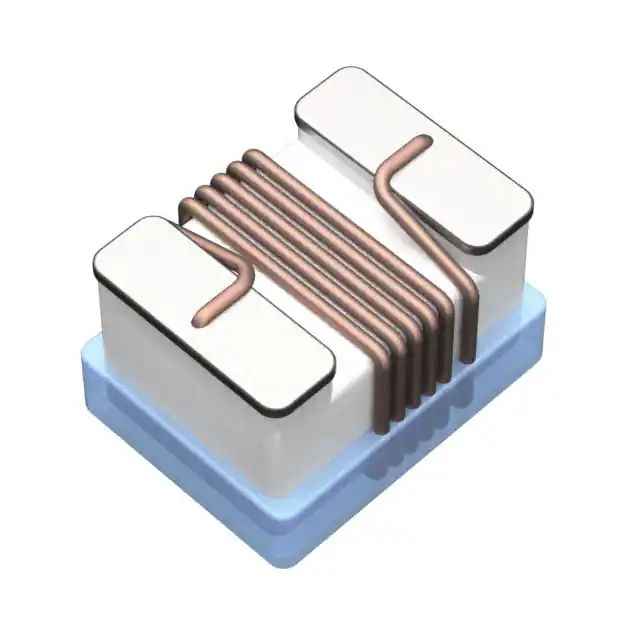

0805CS-751EGTSFIXED IND 750NH 180MA 2.3OHM SMD Delta Electronics/Components |
2,535 |
|
规格书 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 750 nH | ±2% | 180 mA | - | Unshielded | 2.3Ohm | 23 @ 50MHz | 200MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-182EGTSFIXED IND 1.8UH 170MA 2.5OHM SMD Delta Electronics/Components |
2,747 |
|
规格书 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 1.8 µH | ±2% | 170 mA | - | Unshielded | 2.5Ohm | 16 @ 7.9MHz | 80MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-272EGTSFIXED IND 2.7UH 150MA 3.1OHM SMD Delta Electronics/Components |
1,130 |
|
规格书 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2.7 µH | ±2% | 150 mA | - | Unshielded | 3.1Ohm | 16 @ 7.9MHz | 50MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-272EJTSFIXED IND 2.7UH 150MA 3.1OHM SMD Delta Electronics/Components |
4,411 |
|
规格书 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2.7 µH | ±5% | 150 mA | - | Unshielded | 3.1Ohm | 16 @ 7.9MHz | 50MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-272EKTSFIXED IND 2.7UH 150MA 3.1OHM SMD Delta Electronics/Components |
1,663 |
|
规格书 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2.7 µH | ±10% | 150 mA | - | Unshielded | 3.1Ohm | 16 @ 7.9MHz | 50MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-391EJFSFIXED IND 390NH 600MA 350MOHM SM Delta Electronics/Components |
2,014 |
|
规格书 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 390 nH | ±5% | 600 mA | - | Unshielded | 350mOhm | 20 @ 25.2MHz | 420MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.71mm) | 0.057" (1.45mm) |
|
|
0805CS-272EKFSFIXED IND 2.7UH 320MA 1.2OHM SMD Delta Electronics/Components |
1,898 |
|
规格书 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 320 mA | - | Unshielded | 1.2Ohm | 15 @ 7.96MHz | 70MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.71mm) | 0.057" (1.45mm) |
|
1008HS-121EJFSFIXED IND 120NH 1.2A 100MOHM SMD Delta Electronics/Components |
2,261 |
|
规格书 |
1008HS | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 nH | ±5% | 1.2 A | - | Unshielded | 100mOhm | 30 @ 25.2MHz | 800MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
1008HS-121EKFSFIXED IND 120NH 1.2A 100MOHM SMD Delta Electronics/Components |
4,526 |
|
规格书 |
1008HS | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 1.2 A | - | Unshielded | 100mOhm | 30 @ 25.2MHz | 800MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
1008HS-151EJFSFIXED IND 150NH 1.2A 150MOHM SMD Delta Electronics/Components |
2,848 |
|
规格书 |
1008HS | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 nH | ±5% | 1.2 A | - | Unshielded | 150mOhm | 30 @ 25.2MHz | 800MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
