购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LQP03TN1N0B02DFIXED IND 1NH 750MA 100 MOHM SMD |
508,963 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 1 nH | ±0.1nH | 750 mA | - | Unshielded | 100mOhm Max | 14 @ 500MHz | 17GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
LRC0402CJ12NGV001TFIXED IND 12NH 250MA 500MOHM SMD |
436,214 |
|
规格书 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 12 nH | ±5% | 250 mA | - | Unshielded | 500mOhm Max | 8 @ 100MHz | 3.2GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LQP03TN5N6H02DFIXED IND 5.6NH 350MA 400MOHM SM |
398,095 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 5.6 nH | ±3% | 350 mA | - | Unshielded | 400mOhm Max | 14 @ 500MHz | 4GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
MLZ2012DR47DT000FIXED IND 470NH 700MA 180MOHM SM |
367,578 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 700 mA | 550mA | Shielded | 180mOhm | - | - | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
-1,45mm.jpg)
|
LBR2012T220KFIXED IND 22UH 100MA 1 OHM SMD |
361,103 |
|
规格书 |
LB, R Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±10% | 100 mA | - | Unshielded | 1Ohm | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LRC0402CJ15NGV001TFIXED IND 15NH 250MA 600MOHM SMD |
265,607 |
|
规格书 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±5% | 250 mA | - | Unshielded | 600mOhm Max | 8 @ 100MHz | 3.1GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LRC0402CS2N2GV001TFIXED IND 2.2NH 300MA 160MOHM SM |
229,822 |
|
规格书 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.2 nH | ±0.3nH | 300 mA | - | Unshielded | 160mOhm Max | 8 @ 100MHz | 12GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LBR2012T101KFIXED IND 100UH 50MA 4 OHM SMD |
226,450 |
|
规格书 |
LB, R Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±10% | 50 mA | - | Unshielded | 4Ohm | - | 8MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LRC0603CS4N7GV001TFIXED IND 4.7NH 300MA 300MOHM SM |
210,511 |
|
规格书 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 4.7 nH | ±0.3nH | 300 mA | - | Unshielded | 300mOhm Max | 8 @ 100MHz | 5.4GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LRC0402CJ8N2GV001TFIXED IND 8.2NH 250MA 400MOHM SM |
198,871 |
|
规格书 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 8.2 nH | ±5% | 250 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 4.6GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
LRC0603CJ15NGV001TFIXED IND 15NH 300MA 550MOHM SMD |
189,871 |
|
规格书 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±5% | 300 mA | - | Unshielded | 550mOhm Max | 8 @ 100MHz | 2.9GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
LQP03TG0N5B02DFIXED IND 0.5NH 850MA 80MOHM SMD |
189,142 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 0.5 nH | ±0.1nH | 850 mA | - | Unshielded | 80mOhm Max | 11 @ 500MHz | 18GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LRC0603CJ22NGV001TFIXED IND 22NH 300MA 650MOHM SMD |
187,965 |
|
规格书 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 22 nH | ±5% | 300 mA | - | Unshielded | 650mOhm Max | 10 @ 100MHz | 2.1GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LQW18AN3N6C00DFIXED IND 3.6NH 850MA 0.059OHM |
179,372 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.6 nH | ±0.2nH | 850 mA | - | Unshielded | 59mOhm Max | 25 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQP03TN27NH02DFIXED IND 27NH 140MA 2.3 OHM SMD |
176,170 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 27 nH | ±3% | 140 mA | - | Unshielded | 2.3Ohm Max | 12 @ 500MHz | 2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
.jpg)
|
LQG15HSR27J02DFIXED IND 270NH 110MA 4.94OHM SM |
172,795 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 270 nH | ±5% | 110 mA | - | Unshielded | 4.94Ohm Max | 8 @ 100MHz | 400MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LRC0603CS3N9GV001TFIXED IND 3.9NH 300MA 250MOHM SM |
171,865 |
|
规格书 |
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 300 mA | - | Unshielded | 250mOhm Max | 8 @ 100MHz | 6.3GHz | - | -55°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQP03TN1N1B02DFIXED IND 1.1NH 750MA 100MOHM SM |
169,068 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 1.1 nH | ±0.1nH | 750 mA | - | Unshielded | 100mOhm Max | 14 @ 500MHz | 17GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|

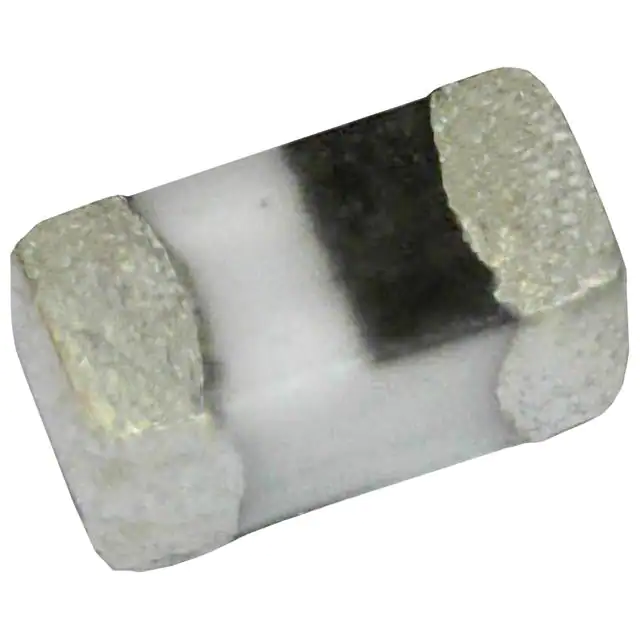

BSCQ000603032N2B00FIXED IND 2.2NH 500MA 200MOHM SM |
168,331 |
|
规格书 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.2 nH | ±0.1nH | 500 mA | - | Unshielded | 200mOhm Max | 14 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
LQW15AN4N7B00DFIXED IND 4.7NH 750MA 0.07OHM SM |
159,237 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.7 nH | ±0.1nH | 750 mA | - | Unshielded | 70mOhm Max | 25 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
