购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DO5022P-474MLDFIXED IND 470UH 820MA 850MOHM SM Coilcraft |
622 |
|
规格书 |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 820 mA | 1.4A | Unshielded | 850mOhm Max | - | 3MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
DO5022P-562MLDFIXED IND 5.6UH 5.3A 20MOHM SM Coilcraft |
480 |
|
规格书 |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 5.3 A | 12A | Unshielded | 20mOhm Max | - | 40MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
DO5022P-822MLDDO5022P-822 Coilcraft |
141 |
|
规格书 |
DO5022P | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 8.2 µH | ±20% | 4.8 A | 11.5A | Unshielded | 29mOhm | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.600" W (12.70mm x 15.24mm) | 0.280" (7.11mm) |
|

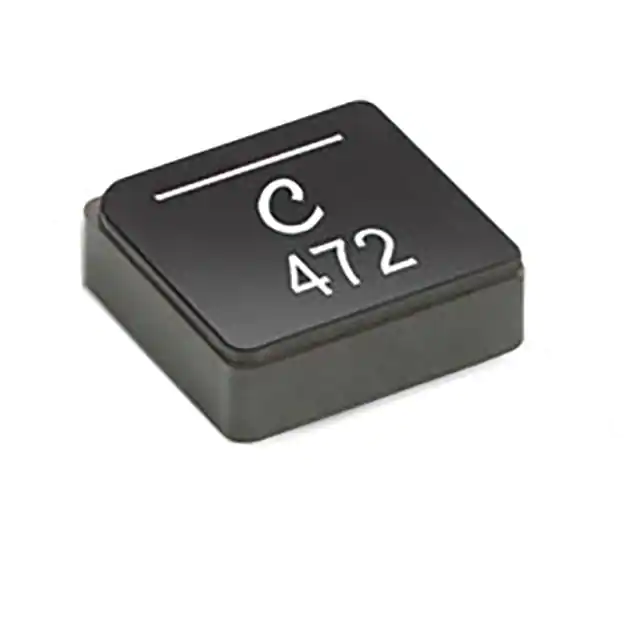

XGL5020-901MECFIXED INDUCTOR 0.9UH SMD Coilcraft |
5,288 |
|
规格书 |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 900 nH | ±20% | 11.4 A | 11.8A | Shielded | 8mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-182MECFIXED INDUCTOR 1.8UH SMD Coilcraft |
5,190 |
|
规格书 |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 1.8 µH | ±20% | 8.6 A | 8.3A | Shielded | 16.5mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-562MECFIXED INDUCTOR 5.6UH SMD Coilcraft |
4,650 |
|
规格书 |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 5.6 µH | ±20% | 4.3 A | 4.9A | Shielded | 52mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
|
XGL5020-821MECFIXED INDUCTOR 0.82UH SMD Coilcraft |
4,381 |
|
规格书 |
XGL5020 | Nonstandard | Strip | Active | Molded | - | 820 nH | ±20% | 12.4 A | 12.3A | Shielded | 6.8mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.083" (2.10mm) |
|
XGL5030-901MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
2,314 |
|
规格书 |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 900 nH | ±20% | 19.7 A | 14.5A | Shielded | 5.2mOhm Max | - | 54MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.122" (3.10mm) |
|

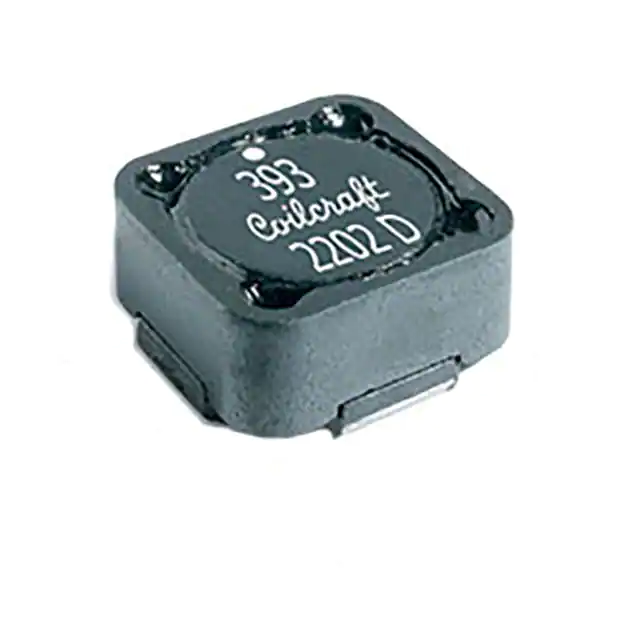

MSS1260H-682MEDFIXED INDUCTOR 6.8UH SMD Coilcraft |
1,350 |
|
规格书 |
MSS1260H | Nonstandard | Strip | Active | Drum Core | Ferrite | 6.8 µH | ±20% | 4.4 A | 8.6A | Shielded | 13.4mOhm Max | - | 33MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.246" (6.25mm) |
|
|
MSS1260H-564KEDFIXED INDUCTOR 560UH SMD Coilcraft |
1,222 |
|
规格书 |
MSS1260H | Nonstandard | Strip | Active | Drum Core | Ferrite | 560 µH | ±10% | 580 mA | 930mA | Shielded | 710mOhm Max | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.246" (6.25mm) |
