购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

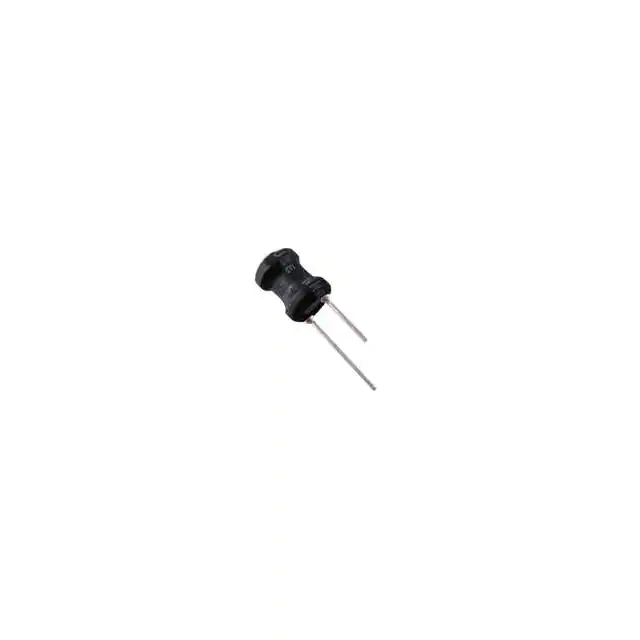

CTRLB9012F-123K12000UH RADIAL FIXED INDUCTR Central Technologies |
1,500 |
|
规格书 |
CTRLB9012F | Radial, Vertical Cylinder | Bulk | Active | - | - | 12 mH | ±10% | 150 µA | - | Unshielded | 34.7Ohm Max | 15 @ 79.6kHz | 280kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
CTRLB9012F-151K150UH RADIAL FIXED INDUCTOR Central Technologies |
2,256 |
|
规格书 |
CTRLB9012F | Radial, Vertical Cylinder | Bulk | Active | - | - | 150 µH | ±10% | 1.15 mA | - | Unshielded | 370mOhm Max | 20 @ 796kHz | 3.2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
CTRLB9012F-100K10UH RADIAL FIXED INDUCTOR Central Technologies |
1,782 |
|
规格书 |
CTRLB9012F | Radial, Vertical Cylinder | Bulk | Active | - | - | 10 µH | ±10% | 3.4 mA | - | Unshielded | 45mOhm Max | 50 @ 2.52MHz | 14MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|

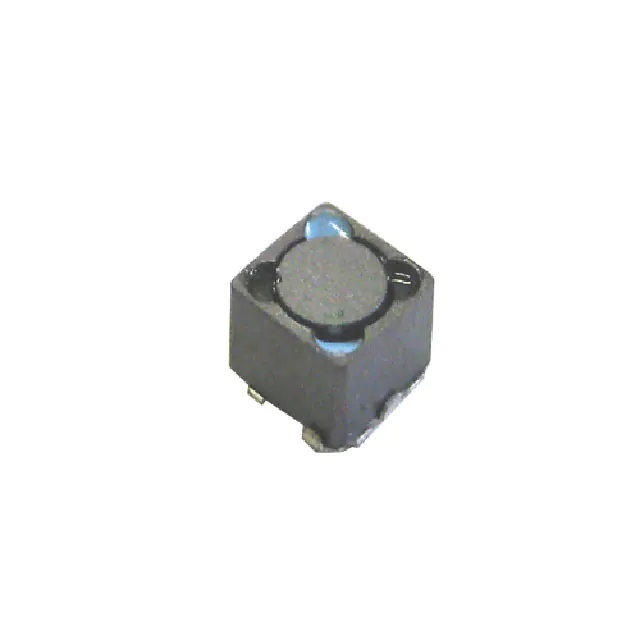

CTSPI3D12F-100MSMD SHIELDED POWER INDUCTOR Central Technologies |
1,140 |
|
规格书 |
CTSPI3D12F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 900 mA | 860mA | Shielded | 327mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.049" (1.25mm) |
|
|
CTSPI3D12F-1R2MSMD SHIELDED POWER INDUCTOR Central Technologies |
3,358 |
|
规格书 |
CTSPI3D12F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 1.9 A | 2.2A | Shielded | 48mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.049" (1.25mm) |
|
CTMMP2212F-1R0MSMD Shielded Power Inductor Central Technologies |
2,976 |
|
规格书 |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 11 A | - | Shielded | 15mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.118" (3.00mm) |
|
|
CTMMP2212F-4R7MSMD Shielded Power Inductor Central Technologies |
3,852 |
|
规格书 |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 6 A | - | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.118" (3.00mm) |
|
|
CTMMP2212F-2R2MSMD Shielded Power Inductor Central Technologies |
2,376 |
|
规格书 |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 8 A | - | Shielded | 35mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.118" (3.00mm) |
|
CTMC1812SF-2R2JSMD FERRITE CORE WW INDUCTOR Central Technologies |
4,765 |
|
规格书 |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 380 mA | - | Unshielded | 700mOhm Max | 50 @ 7.96MHz | 160MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-R10KSMD FERRITE CORE WW INDUCTOR Central Technologies |
3,700 |
|
规格书 |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 800 mA | - | Unshielded | 180mOhm Max | 35 @ 25.2MHz | 780MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
