购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTDT1608CF-334330UH SMD SHIELDED POWR INDUCTOR Central Technologies |
2,235 |
|
规格书 |
CTDT1608F | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 160 mA | - | Shielded | 2.9Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDT1608CF-154150UH SMD SHIELDED POWR INDUCTOR Central Technologies |
1,497 |
|
规格书 |
CTDT1608F | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 200 mA | - | Shielded | 1.4Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDT1608CF-224220UH SMD SHIELDED POWR INDUCTOR Central Technologies |
1,470 |
|
规格书 |
CTDT1608F | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 170 mA | - | Shielded | 2.3Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDT1608CF-33333UH SMD SHIELDED POWR INDUCTOR Central Technologies |
560 |
|
规格书 |
CTDT1608F | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 450 mA | - | Shielded | 280mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|

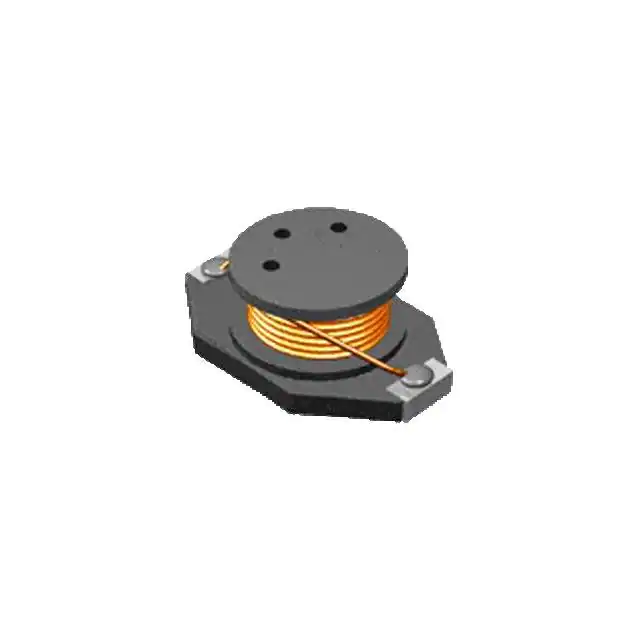

CTDO3316PF-104100UH SMD UNSHLD POWER INDUCTOR Central Technologies |
3,457 |
|
规格书 |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.3 A | 1.2A | Unshielded | 300mOhm | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|
|
CTDO3316PF-10310UH SMD UNSHLD POWER INDUCTOR Central Technologies |
3,337 |
|
规格书 |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 3.9 A | 3.8A | Unshielded | 40mOhm | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|
|
CTDO3316PF-47347UH SMD UNSHLD POWER INDUCTOR Central Technologies |
2,902 |
|
规格书 |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1.8 A | 1.6A | Unshielded | 140mOhm | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|
|
CTDO3316PF-15315UH SMD UNSHLD POWER INDUCTOR Central Technologies |
2,034 |
|
规格书 |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 3.1 A | 3A | Unshielded | 50mOhm | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|
|
CTDO3316PF-6826.8UH SMD UNSHLD POWER INDUCTOR Central Technologies |
1,962 |
|
规格书 |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 4.4 A | 4.6A | Unshielded | 30mOhm | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
|
|
CTDO3316PF-1051MH SMD UNSHLD POWER INDUCTOR Central Technologies |
1,960 |
|
规格书 |
CTDO3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 300 mA | 300mA | Unshielded | 3Ohm | - | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.205" (5.20mm) |
