购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTGS54F-100M10UH SMD UNSHLD POWER INDUCTOR Central Technologies |
1,643 |
|
规格书 |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.4 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-470K47UH SMD UNSHLD POWER INDUCTOR Central Technologies |
800 |
|
规格书 |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|
|
CTGS54F-680K68UH SMD UNSHLD POWER INDUCTOR Central Technologies |
645 |
|
规格书 |
CTGS54F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±10% | 610 mA | - | Unshielded | 460mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
|

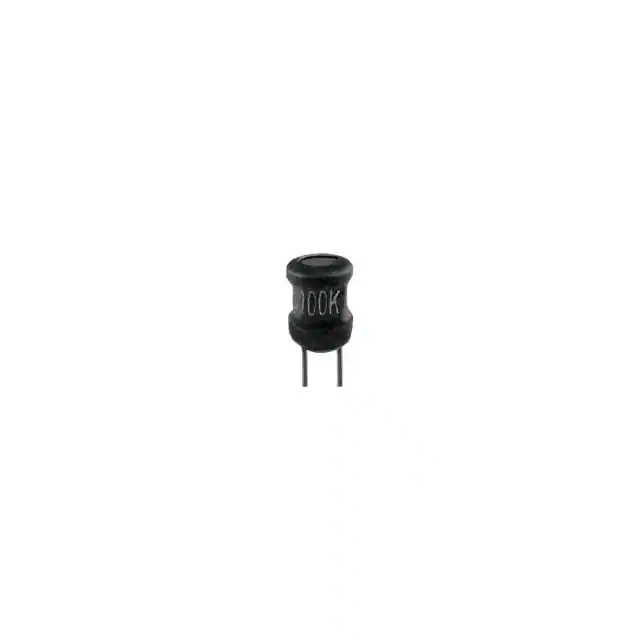

CTRFB0810F-681K680UH RADIAL FIXED INDUCTOR Central Technologies |
22,935 |
|
规格书 |
CTRFB0810F | Radial, Vertical Cylinder | Bulk | Active | - | - | 680 µH | ±10% | 700 mA | 520mA | Unshielded | 1.4Ohm Max | - | 2MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.374" Dia (9.50mm) | 0.453" (11.50mm) |
|
CTH6EF-2R2K2.2UH MINI AXL P-LINE INDUCTOR Central Technologies |
7,985 |
|
规格书 |
CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±10% | 2.6 A | 2A | Unshielded | 30mOhm Max | - | 130MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
CTH6EF-3R3K3.3UH MINI AXL P-LINE INDUCTOR Central Technologies |
3,995 |
|
规格书 |
CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±10% | 1.9 A | 1.7A | Unshielded | 50mOhm Max | - | 110MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
CTH6EF-5R6K5.6UH MINI AXL P-LINE INDUCTOR Central Technologies |
1,944 |
|
规格书 |
CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±10% | 1.6 A | 1.3A | Unshielded | 70mOhm Max | - | 64MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
CTH6EF-102K1000UH MINI AXL P-LINE INDUCTR Central Technologies |
986 |
|
规格书 |
CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±10% | 160 mA | 95mA | Unshielded | 7.9Ohm Max | - | 1MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
CTH6EF-271K270UH MINI AXL P-LINE INDUCTOR Central Technologies |
925 |
|
规格书 |
CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 270 µH | ±10% | 310 mA | 180mA | Unshielded | 2.1Ohm Max | - | 2.1MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
CTH6EF-150K15UH MINI AXL P-LINE INDUCTOR Central Technologies |
735 |
|
规格书 |
CTH6F | Axial | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±10% | 1.2 A | 790mA | Unshielded | 150mOhm Max | - | 13MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
