购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1210R-103KFIXED IND 10UH 291MA 1.9 OHM SMD |
919 |
|
规格书 |
S1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±10% | 291 mA | - | Shielded | 1.9Ohm Max | 40 @ 2.5MHz | 28MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|

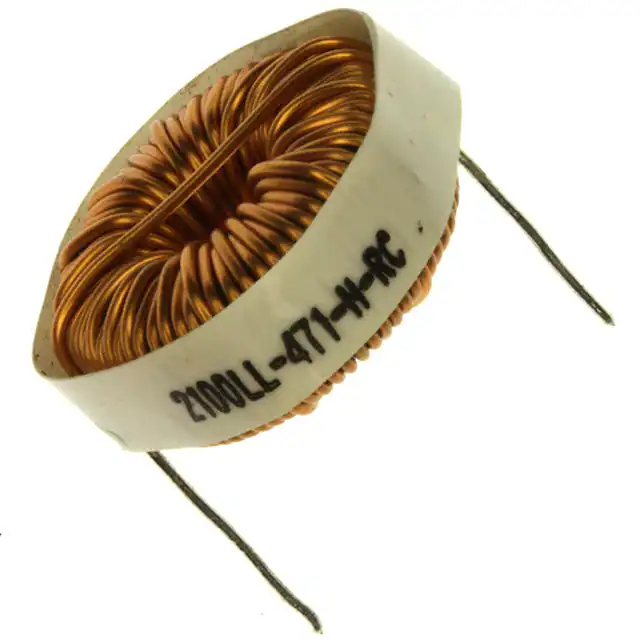

2100LL-471-H-RCFIXED IND 470UH 2.3A 124 MOHM TH |
213 |
|
规格书 |
2100LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 470 µH | ±15% | 2.3 A | - | Shielded | 124mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia (21.84mm) | 0.450" (11.43mm) |
|
1537-76JFIXED IND 100UH 151MA 4.5 OHM TH |
8,902 |
|
规格书 |
Military, MIL-PRF-M15305, MS90538 | Axial | Tape & Reel (TR) | Active | - | Iron | 100 µH | ±5% | 151 mA | - | Unshielded | 4.5Ohm Max | 50 @ 2.5MHz | 9.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
IHLP6767GZER330M11FIXED IND 33UH 10.7A 37 MOHM SMD |
3,198 |
|
规格书 |
IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 10.7 A | 9A | Shielded | 37mOhm Max | - | 4.8MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
74439346100FIXED IND 10UH 5A 26.5 MOHM SMD |
4,185 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 5 A | 7.6A | Shielded | 26.5mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
74439346047FIXED IND 4.7UH 7.4A 13MOHM SMD |
1,001 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 7.4 A | 14.7A | Shielded | 13mOhm | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
74439346068FIXED IND 6.8UH 6.5A 17.6MOHM SM |
696 |
|
规格书 |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 6.5 A | 10A | Shielded | 17.6mOhm | - | 21.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
PQ2614BHA-100KFIXED IND 10UH 30A 1.9 MOHM SMD |
5,646 |
|
规格书 |
PQ2614BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 30 A | 21.5A | Shielded | 1.9mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.630" (16.00mm) |
|
784325100WE-HCIA SMT FLAT WIRE HIGH CURRE |
746 |
|
规格书 |
WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 7.2 A | 10.3A | Shielded | 23.1mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.182" (4.63mm) |
|
|
IHLP6767GZER2R2M5AFIXED IND 2.2UH 38.5A 2.41 MOHM |
1,322 |
|
规格书 |
IHLP-6767GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 38.5 A | 38A | Shielded | 2.41mOhm Max | - | 19.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|

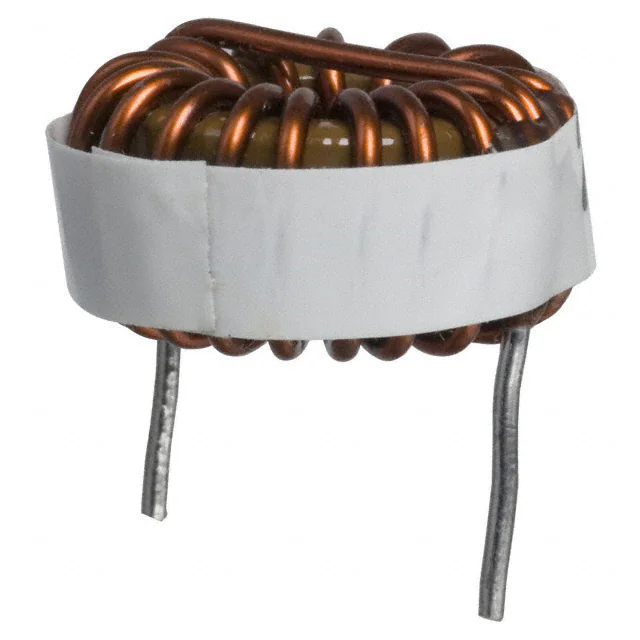

2218-H-RCFIXED IND 330UH 3.3A 100 MOHM TH |
255 |
|
规格书 |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 330 µH | ±15% | 3.3 A | - | Shielded | 100mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|

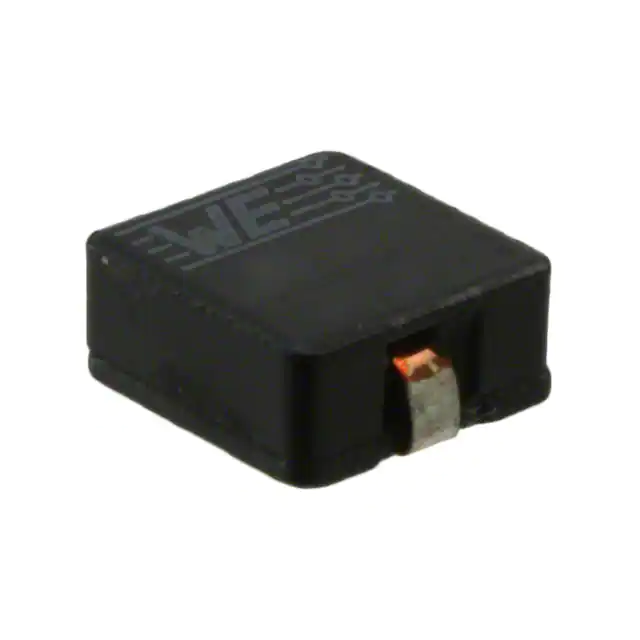

744325120FIXED IND 1.2UH 20A 1.8 MOHM SMD |
6,851 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 20 A | 25A | Shielded | 1.8mOhm | - | 75MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1050 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.197" (5.00mm) |
|
|
7443251000FIXED IND 10UH 7.2A 16.3MOHM SMD |
5,987 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 7.2 A | 8.5A | Shielded | 16.3mOhm | - | 21MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1050 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.197" (5.00mm) |
|

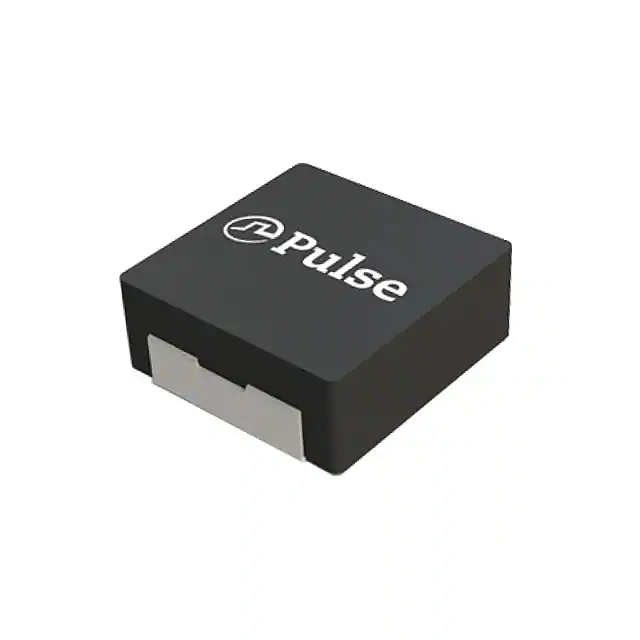

PA4344.104NLTFIXED IND 100UH 5.3A 118MOHM SMD |
4,261 |
|
规格书 |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | - | 5.3 A | 6.5A | Shielded | 118mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
744325780FIXED IND 7.8UH 8A 13.6 MOHM SMD |
1,703 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 7.8 µH | ±20% | 8 A | 9.5A | Shielded | 13.6mOhm | - | 23MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1050 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.197" (5.00mm) |
|
|
744325550FIXED IND 5.5UH 10A 10.3MOHM SMD |
1,349 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.5 µH | ±20% | 10 A | 12A | Shielded | 10.3mOhm | - | 30MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1050 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.197" (5.00mm) |
|
|
744325330FIXED IND 3.3UH 12A 5.9 MOHM SMD |
190 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 12 A | 15A | Shielded | 5.9mOhm | - | 54MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1050 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.197" (5.00mm) |
|
|
PA4344.153NLTFIXED IND 15UH 12.5A 20.5MOHM SM |
3,599 |
|
规格书 |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | - | 12.5 A | 23A | Shielded | 20.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
|
IHLP6767GZER470M11FIXED IND 47UH 8.7A 42.7MOHM SMD |
1,813 |
|
规格书 |
IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 8.7 A | 8.6A | Shielded | 42.7mOhm Max | - | 4.1MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
IHLP6767GZER100M01FIXED IND 10UH 16.5A 12 MOHM SMD |
1,063 |
|
规格书 |
IHLP-6767GZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 16.5 A | 25A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
