购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

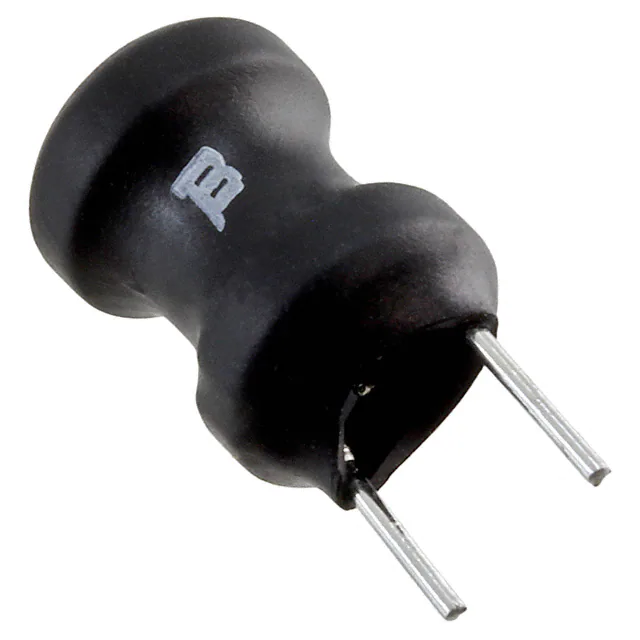

PT12120SLFIXED IND 600UH 200MA 4 OHM TH Bourns Inc. |
4,000 |
|
规格书 |
PT121 | Radial, Vertical Cylinder | Bulk | Obsolete | Wirewound | - | 600 µH | ±10% | 200 mA | - | Unshielded | 4Ohm Max | 80 @ 796kHz | 1.6MHz | - | -20°C ~ 80°C | 796 kHz | - | Through Hole | - | 0.400" Dia (10.15mm) | 0.500" (12.70mm) |
|
|
PT12130SLFIXED IND 4.7MH 50MA 18 OHM TH Bourns Inc. |
1,837 |
|
规格书 |
PT121 | Radial, Vertical Cylinder | Bulk | Obsolete | Wirewound | - | 4.7 mH | ±10% | 50 mA | - | Unshielded | 18Ohm Max | 90 @ 252kHz | 600kHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.400" Dia (10.15mm) | 0.500" (12.70mm) |
|
|
PT12133SJLFIXED IND 8.2MH 50MA 26 OHM TH Bourns Inc. |
4,187 |
|
规格书 |
PT121 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 8.2 mH | ±5% | 50 mA | - | Unshielded | 26Ohm Max | 90 @ 252kHz | 500kHz | - | -20°C ~ 80°C | 252 kHz | - | Through Hole | - | 0.400" Dia (10.15mm) | 0.500" (12.70mm) |
|

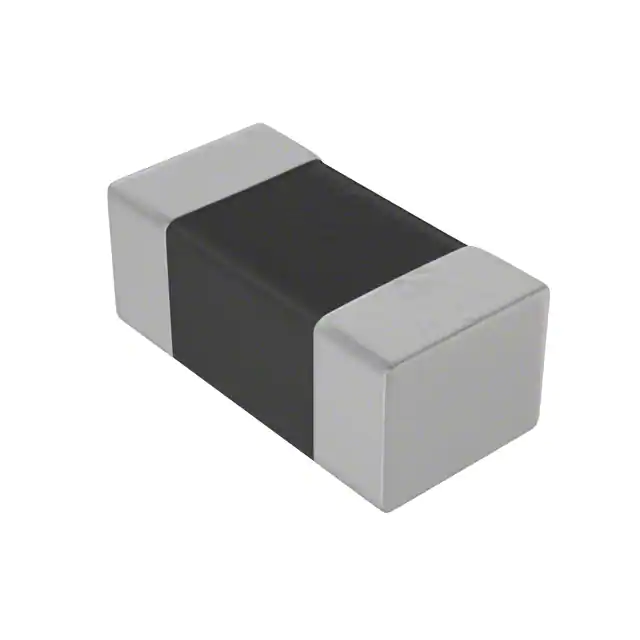

CS321613-120KFIXED IND 12UH 25MA 900 MOHM SMD Bourns Inc. |
2,425 |
|
规格书 |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 12 µH | ±10% | 25 mA | - | Shielded | 900mOhm Max | 65 @ 2MHz | 22MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-180KFIXED IND 18UH 25MA 1.4 OHM SMD Bourns Inc. |
2,562 |
|
规格书 |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 18 µH | ±10% | 25 mA | - | Shielded | 1.4Ohm Max | 45 @ 1MHz | 18MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-1R2KFIXED IND 1.2UH 100MA 300MOHM SM Bourns Inc. |
4,538 |
|
规格书 |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.2 µH | ±10% | 100 mA | - | Shielded | 300mOhm Max | 80 @ 10MHz | 65MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-1R5KFIXED IND 1.5UH 50MA 300MOHM SMD Bourns Inc. |
2,003 |
|
规格书 |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.5 µH | ±10% | 50 mA | - | Shielded | 300mOhm Max | 80 @ 10MHz | 60MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-1R8KFIXED IND 1.8UH 50MA 500MOHM SMD Bourns Inc. |
3,403 |
|
规格书 |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.8 µH | ±10% | 50 mA | - | Shielded | 500mOhm Max | 80 @ 10MHz | 55MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-270KFIXED IND 27UH 25MA 1.5 OHM SMD Bourns Inc. |
2,007 |
|
规格书 |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 27 µH | ±10% | 25 mA | - | Shielded | 1.5Ohm Max | 45 @ 1MHz | 14MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
|
|
CS321613-2R2KFIXED IND 2.2UH 50MA 600MOHM SMD Bourns Inc. |
2,825 |
|
规格书 |
CS321613 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.2 µH | ±10% | 50 mA | - | Shielded | 600mOhm Max | 80 @ 10MHz | 50MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) |
