购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDE6603-331MFIXED IND 330UH 160MA 3.8OHM SMD Bourns Inc. |
4,452 |
|
规格书 |
SDE6603 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 160 mA | 180mA | Unshielded | 3.8Ohm Max | - | 5MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SDE6603-470MFIXED IND 47UH 500MA 640MOHM SMD Bourns Inc. |
1,005 |
|
规格书 |
SDE6603 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 500 mA | 500mA | Unshielded | 640mOhm Max | - | 14MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SDE6603-4R7MFIXED IND 4.7UH 1.5A 90 MOHM SMD Bourns Inc. |
2,669 |
|
规格书 |
SDE6603 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.5 A | 1.5A | Unshielded | 90mOhm Max | - | 50MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SDE6603-680MFIXED IND 68UH 400MA 860MOHM SMD Bourns Inc. |
1,332 |
|
规格书 |
SDE6603 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 400 mA | 400mA | Unshielded | 860mOhm Max | - | 11MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SDE6603-681MFIXED IND 680UH 120MA 9.2OHM SMD Bourns Inc. |
1,652 |
|
规格书 |
SDE6603 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 120 mA | 140mA | Unshielded | 9.2Ohm Max | - | 3MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

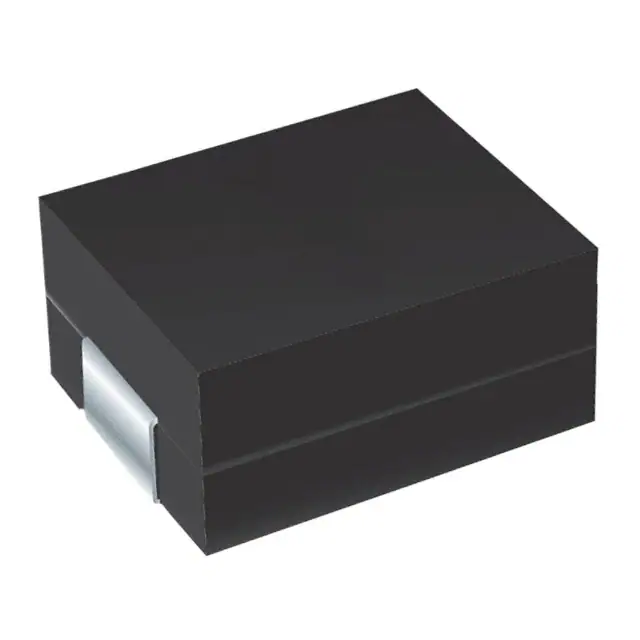

SRP8040-R10YFIXED IND 100NH 35A 650 MOHM SMD Bourns Inc. |
3,265 |
|
规格书 |
SRP8040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 nH | ±30% | 35 A | - | Shielded | 650mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.323" L x 0.240" W (8.20mm x 6.10mm) | 0.177" (4.50mm) |
|
|
SRP8040-R22YFIXED IND 220NH 25A 650 MOHM SMD Bourns Inc. |
2,368 |
|
规格书 |
SRP8040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 nH | ±30% | 25 A | - | Shielded | 650mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.323" L x 0.240" W (8.20mm x 6.10mm) | 0.177" (4.50mm) |
|
SRR0618-101MLFIXED IND 100UH 230MA 2.3OHM SMD Bourns Inc. |
1,045 |
|
规格书 |
SRR0618 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 230 mA | 270mA | Shielded | 2.3Ohm Max | 30 @ 100kHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.063" (1.60mm) |
|
|
SRR0618-3R3MLFIXED IND 3.3UH 1.4A 70 MOHM SMD Bourns Inc. |
1,121 |
|
规格书 |
SRR0618 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.4 A | 1.75A | Shielded | 70mOhm Max | 30 @ 100kHz | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.063" (1.60mm) |
|
|
SRR0618-470MLFIXED IND 47UH 360MA 1.1 OHM SMD Bourns Inc. |
1,470 |
|
规格书 |
SRR0618 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 360 mA | 440mA | Shielded | 1.1Ohm Max | 30 @ 100kHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.063" (1.60mm) |
