购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2300HT-181-HFIXED IND 180UH 7.2A 55 MOHM TH Bourns Inc. |
4,585 |
|
规格书 |
2300HT | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 180 µH | ±15% | 7.2 A | - | Shielded | 55mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|

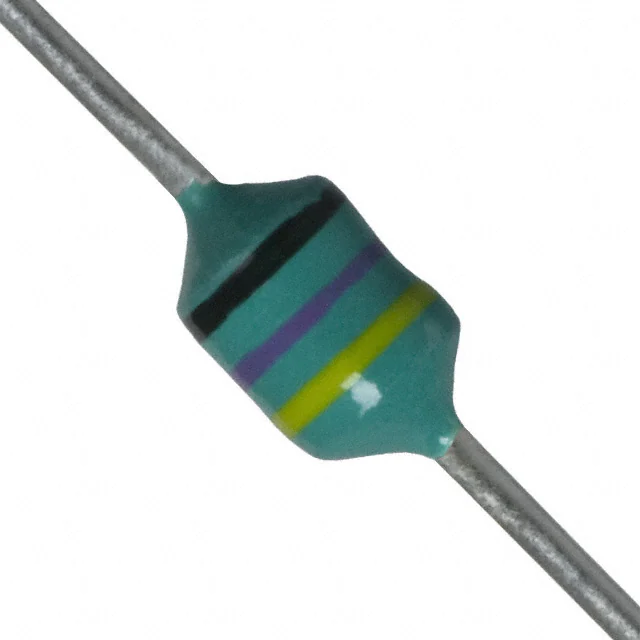

79F470KFIXED IND 47UH 70MA 5.8 OHM TH Bourns Inc. |
4,074 |
|
规格书 |
79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 70 mA | - | Unshielded | 5.8Ohm Max | 40 @ 2.5MHz | 12MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
|
PM74SH-100MFIXED IND 10UH 1.65A 70 MOHM SMD Bourns Inc. |
1,709 |
|
规格书 |
PM74SH | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.65 A | - | Shielded | 70mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|

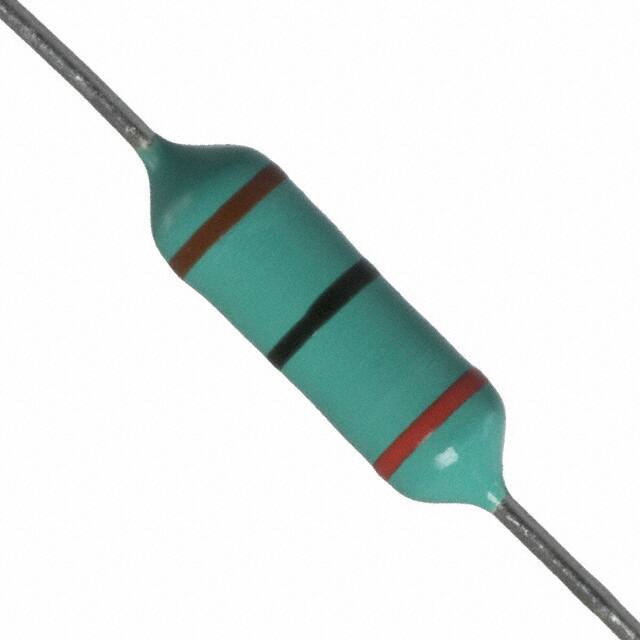

08450FIXED INDUCTOR TH Bourns Inc. |
1,298 |
|
- |
- | Axial | Bulk | Obsolete | - | - | - | - | - | - | Unshielded | - | - | - | - | - | - | - | Through Hole | - | - | - |
|
2100LL-4R7-V-RCFIXED IND 4.7UH 14A 3 MOHM TH Bourns Inc. |
4,264 |
|
规格书 |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 4.7 µH | ±20% | 14 A | - | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-680-V-RCFIXED IND 68UH 4.7A 30 MOHM TH Bourns Inc. |
4,820 |
|
规格书 |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 68 µH | ±15% | 4.7 A | - | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-820-V-RCFIXED IND 82UH 4.6A 32 MOHM TH Bourns Inc. |
2,308 |
|
规格书 |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 82 µH | ±15% | 4.6 A | - | Shielded | 32mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-181-V-RCFIXED IND 180UH 3.7A 48 MOHM TH Bourns Inc. |
4,083 |
|
规格书 |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 180 µH | ±15% | 3.7 A | - | Shielded | 48mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-471-V-RCFIXED IND 470UH 2.3A 124 MOHM TH Bourns Inc. |
4,490 |
|
规格书 |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 470 µH | ±15% | 2.3 A | - | Shielded | 124mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-102-V-RCFIXED IND 1MH 1.5A 284 MOHM TH Bourns Inc. |
1,204 |
|
规格书 |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 1 mH | ±15% | 1.5 A | - | Shielded | 284mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
