购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLB0913-102KFIXED IND 1MH 350MA 2.9 OHM TH Bourns Inc. |
8,921 |
|
规格书 |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 350 mA | 290mA | Unshielded | 2.9Ohm | 50 @ 252kHz | 1.3MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
SRP2512A-R47MFIXED IND 470NH 4.6A 25 MOHM SMD Bourns Inc. |
3,564 |
|
规格书 |
SRP2512A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 4.6 A | 5.3A | Shielded | 25mOhm Max | 39 @ 1MHz | 129MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
SRP2512A-2R2MFIXED IND 2.2UH 2.27A 98MOHM SMD Bourns Inc. |
1,797 |
|
规格书 |
SRP2512A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 2.27 A | 3A | Shielded | 98mOhm Max | 39 @ 1MHz | 62MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SRN6045TA-101MFIXED IND 100UH 920MA 456MOHM SM Bourns Inc. |
65,488 |
|
规格书 |
SRN6045TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 920 mA | 1.33A | Shielded | 456mOhm | 15 @ 1MHz | 8.5MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SRN6045TA-470MFIXED IND 47UH 1.6A 200 MOHM SMD Bourns Inc. |
46,764 |
|
规格书 |
SRN6045TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.6 A | 2A | Shielded | 200mOhm | 15 @ 1MHz | 12MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SRN6045TA-4R7MFIXED IND 4.7UH 4.5A 26 MOHM SMD Bourns Inc. |
23,721 |
|
规格书 |
SRN6045TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.5 A | 6.8A | Shielded | 26mOhm | 15 @ 1MHz | 40MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SRN6045TA-680MFIXED IND 68UH 1.1A 305 MOHM SMD Bourns Inc. |
22,469 |
|
规格书 |
SRN6045TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.1 A | 1.6A | Shielded | 305mOhm | 15 @ 1MHz | 10MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
SDR0403-270KLFIXED IND 27UH 710MA 520MOHM SMD Bourns Inc. |
21,564 |
|
规格书 |
SDR0403 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 710 mA | 1A | Unshielded | 520mOhm Max | 23 @ 2.52MHz | 17MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

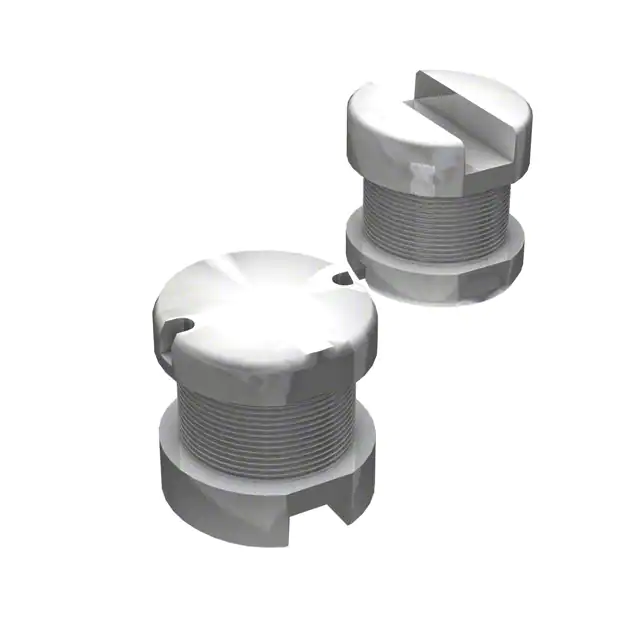

SDR0604-220YLFIXED IND 22UH 1.1A 190 MOHM SMD Bourns Inc. |
17,849 |
|
规格书 |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±15% | 1.1 A | 1.4A | Unshielded | 190mOhm Max | 30 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
|
|
SDR0604-101KLFIXED IND 100UH 520MA 700MOHM SM Bourns Inc. |
17,424 |
|
规格书 |
SDR0604 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 520 mA | 680mA | Unshielded | 700mOhm Max | 20 @ 796kHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.189" (4.80mm) |
