购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HFI-160808-56NJFIXED IND 56NH 500MA 750MOHM SMD Jaro Components Inc. |
28,000 |
|
规格书 |
HFI | 0603 (1608 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 500 mA | - | Unshielded | 750mOhm Max | 12 @ 100MHz | 900MHz | - | - | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
HFI-201209-2N2SFIXED IND 2.2NH 300MA 100MOHM SM Jaro Components Inc. |
14,816 |
|
规格书 |
HFI | 0805 (2012 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ceramic | 2.2 nH | ±0.3nH | 300 mA | - | Unshielded | 100mOhm Max | 10 @ 100MHz | 4GHz | - | - | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
HFI-160808-33NJFIXED IND 33NH 600MA 600MOHM SMD Jaro Components Inc. |
13,803 |
|
规格书 |
HFI | 0603 (1608 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ceramic | 33 nH | ±5% | 600 mA | - | Unshielded | 600mOhm Max | 12 @ 100MHz | 1.2GHz | - | - | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
HFI-160808-2N2SFIXED IND 2.2NH 1A 100 MOHM SMD Jaro Components Inc. |
4,118 |
|
规格书 |
HFI | 0603 (1608 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ceramic | 2.2 nH | ±0.3nH | 1 A | - | Unshielded | 100mOhm Max | 10 @ 100MHz | 6GHz | - | - | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
HFI-160808-12NJFIXED IND 12NH 600MA 350 MOHM Jaro Components Inc. |
3,039 |
|
规格书 |
HFI-160808 | 0603 (1608 Metric) | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | Ceramic | 12 nH | ±5% | 600 mA | - | Unshielded | 350mOhm Max | 12 @ 100MHz | 2.6GHz | - | - | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
HFI-160808-39NJFIXED IND 39NH 500MA 650 MOHM Jaro Components Inc. |
2,237 |
|
规格书 |
HFI-160808 | 0603 (1608 Metric) | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | Ceramic | 39 nH | ±5% | 500 mA | - | Unshielded | 650mOhm Max | 12 @ 100MHz | 1.1GHz | - | - | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
HFI-201209-1N8SFIXED IND 1.8NH 300MA 100MOHM SM Jaro Components Inc. |
20,950 |
|
规格书 |
HFI | 0805 (2012 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ceramic | 1.8 nH | ±0.3nH | 300 mA | - | Unshielded | 100mOhm Max | 10 @ 100MHz | 4GHz | - | - | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
|
|
HFI-160808-18NJFIXED IND 18NH 600MA 450 MOHM Jaro Components Inc. |
4,600 |
|
规格书 |
HFI | 0603 (1608 Metric) | Cut Tape (CT) | Discontinued at Digi-Key | Wirewound | Ceramic | 18 nH | ±5% | 600 mA | - | Unshielded | 450mOhm Max | 12 @ 100MHz | 2GHz | - | - | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
HFI-201209-R15JFIXED IND 150NH 300MA 1 OHM SMD Jaro Components Inc. |
9,662 |
|
规格书 |
HFI | 0805 (2012 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 300 mA | - | Unshielded | 1Ohm Max | 13 @ 50MHz | 500MHz | - | - | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.043" (1.10mm) |
.jpg)
|

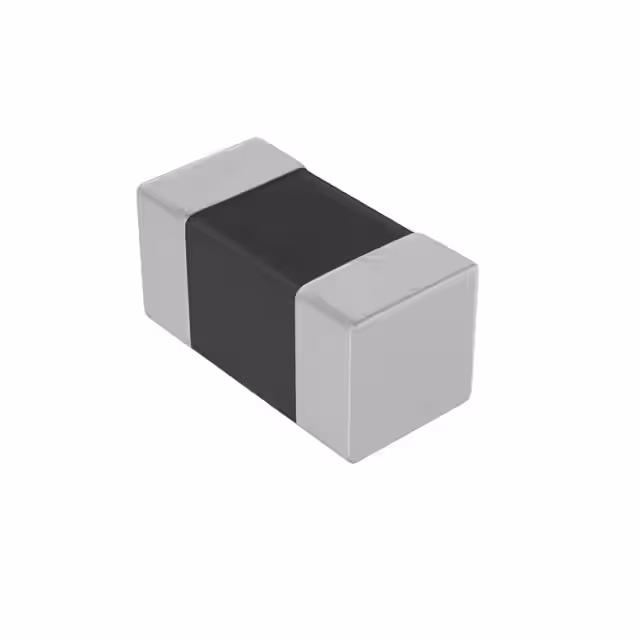

HFI-100505-10NJFIXED IND 10NH 300MA 420MOHM SMD Jaro Components Inc. |
20,194 |
|
规格书 |
HFI | 0402 (1005 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 300 mA | - | Unshielded | 420mOhm Max | 8 @ 100MHz | 3.2GHz | - | - | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
