购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS40126R8M-10FIXED IND 6.8UH 840MA 198MOHM SM Laird-Signal Integrity Products |
2,702 |
|
规格书 |
TYS4012 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 840 mA | 850mA | Shielded | 198mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
TYS40123R3N-10FIXED IND 3.3UH 1.12A 110MOHM SM Laird-Signal Integrity Products |
2,839 |
|
规格书 |
TYS4012 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±30% | 1.12 A | 1.72A | Shielded | 110mOhm | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
TYS40125R6N-10FIXED IND 5.6UH 1A 140 MOHM SMD Laird-Signal Integrity Products |
1,087 |
|
规格书 |
TYS4012 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±30% | 1 A | 1A | Shielded | 140mOhm | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
TYS252012L6R8M-10FIXED IND 6.8UH 690MA 536MOHM SM Laird-Signal Integrity Products |
1,583 |
|
规格书 |
TYS252012L | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 690 mA | 980mA | Shielded | 536mOhm Max | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252010L1R5N-10FIXED IND 1.5UH 1.3A 182MOHM SMD Laird-Signal Integrity Products |
1,683 |
|
规格书 |
TYS252010L | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±30% | 1.3 A | 1.8A | Shielded | 182mOhm Max | - | 79MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252010L3R3M-10FIXED IND 3.3UH 900MA 328MOHM SM Laird-Signal Integrity Products |
2,665 |
|
规格书 |
TYS252010L | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 900 mA | 1.05A | Shielded | 328mOhm Max | - | 48MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252010LR47N-10FIXED IND 470NH 2.35A 56MOHM SMD Laird-Signal Integrity Products |
3,279 |
|
规格书 |
TYS252010L | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±30% | 2.35 A | 2.5A | Shielded | 56mOhm Max | - | 202MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS252012L1R5M-10FIXED IND 1.5UH 1.4A 136MOHM SMD Laird-Signal Integrity Products |
3,399 |
|
规格书 |
TYS252012L | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 1.4 A | 2.51A | Shielded | 136mOhm Max | - | 97MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |

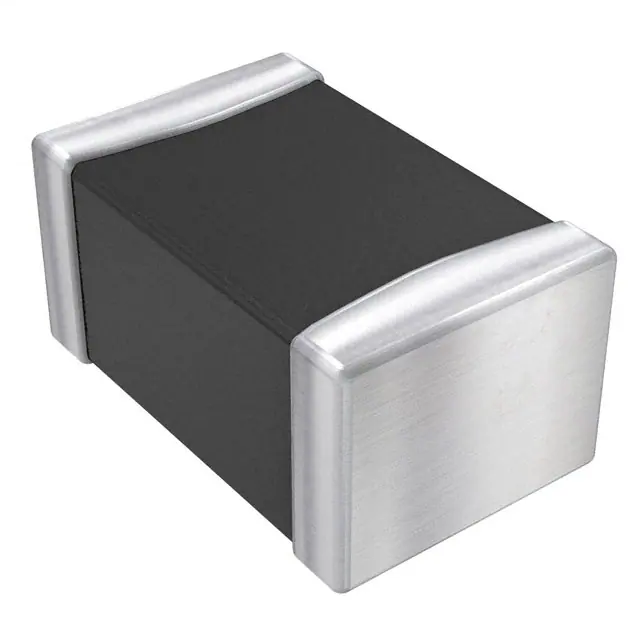

-Height-1,00.jpg)
|
CPI0805E3R3R-10FIXED IND 3.3UH 500MA 220MOHM SM Laird-Signal Integrity Products |
4,983 |
|
规格书 |
CPI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.3 µH | ±20% | 500 mA | - | Unshielded | 220mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CPI0805F2R2R-10FIXED IND 2.2UH 600MA 250MOHM SM Laird-Signal Integrity Products |
2,710 |
|
规格书 |
CPI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 µH | ±20% | 600 mA | - | Unshielded | 250mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
