购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TYS30152R2N-10FIXED IND 2.2UH 1.6A 60 MOHM SMD Laird-Signal Integrity Products |
3,744 |
|
规格书 |
TYS3015 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 1.6 A | 1.6A | Shielded | 60mOhm Max | - | 86MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" (1.70mm) |
|
TYA4012R68M-10FIXED IND 680NH 3.25A 55MOHM SMD Laird-Signal Integrity Products |
17,498 |
|
规格书 |
TYA4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 3.25 A | 5.2A | Shielded | 55mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.065" (1.65mm) |
|
|
TYA40122R2M-10FIXED IND 2.2UH 2.5A 90 MOHM SMD Laird-Signal Integrity Products |
16,861 |
|
规格书 |
TYA4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.5 A | 2.8A | Shielded | 90mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.065" (1.65mm) |
|
|
TYA40121R5M-10FIXED IND 1.5UH 2.8A 75 MOHM SMD Laird-Signal Integrity Products |
13,814 |
|
规格书 |
TYA4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 2.8 A | 3.8A | Shielded | 75mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.065" (1.65mm) |
|
|
TYA4012100M-10FIXED IND 10UH 850MA 360MOHM SMD Laird-Signal Integrity Products |
9,452 |
|
规格书 |
TYA4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 850 mA | 1.55A | Shielded | 360mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.065" (1.65mm) |
|

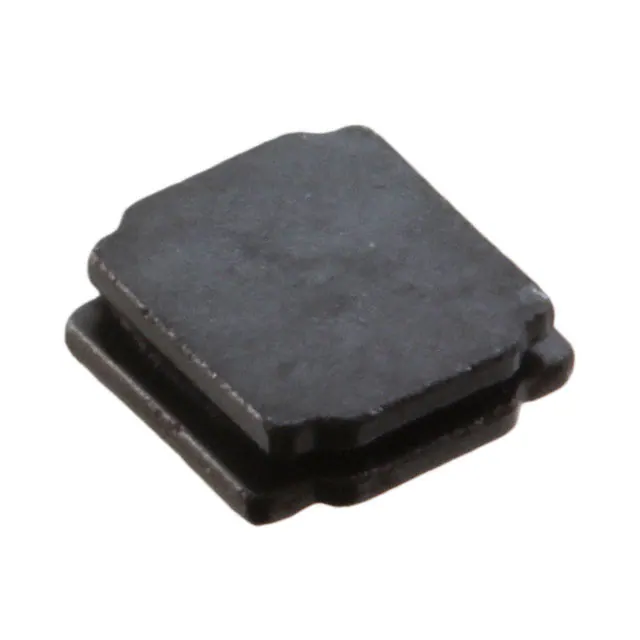

TYS3010220M-10FIXED IND 22UH 380MA 930MOHM SMD Laird-Signal Integrity Products |
3,970 |
|
规格书 |
TYS3010 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 380 mA | 350mA | Shielded | 930mOhm Max | - | 28MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
TYS40202R2N-10FIXED IND 2.2UH 1.85A 40MOHM SMD Laird-Signal Integrity Products |
3,984 |
|
规格书 |
TYS4020 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 1.85 A | 3.4A | Shielded | 40mOhm Max | - | 49MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|

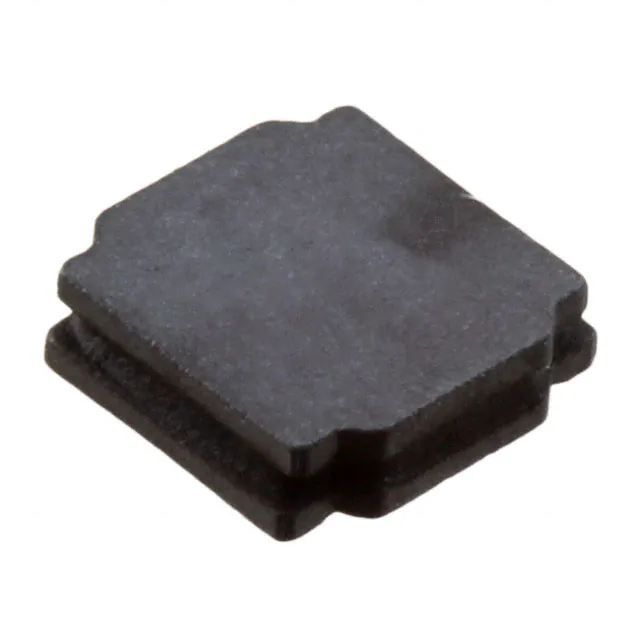

TYS4012101M-10FIXED IND 100UH 250MA 2.21OHM SM Laird-Signal Integrity Products |
18,682 |
|
规格书 |
TYS4012 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 250 mA | 250mA | Shielded | 2.21Ohm Max | - | 9.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
TYS50202R2N-10FIXED IND 2.2UH 2.9A 32 MOHM SMD Laird-Signal Integrity Products |
1,358 |
|
规格书 |
TYS5020 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 2.9 A | 3.2A | Shielded | 32mOhm Max | - | 57MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
TYS60202R2N-10FIXED IND 2.2UH 2.75A 28MOHM SMD Laird-Signal Integrity Products |
4,332 |
|
规格书 |
TYS6020 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 2.75 A | 3.75A | Shielded | 28mOhm Max | - | 61MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
