购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ3218-3R3-70-TFIXED IND 3.3UH 70A 1.1 MOHM TH Standex-Meder Electronics |
207 |
|
规格书 |
PQ | Nonstandard | Bulk | Active | Planar | Ferrite | 3.3 µH | - | 70 A | 80A | Unshielded | 1.1mOhm | - | - | - | -30°C ~ 125°C | - | - | Through Hole | - | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.728" (18.50mm) |
|
PQ3218-6R0-50-TFIXED IND 6UH 50A 1.5 MOHM TH Standex-Meder Electronics |
802 |
|
规格书 |
PQ | Nonstandard | Bulk | Active | Planar | Ferrite | 6 µH | - | 50 A | 57A | Unshielded | 1.5mOhm | - | - | - | -30°C ~ 125°C | - | - | Through Hole | - | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.728" (18.50mm) |
|

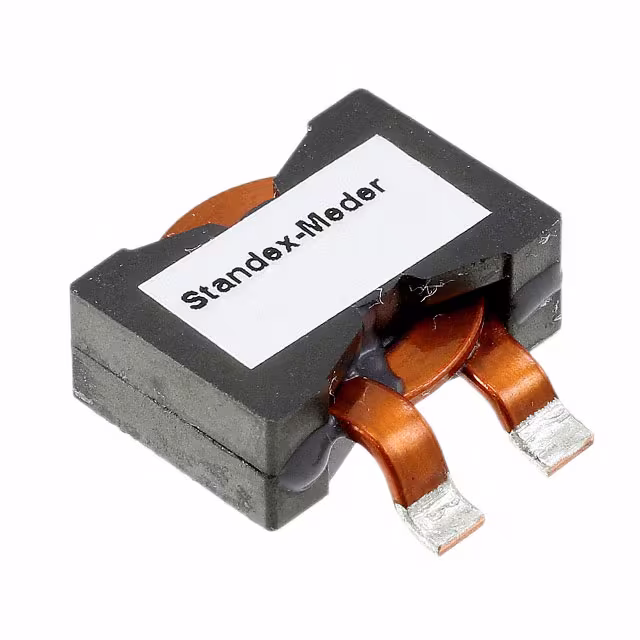

PQ2007-0R4-70-GFIXED IND 400NH 70A 0.7 MOHM SMD Standex-Meder Electronics |
4,960 |
|
规格书 |
PQ | Nonstandard | Bulk | Obsolete | Planar | Ferrite | 400 nH | - | 70 A | 83A | Unshielded | 0.7mOhm | - | - | - | -30°C ~ 125°C | - | - | Surface Mount | - | 0.837" L x 0.551" W (21.25mm x 14.00mm) | 0.286" (7.26mm) |
|

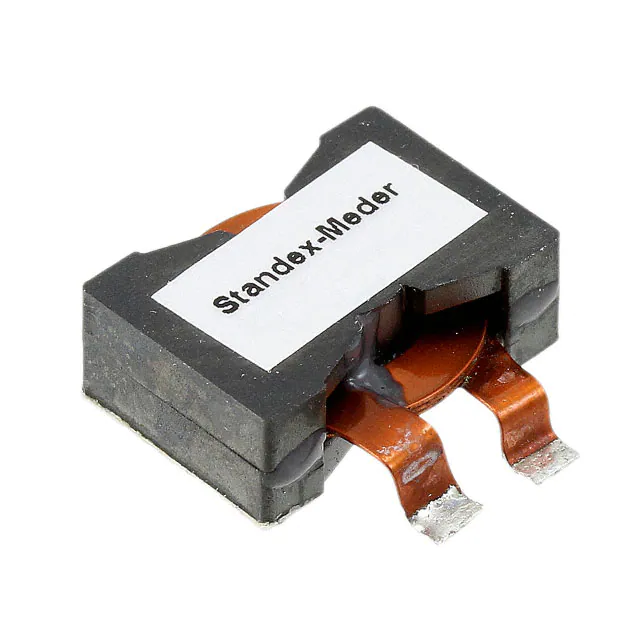

PQ2007-2R2-25-GFIXED IND 2.2UH 25A 3.5 MOHM SMD Standex-Meder Electronics |
4,210 |
|
规格书 |
PQ | Nonstandard | Bulk | Obsolete | Planar | Ferrite | 2.2 µH | - | 25 A | 32A | Unshielded | 3.5mOhm | - | - | - | -30°C ~ 125°C | - | - | Surface Mount | - | 0.837" L x 0.551" W (21.25mm x 14.00mm) | 0.286" (7.26mm) |
|

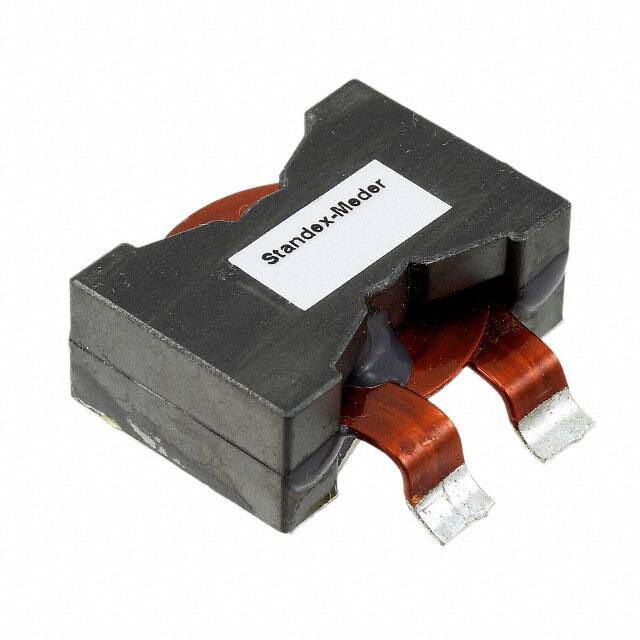

PQ3213-0R9-70-GFIXED IND 900NH 70A 1 MOHM SMD Standex-Meder Electronics |
2,589 |
|
规格书 |
PQ | Nonstandard | Bulk | Obsolete | Planar | Ferrite | 900 nH | - | 70 A | 110A | Unshielded | 1mOhm | - | - | - | -30°C ~ 125°C | - | - | Surface Mount | - | 1.043" L x 0.748" W (26.50mm x 19.00mm) | 0.520" (13.20mm) |
|
PQ3218-3R3-90-TFIXED IND 3.3UH 70A 1.1 MOHM TH Standex-Meder Electronics |
3,315 |
|
规格书 |
PQ | Nonstandard | Bulk | Active | Planar | Ferrite | 3.3 µH | - | 70 A | 80A | Unshielded | 1.1mOhm | - | - | - | -30°C ~ 125°C | - | - | Through Hole | - | 1.260" L x 0.886" W (32.00mm x 22.50mm) | 0.728" (18.50mm) |
|

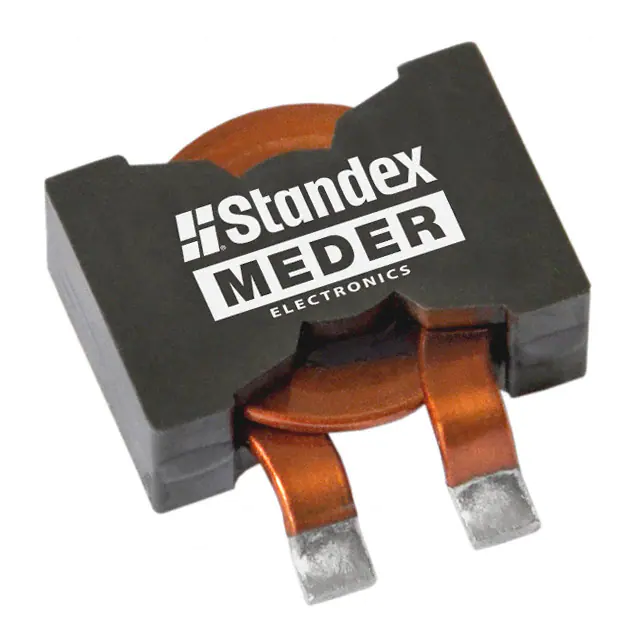

PQ2006-1R0-30-GFIXED IND 1UH 30A 1 MOHM SMD Standex-Meder Electronics |
3,810 |
|
规格书 |
PQ | Nonstandard | Bulk | Obsolete | Planar | Ferrite | 1 µH | - | 30 A | 39A | Unshielded | 1mOhm | - | - | - | -30°C ~ 125°C | - | - | Surface Mount | - | 0.837" L x 0.551" W (21.25mm x 14.00mm) | 0.286" (7.26mm) |
|

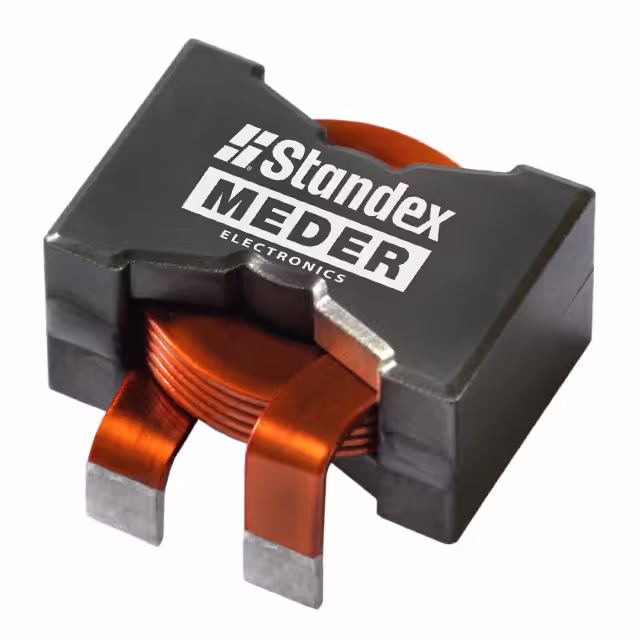

PQ2613-1R0-80-GFIXED IND 1UH 80A 1.2 MOHM SMD Standex-Meder Electronics |
4,105 |
|
规格书 |
PQ | Nonstandard | Bulk | Obsolete | Planar | Ferrite | 1 µH | - | 80 A | 120A | Unshielded | 1.2mOhm | - | - | - | -30°C ~ 125°C | - | - | Surface Mount | - | 1.043" L x 0.748" W (26.50mm x 19.00mm) | 0.520" (13.20mm) |
