购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
36502A27NJTDGFIXED IND 27NH 500MA 250MOHM SMD TE Connectivity Passive Product |
6,635 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 27 nH | ±5% | 500 mA | - | Unshielded | 250mOhm Max | 55 @ 500MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36501J3N3JTDGFIXED IND 3.3NH 700MA 80MOHM SMD TE Connectivity Passive Product |
6,417 |
|
规格书 |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.3 nH | ±5% | 700 mA | - | Unshielded | 80mOhm Max | 22 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36502A1R8JTDGFIXED IND 1.8UH 170MA 2.5OHM SMD TE Connectivity Passive Product |
6,403 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.8 µH | ±5% | 170 mA | - | Unshielded | 2.5Ohm Max | 16 @ 7.9MHz | 80MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36502AR82JTDGFIXED IND 820NH 180MA 2.35OHM SM TE Connectivity Passive Product |
6,193 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 820 nH | ±5% | 180 mA | - | Unshielded | 2.35Ohm Max | 23 @ 50MHz | 200MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|

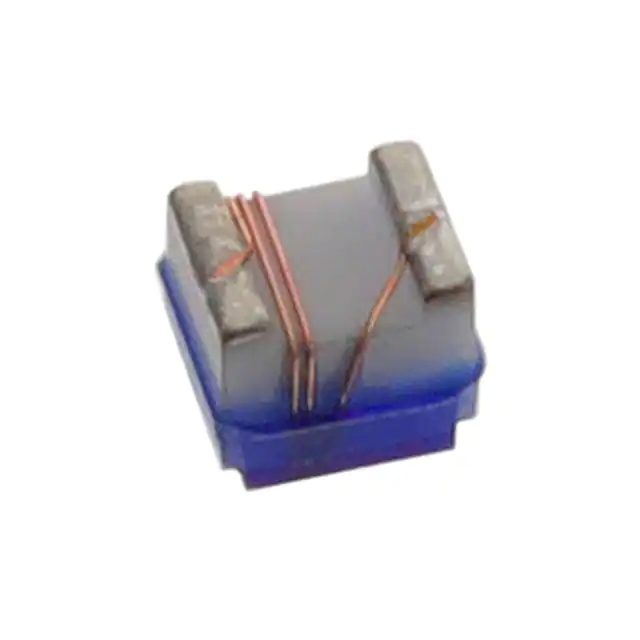

36502C27NJTDGFIXED IND 27NH 1A 130 MOHM SMD TE Connectivity Passive Product |
5,996 |
|
规格书 |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 27 nH | ±5% | 1 A | - | Unshielded | 130mOhm Max | 55 @ 350MHz | 1.6GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
36501J5N6JTDGFIXED IND 5.6NH 700MA 170MOHM SM TE Connectivity Passive Product |
5,899 |
|
规格书 |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 5.6 nH | ±5% | 700 mA | - | Unshielded | 170mOhm Max | 20 @ 250MHz | 5.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
36502AR27JTDGFIXED IND 270NH 350MA 1 OHM SMD TE Connectivity Passive Product |
5,667 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 270 nH | ±5% | 350 mA | - | Unshielded | 1Ohm Max | 48 @ 250MHz | 650MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
36502A3N3JTDGFIXED IND 3.3NH 600MA 80MOHM SMD TE Connectivity Passive Product |
5,300 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.3 nH | ±5% | 600 mA | - | Unshielded | 80mOhm Max | 50 @ 1.5GHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|

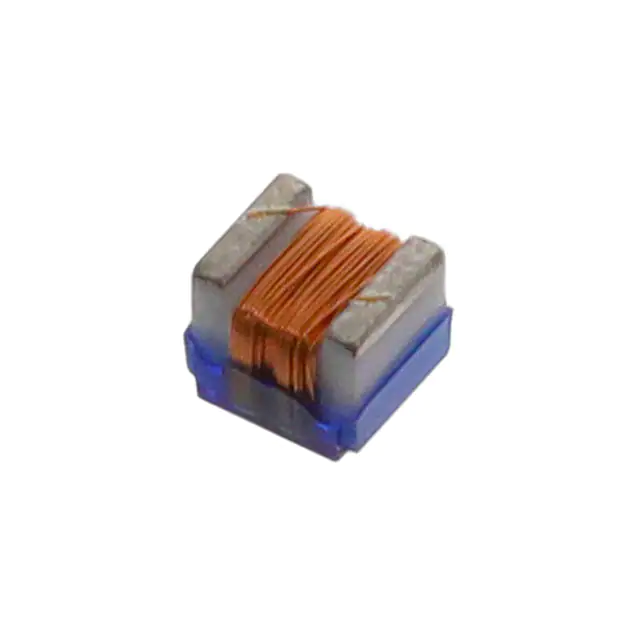

36502C3R9JTDGFIXED IND 3.9UH 260MA 3.6OHM SMD TE Connectivity Passive Product |
4,970 |
|
规格书 |
3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 3.9 µH | ±5% | 260 mA | - | Unshielded | 3.6Ohm Max | 20 @ 25MHz | 100MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|

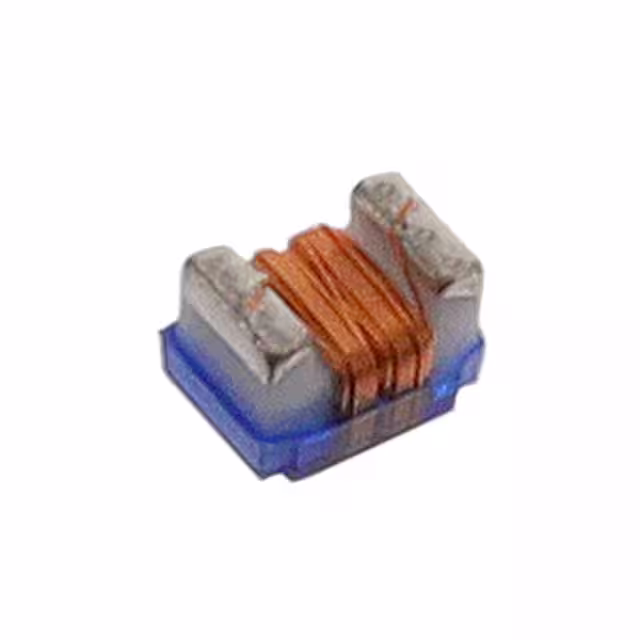

36502A1R5JTDGFIXED IND 1.5UH 170MA 2.5OHM SMD TE Connectivity Passive Product |
4,676 |
|
规格书 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.5 µH | ±5% | 170 mA | - | Unshielded | 2.5Ohm Max | 16 @ 25MHz | 100MHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
