| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

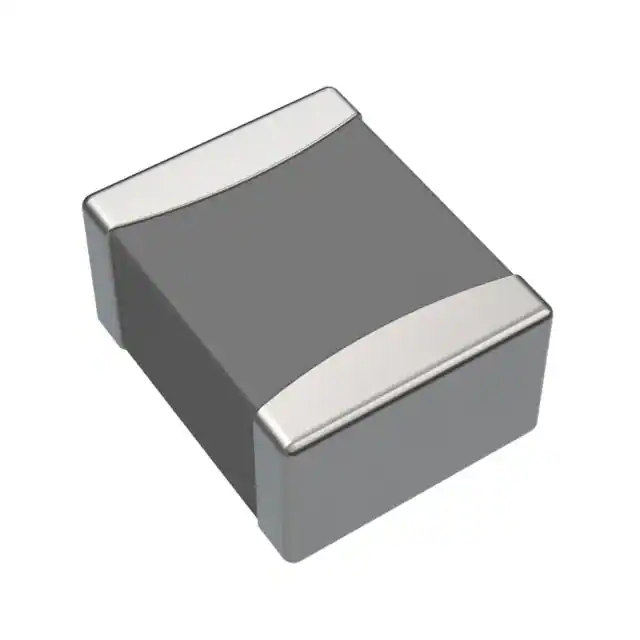

LPWI201610H1R0TFIXED IND 1UH 3.1A 45 MOHM SMD Littelfuse Inc. |
7,366 |
|
规格书 |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 3.1 A | 3.6A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LPWI201608H1R0TFIXED IND 1UH 3.2A 50 MOHM SMD Littelfuse Inc. |
5,983 |
|
规格书 |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 3.2 A | 3.6A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
.jpg)
|

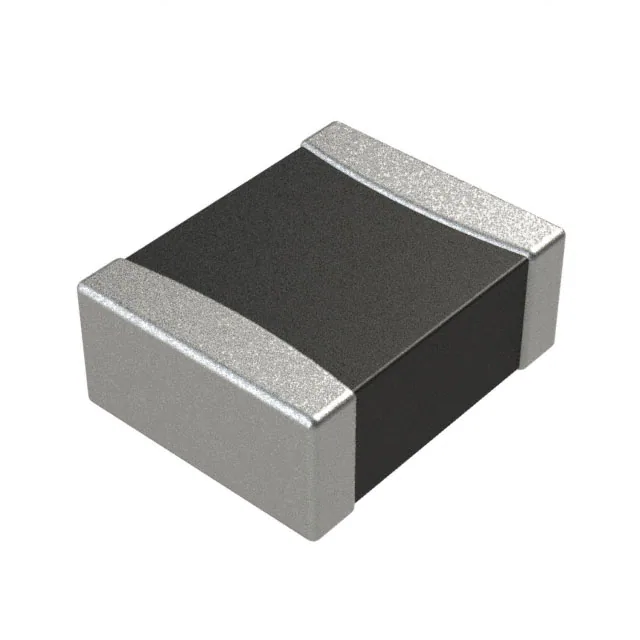

LPWI252010S1R0TFIXED IND 1UH 3.5A 50 MOHM SMD Littelfuse Inc. |
4,675 |
|
规格书 |
LPWI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 3.5 A | 3.8A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

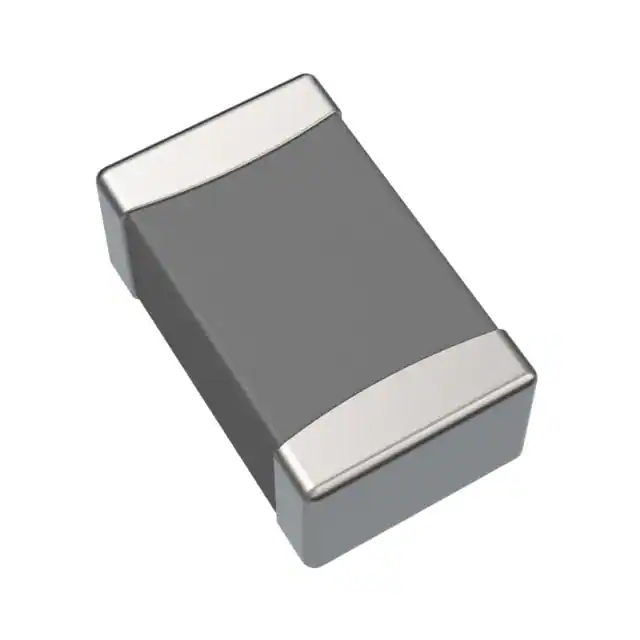

LPWI201210HR47TFIXED IND 470NH 4.3A 28MOHM SMD Littelfuse Inc. |
9,700 |
|
规格书 |
LPWI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 470 nH | ±20% | 4.3 A | 4.9A | Shielded | 28mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
LPWI201208S1R0TFIXED IND 1UH 2.7A 65 MOHM SMD Littelfuse Inc. |
5,137 |
|
规格书 |
LPWI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 2.7 A | 3.1A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
LPWI201610B1R0TFIXED IND 1UH 3.2A 46 MOHM SMD Littelfuse Inc. |
8,935 |
|
规格书 |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 3.2 A | 4A | Shielded | 46mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LPWI252010H1R0TFIXED IND 1UH 4.3A 45 MOHM SMD Littelfuse Inc. |
8,319 |
|
规格书 |
LPWI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 4.3 A | 4.1A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LPWI201610HR47TFIXED IND 470NH 4.2A 25 MOHM SMD Littelfuse Inc. |
5,943 |
|
规格书 |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 470 nH | ±20% | 4.2 A | 4.8A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LPWI201610H2R2TFIXED IND 2.2UH 2.4A 100MOHM SMD Littelfuse Inc. |
5,875 |
|
规格书 |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 2.2 µH | ±20% | 2.4 A | 2.5A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LPWI252010S2R2TFIXED IND 2.2UH 2.5A 110MOHM SMD Littelfuse Inc. |
2,727 |
|
规格书 |
LPWI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 2.2 µH | ±20% | 2.5 A | 2.5A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
