购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

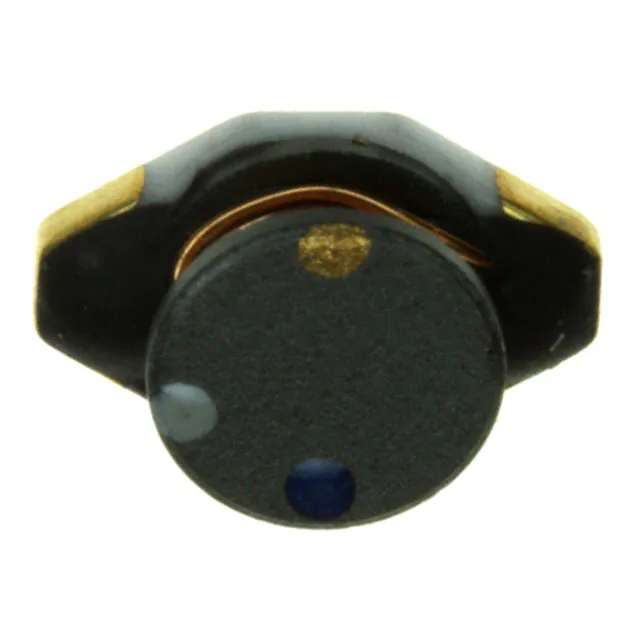

74455068FIXED IND 6.8UH 1.4A 130MOHM SMD Würth Elektronik |
1,743 |
|
规格书 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.4 A | 1.2A | Unshielded | 130mOhm Max | - | 29MHz | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|

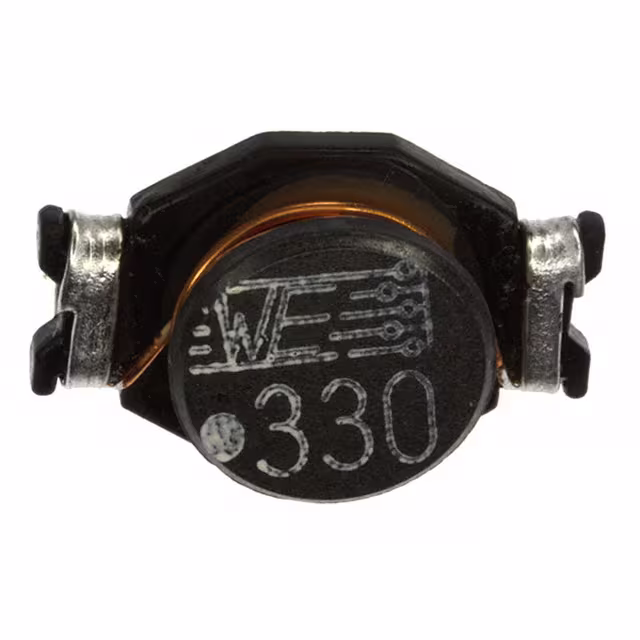

74457133FIXED IND 33UH 3.4A 70 MOHM SMD Würth Elektronik |
2,707 |
|
规格书 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±15% | 3.4 A | 5.5A | Unshielded | 70mOhm Max | - | 11.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
784777221FIXED IND 220UH 500MA 1.13OHM SM Würth Elektronik |
3,379 |
|
规格书 |
WE-PDA | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 220 µH | ±20% | 500 mA | 550mA | Shielded | 1.13Ohm Max | - | 3.9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.169" (4.30mm) |
|

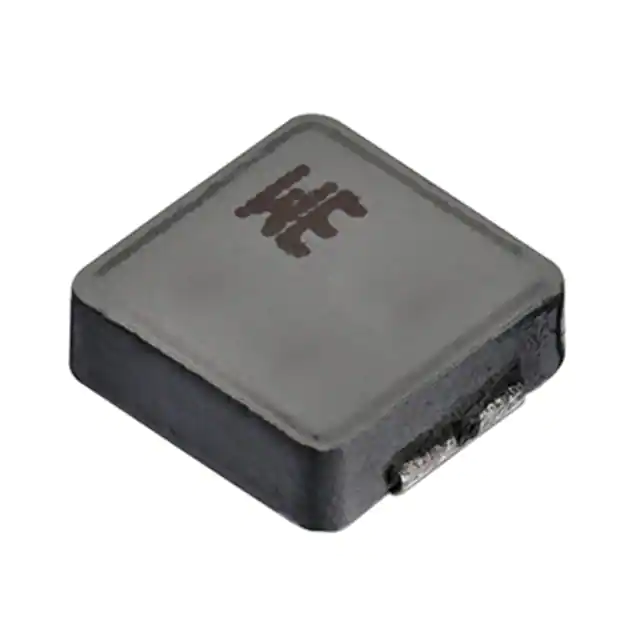

74437334012FIXED IND 1.2UH 5.2A 0.028OHM SM Würth Elektronik |
4,324 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.2 µH | ±20% | 5.2 A | 14A | Shielded | 28mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
7447471068FIXED IND 6.8UH 6.4A 13.9MOHM TH Würth Elektronik |
1,009 |
|
规格书 |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6.4 A | 5A | Shielded | 13.9mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
7843330820FIXED IND 8.2UH 7.2A 19.1MOHM SM Würth Elektronik |
1,591 |
|
规格书 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 7.2 A | 12.8A | Shielded | 19.1mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1011 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|

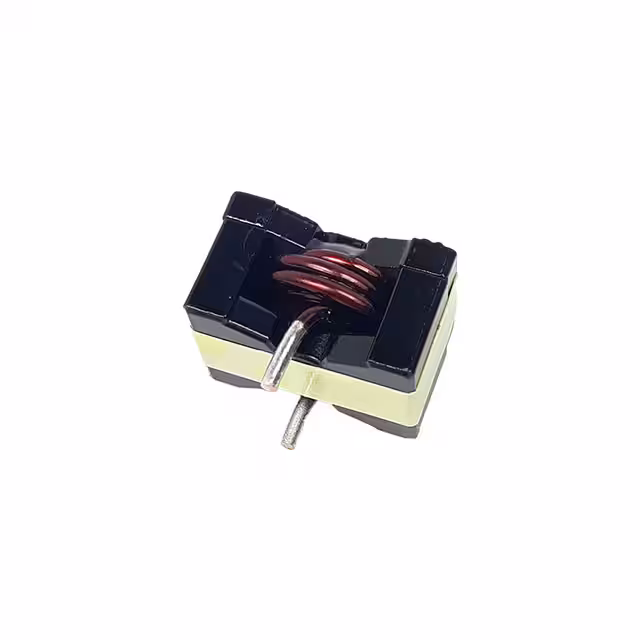

7443782012033FIXED IND 3.3UH 28.7A 2.4MOHM TH Würth Elektronik |
2,330 |
|
规格书 |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 3.3 µH | ±20% | 28.7 A | 43A | Shielded | 2.4mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|
7444013119100FIXED IND 10UH 11A 4.8 MOHM TH Würth Elektronik |
2,634 |
|
规格书 |
WE-HIDA | Nonstandard | Tray | Active | - | - | 10 µH | ±20% | 11 A | 58A | Unshielded | 4.8mOhm | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.378" (35.00mm) |
|

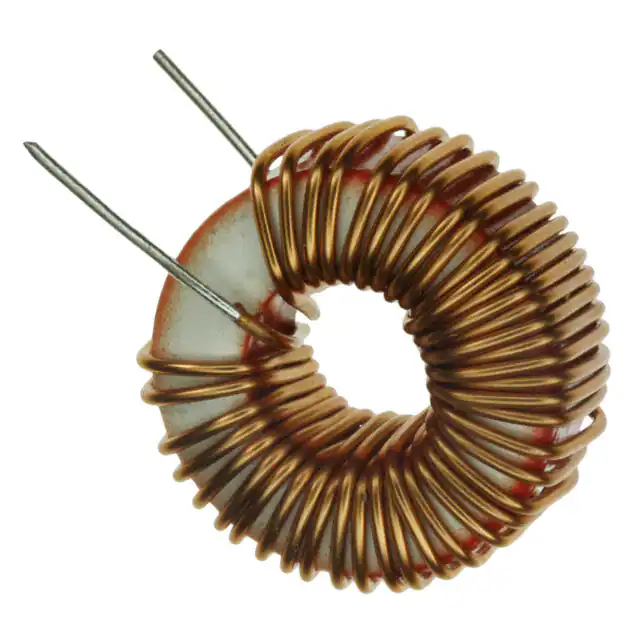

744138FIXED IND 727UH 3.5A 240 MOHM TH Würth Elektronik |
2,256 |
|
规格书 |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 727 µH | ±20% | 3.5 A | 1.4A | Unshielded | 240mOhm Max | - | 1.8MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.654" Dia x 0.591" W (42.00mm x 15.00mm) | - |
|

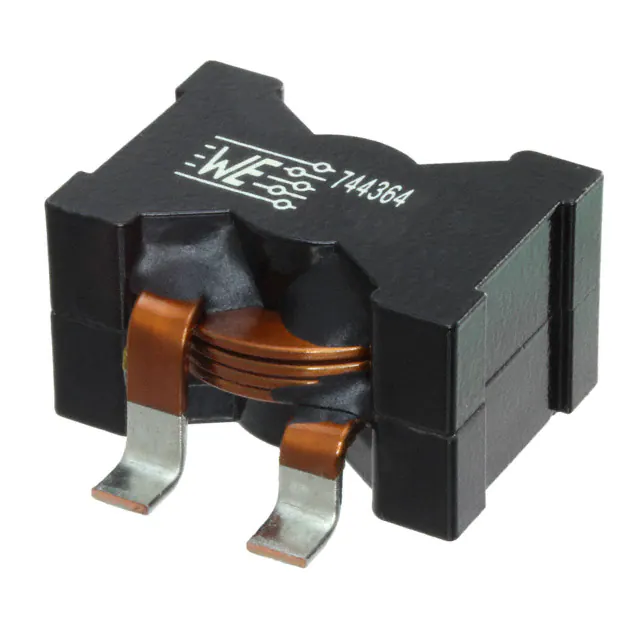

74436410680FIXED IND 6.8UH 36A 1.441MOHM SM Würth Elektronik |
3,744 |
|
规格书 |
WE-HCF | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 6.8 µH | ±15% | 36 A | 30A | Shielded | 1.441mOhm Max | - | 17.03MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2815 | 1.102" L x 0.764" W (28.00mm x 19.40mm) | 0.606" (15.40mm) |
