| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404043022AFIXED IND 2.2UH 3.83A 23MOHM SMD Würth Elektronik |
19,963 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.83 A | 2.28A | Shielded | 23mOhm | - | 104MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
|
74404043220AFIXED IND 22UH 1.11A 200MOHM SMD Würth Elektronik |
10,824 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.11 A | 700mA | Shielded | 200mOhm | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
|
74404043033AFIXED IND 3.3UH 3.23A 33MOHM SMD Würth Elektronik |
10,585 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.23 A | 1.75A | Shielded | 33mOhm | - | 75MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
|
74404043470AFIXED IND 47UH 710MA 492MOHM SMD Würth Elektronik |
7,105 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 710 mA | 450mA | Shielded | 492mOhm | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
|
74404043047AFIXED IND 4.7UH 2.3A 46MOHM SMD Würth Elektronik |
3,354 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.3 A | 1.43A | Shielded | 46mOhm | - | 61MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|

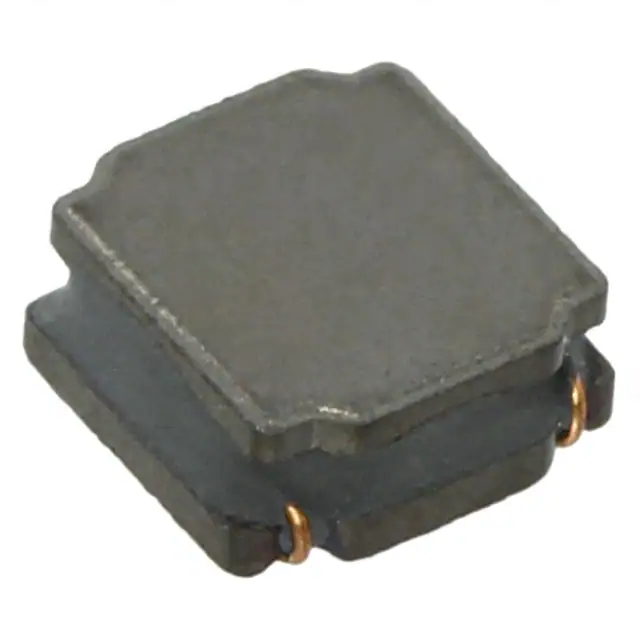

74405024022FIXED IND 2.2UH 1.6A 120MOHM SMD Würth Elektronik |
3,753 |
|
规格书 |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.6 A | 3A | Shielded | 120mOhm Max | - | 46MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74405024100FIXED IND 10UH 800MA 522MOHM SMD Würth Elektronik |
3,162 |
|
规格书 |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 800 mA | 1.2A | Shielded | 522mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

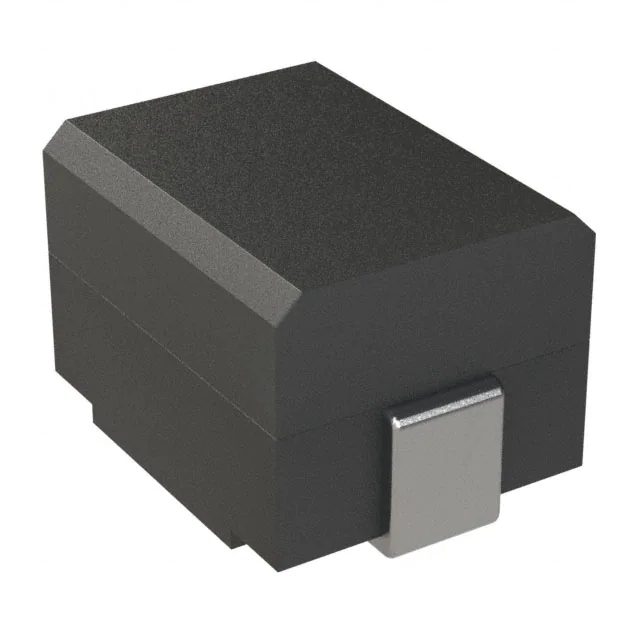

74476401FIXED IND 1UH 400MA 700 MOHM SMD Würth Elektronik |
6,809 |
|
规格书 |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 400 mA | - | Unshielded | 700mOhm Max | 30 @ 7.96MHz | 340MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
74476410FIXED IND 10UH 150MA 2.1 OHM SMD Würth Elektronik |
6,351 |
|
规格书 |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 150 mA | - | Unshielded | 2.1Ohm Max | 30 @ 2.52MHz | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
744032220FIXED IND 22UH 220MA 1.3 OHM SMD Würth Elektronik |
4,644 |
|
规格书 |
WE-LQ | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 220 mA | 600mA | Unshielded | 1.3Ohm Max | 35 @ 1MHz | 14MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
