购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744901068FIXED IND 6.8NH 260MA 900MOHM SM Würth Elektronik |
5,364 |
|
规格书 |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 6.8 nH | ±0.1nH | 260 mA | - | Unshielded | 900mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
744901027FIXED IND 2.7NH 440MA 300MOHM SM Würth Elektronik |
4,826 |
|
规格书 |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 2.7 nH | ±0.1nH | 440 mA | - | Unshielded | 300mOhm Max | 13 @ 500MHz | 8GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
744901033FIXED IND 3.3NH 380MA 400MOHM SM Würth Elektronik |
3,782 |
|
规格书 |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 3.3 nH | ±0.1nH | 380 mA | - | Unshielded | 400mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
744901012FIXED IND 1.2NH 700MA 100MOHM SM Würth Elektronik |
2,707 |
|
规格书 |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 1.2 nH | ±0.1nH | 700 mA | - | Unshielded | 100mOhm Max | 13 @ 500MHz | 12GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
.jpg)
|
744760339AFIXED IND 3.9UH 200MA 2.5OHM SMD Würth Elektronik |
9,956 |
|
规格书 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±5% | 200 mA | - | Unshielded | 2.5Ohm Max | 15 @ 7.96MHz | 60MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
744760410AFIXED IND 10UH 80MA 5 OHM SMD Würth Elektronik |
6,488 |
|
规格书 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 80 mA | - | Unshielded | 5Ohm Max | 15 @ 2.52MHz | 40MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
744762410AFIXED IND 10UH 150MA 3.5 OHM SMD Würth Elektronik |
5,893 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 150 mA | - | Unshielded | 3.5Ohm Max | 15 @ 2.52MHz | 33MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

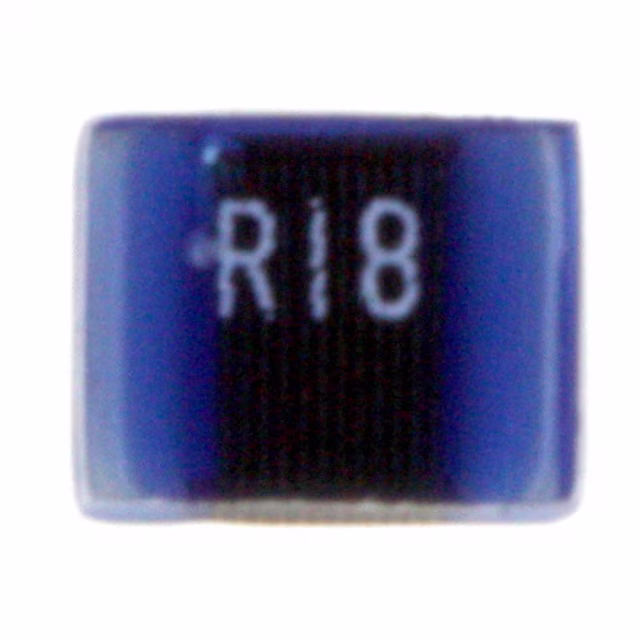

744762218AFIXED IND 180NH 800MA 330MOHM SM Würth Elektronik |
4,110 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±5% | 800 mA | - | Unshielded | 330mOhm Max | 45 @ 100MHz | 800MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

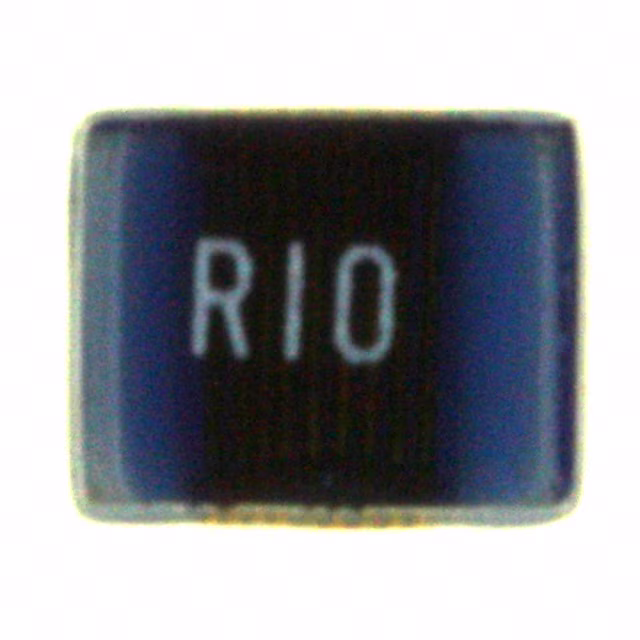

744762210AFIXED IND 100NH 1A 180 MOHM SMD Würth Elektronik |
3,649 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 1 A | - | Unshielded | 180mOhm Max | 60 @ 350MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744760382AFIXED IND 8.2UH 120MA 3.5OHM SMD Würth Elektronik |
3,396 |
|
规格书 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 120 mA | - | Unshielded | 3.5Ohm Max | 15 @ 7.96MHz | 40MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
