购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCK-078FIXED IND 1.1UH 3.24A 15 MOHM Traco Power |
2,726 |
|
规格书 |
- | Nonstandard | Bag | Active | - | - | 1.1 µH | ±20% | 3.24 A | - | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.199" (5.05mm) |
|

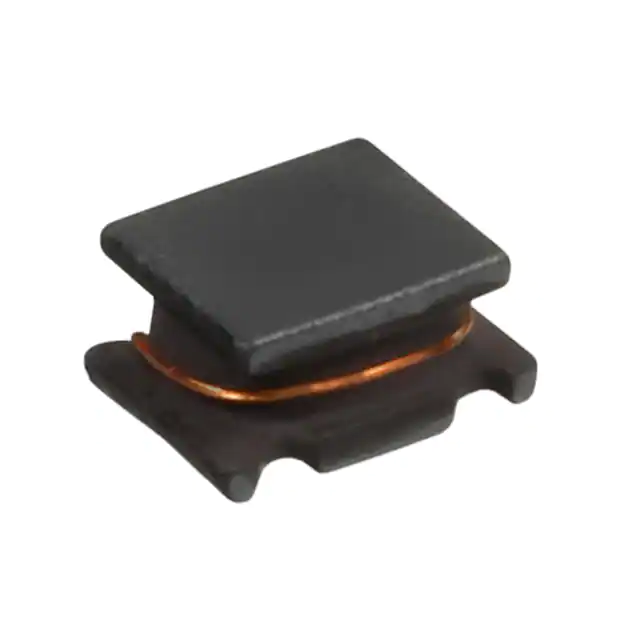

TCK-120FIXED IND 10UH 900MA 354MOHM SMD Traco Power |
3,155 |
|
规格书 |
- | 1210 (3225 Metric) | Bag | Active | - | - | 10 µH | ±20% | 900 mA | - | Unshielded | 354mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
|
TCK-110FIXED IND 3.3UH 2A 70 MOHM SMD Traco Power |
1,347 |
|
规格书 |
- | Nonstandard | Bag | Active | - | - | 3.3 µH | ±20% | 2 A | - | Unshielded | 70mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
TCK-063FIXED IND 27UH 970MA 200MOHM SMD Traco Power |
1,185 |
|
规格书 |
- | Nonstandard | Bag | Active | - | - | 27 µH | ±20% | 970 mA | - | Unshielded | 200mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.199" (5.05mm) |
|
TCK-150FIXED IND 68UH 590MA 636MOHM SMD Traco Power |
4,840 |
|
规格书 |
- | Nonstandard | Bag | Active | - | - | 68 µH | ±20% | 590 mA | - | Unshielded | 636mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.126" (3.20mm) |
|
|
TCK-070FIXED IND 10UH 2.6A 40 MOHM SMD Traco Power |
1,470 |
|
规格书 |
- | Nonstandard | Bag | Active | - | - | 10 µH | ±20% | 2.6 A | - | Unshielded | 40mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.224" (5.70mm) |
|
TCK-108FIXED IND 3.3UH 3.3A 50MOHM SMD Traco Power |
3,080 |
|
规格书 |
- | Nonstandard | Strip | Active | - | - | 3.3 µH | ±20% | 3.3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" (2.10mm) |
|
|
TCK-121FIXED IND 15UH 700MA 570MOHM SMD Traco Power |
4,797 |
|
规格书 |
- | 1210 (3225 Metric) | Bag | Active | - | - | 15 µH | ±20% | 700 mA | - | Unshielded | 570mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
TCK-145FIXED IND 6.8UH 1A 300 MOHM SMD Traco Power |
3,894 |
|
规格书 |
- | Nonstandard | Bag | Active | - | - | 6.8 µH | ±20% | 1 A | - | Unshielded | 300mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.158" W (4.50mm x 4.00mm) | 0.146" (3.70mm) |
|
|
TCK-149FIXED IND 22UH 1.1A 240MOHM SMD Traco Power |
3,322 |
|
规格书 |
- | Nonstandard | Bag | Active | - | - | 22 µH | ±20% | 1.1 A | - | Unshielded | 240mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.126" (3.20mm) |
