购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

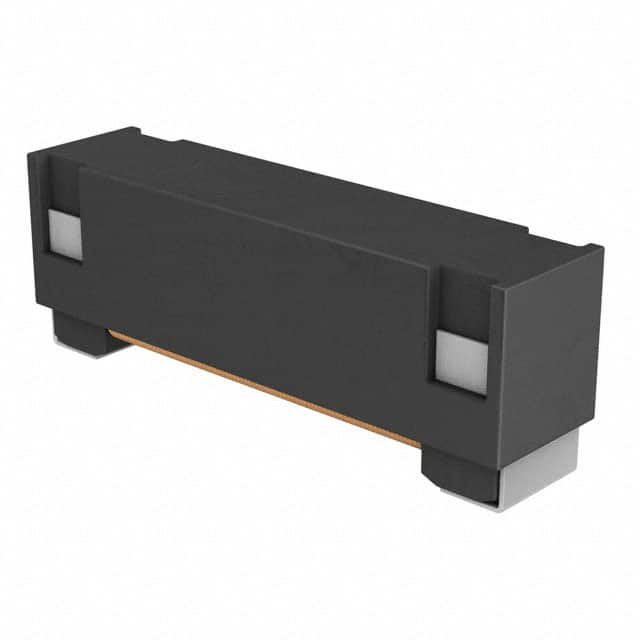

TPL802727-452HFIXED IND 4.5MH 80 OHM SMD TDK Corporation |
3,641 |
|
规格书 |
TPL | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.5 mH | ±3% | - | - | Unshielded | 80Ohm Max | 30 @ 125kHz | - | AEC-Q200 | -40°C ~ 125°C | 125 kHz | - | Surface Mount | - | 0.309" L x 0.106" W (7.85mm x 2.70mm) | 0.114" (2.90mm) |
|
MLP2012R1R0MT0S1FIXED IND 1UH 500MA 689 MOHM SMD TDK Corporation |
3,121 |
|
- |
MLP | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 500 mA | - | Shielded | 689mOhm Max | - | - | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|

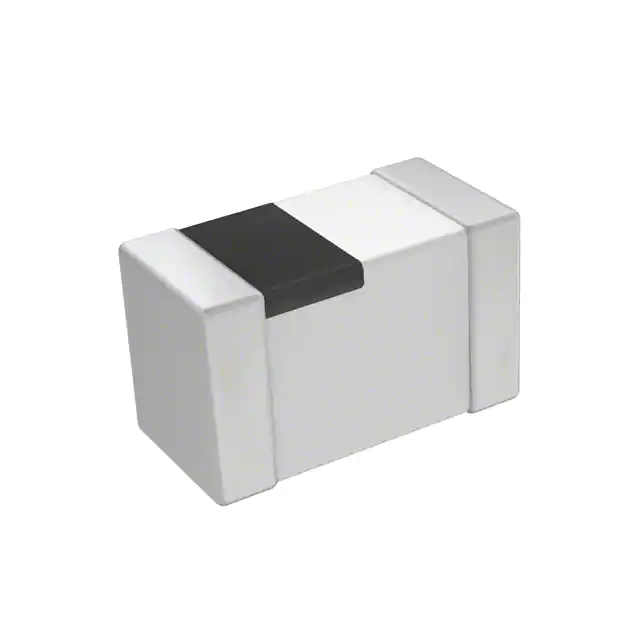

MLG1608B8N2DTD25FIXED IND 8.2NH 600MA 200MOHM SM TDK Corporation |
3,683 |
|
规格书 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 8.2 nH | ±0.5nH | 600 mA | - | Unshielded | 200mOhm Max | 10 @ 100MHz | 4.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608B18NJTD25FIXED IND 18NH 600MA 320MOHM SMD TDK Corporation |
4,051 |
|
规格书 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 18 nH | ±5% | 600 mA | - | Unshielded | 320mOhm Max | 12 @ 100MHz | 2.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608B27NJTD25FIXED IND 27NH 500MA 400MOHM SMD TDK Corporation |
4,209 |
|
规格书 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 27 nH | ±5% | 500 mA | - | Unshielded | 400mOhm Max | 12 @ 100MHz | 2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608B33NJTD25FIXED IND 33NH 500MA 500MOHM SMD TDK Corporation |
3,892 |
|
规格书 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 33 nH | ±5% | 500 mA | - | Unshielded | 500mOhm Max | 12 @ 100MHz | 1.8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608B39NJTD25FIXED IND 39NH 400MA 550MOHM SMD TDK Corporation |
1,832 |
|
规格书 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 39 nH | ±5% | 400 mA | - | Unshielded | 550mOhm Max | 12 @ 100MHz | 1.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608B47NJTD25FIXED IND 47NH 400MA 600MOHM SMD TDK Corporation |
4,484 |
|
规格书 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 47 nH | ±5% | 400 mA | - | Unshielded | 600mOhm Max | 14 @ 100MHz | 1.4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608B56NJTD25FIXED IND 56NH 400MA 700MOHM SMD TDK Corporation |
3,925 |
|
规格书 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 56 nH | ±5% | 400 mA | - | Unshielded | 700mOhm Max | 14 @ 100MHz | 1.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608B82NJTD25FIXED IND 82NH 300MA 800MOHM SMD TDK Corporation |
1,172 |
|
规格书 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 82 nH | ±5% | 300 mA | - | Unshielded | 800mOhm Max | 14 @ 100MHz | 1GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
