购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLF7045T-150M1R1FIXED IND 15UH 1.53A 62.4MOHM SM TDK Corporation |
1,280 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.53 A | 1.1A | Shielded | 62.4mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
SLF7045T-331MR25FIXED IND 330UH 370MA 888MOHM SM TDK Corporation |
2,813 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 370 mA | 250mA | Shielded | 888mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
SLF6028T-100M1R3FIXED IND 10UH 1.8A 63.8MOHM SMD TDK Corporation |
1,223 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.8 A | 1.3A | Shielded | 63.8mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SLF6028T-220MR77FIXED IND 22UH 1.3A 124.8MOHM SM TDK Corporation |
4,676 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.3 A | 770mA | Shielded | 124.8mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SLF6028T-470MR59FIXED IND 47UH 920MA 252MOHM SMD TDK Corporation |
2,714 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 920 mA | 590mA | Shielded | 252mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SLF6028T-680MR50FIXED IND 68UH 780MA 348MOHM SMD TDK Corporation |
2,543 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 780 mA | 500mA | Shielded | 348mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|

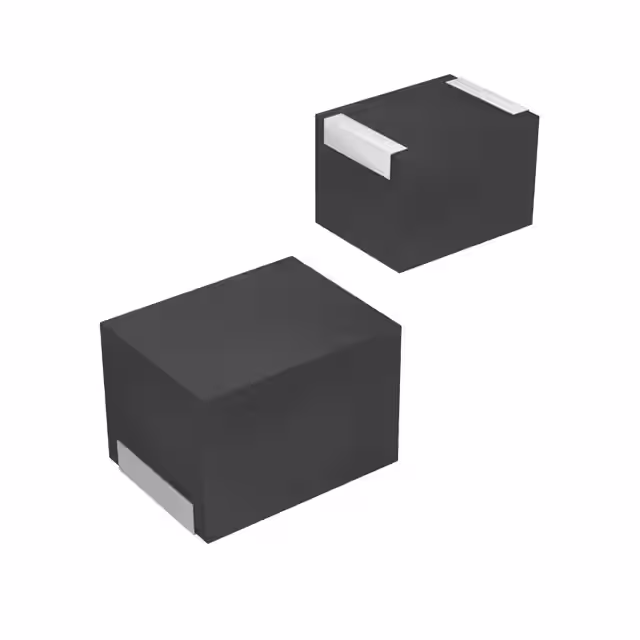

NLC322522T-151KFIXED IND 150UH 85MA 6.1 OHM SMD TDK Corporation |
3,574 |
|
规格书 |
NLC | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 150 µH | ±10% | 85 mA | - | Unshielded | 6.1Ohm | 20 @ 796kHz | 8MHz | - | -40°C ~ 85°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLC322522T-221KFIXED IND 220UH 70MA 8.4 OHM SMD TDK Corporation |
1,238 |
|
规格书 |
NLC | 1210 (3225 Metric) | Cut Tape (CT) | Obsolete | - | - | 220 µH | ±10% | 70 mA | - | Unshielded | 8.4Ohm | 20 @ 796kHz | 7MHz | - | -40°C ~ 85°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
NL322522T-047JFIXED IND 47NH 450MA 300 MOHM TDK Corporation |
2,471 |
|
规格书 |
NL | 1210 (3225 Metric) | Cut Tape (CT) | Obsolete | - | - | 47 nH | ±5% | 450 mA | - | Shielded | 300mOhm Max | 26 @ 100MHz | 1.2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NL322522T-1R0JFIXED IND 1UH 400MA 700 MOHM SMD TDK Corporation |
3,642 |
|
规格书 |
NL | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 1 µH | ±5% | 400 mA | - | Unshielded | 700mOhm Max | 30 @ 7.96MHz | 120MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
