购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

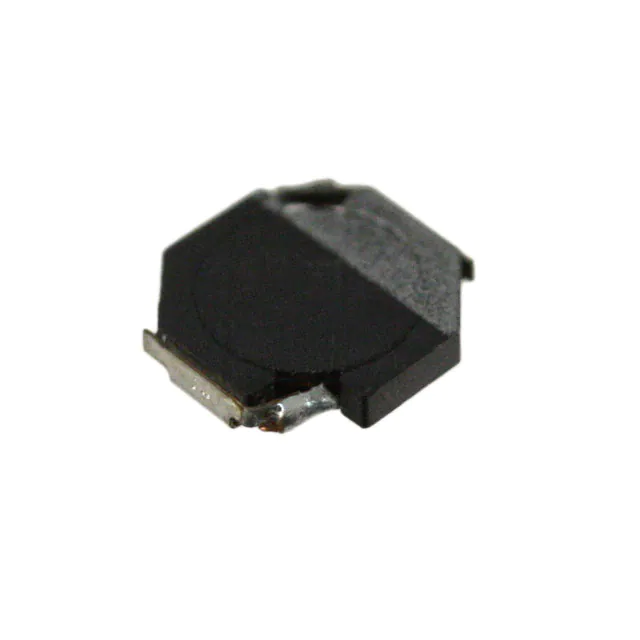

VLF5014AT-2R7M1R5FIXED IND 2.7UH 1.5A 78 MOHM SMD TDK Corporation |
1,648 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 1.5 A | 2.2A | Shielded | 78mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|
|
VLF5014AT-330MR50FIXED IND 33UH 500MA 720MOHM SMD TDK Corporation |
4,326 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 500 mA | 640mA | Shielded | 720mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|
|
VLF5014AT-470MR41FIXED IND 47UH 410MA 1.1 OHM SMD TDK Corporation |
3,687 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 410 mA | 540mA | Shielded | 1.1Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|

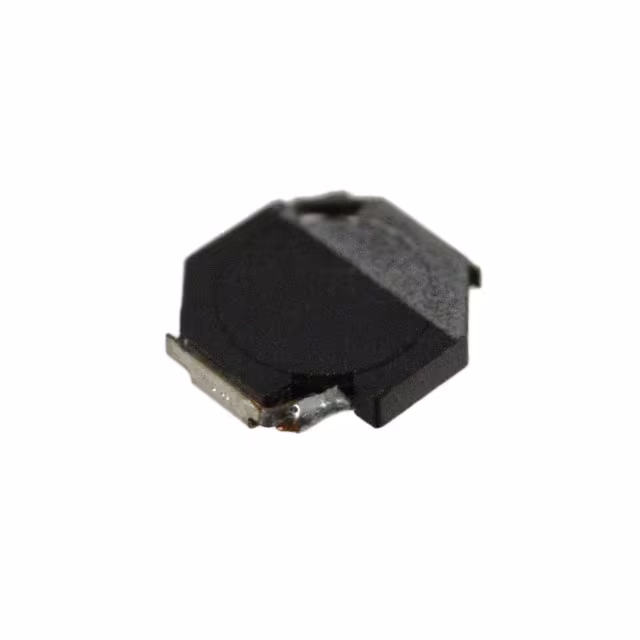

VLF5010ST-1R0N2R5FIXED IND 1UH 2.5A 54 MOHM SMD TDK Corporation |
4,456 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.5 A | 2.7A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.039" (1.00mm) |
|
|
VLF5010ST-2R2M2R0FIXED IND 2.2UH 2A 77 MOHM SMD TDK Corporation |
2,220 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2 A | 2A | Shielded | 77mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.039" (1.00mm) |
|
|
VLF5010ST-4R7M1R3FIXED IND 4.7UH 1.3A 180MOHM SMD TDK Corporation |
4,732 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.3 A | 1.4A | Shielded | 180mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.039" (1.00mm) |
|
|
VLF5010ST-6R8M1R1FIXED IND 6.8UH 1.1A 240MOHM SMD TDK Corporation |
4,002 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.1 A | 1.1A | Shielded | 240mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.039" (1.00mm) |
|
VLF5012AT-3R3M1R3FIXED IND 3.3UH 1.3A 140MOHM SMD TDK Corporation |
4,813 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.3 A | 1.7A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.047" (1.20mm) |
|
|
VLF5012AT-6R8M1R0FIXED IND 6.8UH 1A 200 MOHM SMD TDK Corporation |
3,060 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1 A | 1.2A | Shielded | 200mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.047" (1.20mm) |
|

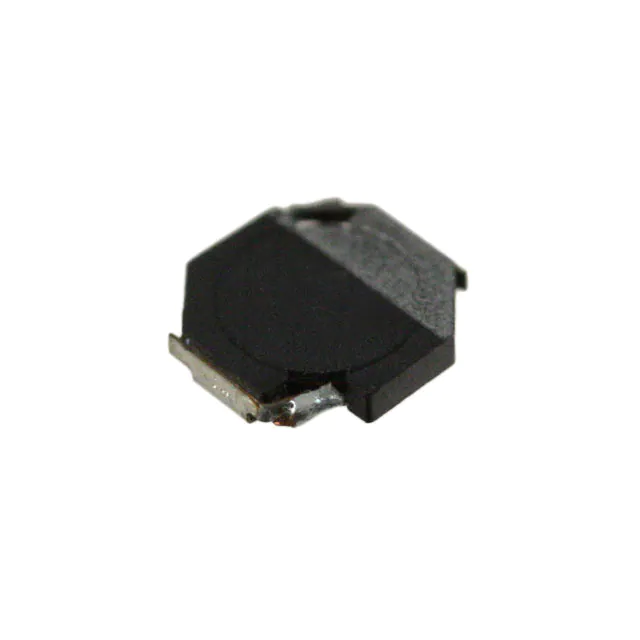

VLF5010AT-100MR78-2FIXED IND 10UH 780MA 360MOHM SMD TDK Corporation |
3,861 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 780 mA | 800mA | Shielded | 360mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.039" (1.00mm) |
