购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLF6045T-6R8N-DFIXED IND 6.8UH 2.9A 35.1MOHM SM TDK Corporation |
3,145 |
|
规格书 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 2.9 A | 2.2A | Shielded | 35.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.189" (4.80mm) |
|

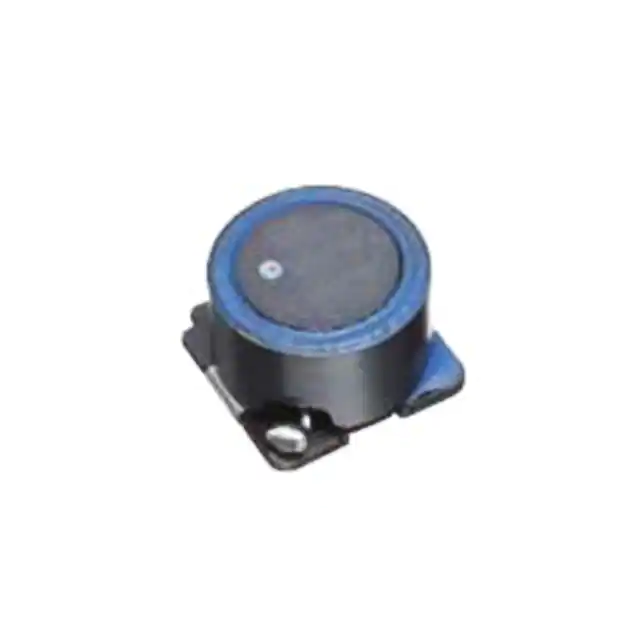

SLF10165T-1R5N6R83PFFIXED IND 1.5UH 6.8A 8.71MOHM SM TDK Corporation |
4,162 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 6.8 A | 10.7A | Shielded | 8.71mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.268" (6.80mm) |
|

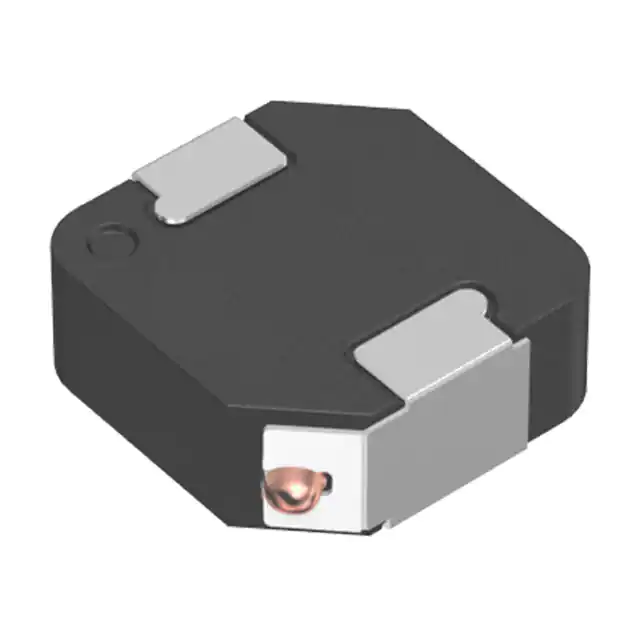

SPM10040T-R36M170FIXED IND 360NH 17A 1.1 MOHM SMD TDK Corporation |
4,208 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 360 nH | ±20% | 17 A | 17A | Shielded | 1.1mOhm | - | - | - | - | 300 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SPM10040T-R56M150FIXED IND 560NH 15A 1.7 MOHM SMD TDK Corporation |
4,405 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | 560 nH | ±20% | 15 A | 15A | Shielded | 1.7mOhm | - | - | - | - | 300 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.157" (4.00mm) |
|
VLF302510MT-1R0NFIXED IND 1UH 2.13A 40 MOHM SMD TDK Corporation |
4,401 |
|
规格书 |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.13 A | 2.22A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
|
VLF302510MT-1R5NFIXED IND 1.5UH 1.65A 66MOHM SMD TDK Corporation |
3,792 |
|
规格书 |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.65 A | 1.65A | Shielded | 66mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
VLF302510MT-2R2MFIXED IND 2.2UH 1.5A 84MOHM SMD TDK Corporation |
4,756 |
|
规格书 |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 1.37A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
|
VLF302510MT-3R3MFIXED IND 3.3UH 1.2A 126MOHM SMD TDK Corporation |
3,407 |
|
规格书 |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.2 A | 1.21A | Shielded | 126mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
|
VLF302510MT-4R7MFIXED IND 4.7UH 1.08A 168MOHM SM TDK Corporation |
1,766 |
|
规格书 |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.08 A | 950mA | Shielded | 168mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
|
|
VLF302510MT-6R8MFIXED IND 6.8UH 840MA 258MOHM SM TDK Corporation |
1,608 |
|
规格书 |
VLF-MT | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 840 mA | 810mA | Shielded | 258mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.039" (1.00mm) |
