购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GLF1608T4R7MFIXED IND 4.7UH 220MA 550MOHM SM TDK Corporation |
4,265 |
|
规格书 |
GLF | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 220 mA | 70mA | Shielded | 550mOhm | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
SPM4012T-1R0M TFIXED IND 1UH 4.3A 41.8MOHM SMD TDK Corporation |
4,929 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.3 A | 4.5A | Shielded | 41.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4012T-1R5M TFIXED IND 1.5UH 3.5A 67.9MOHM SM TDK Corporation |
4,139 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 3.5 A | 3.7A | Shielded | 67.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4012T-2R2M TFIXED IND 2.2UH 2.9A 94.3MOHM SM TDK Corporation |
4,909 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.9 A | 3.3A | Shielded | 94.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4012T-3R3M TFIXED IND 3.3UH 2.4A 141.5 MOHM TDK Corporation |
3,129 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.4 A | 2.6A | Shielded | 141.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4012T-4R7MTFIXED IND 4.7UH 2A 204.7MOHM SMD TDK Corporation |
3,918 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2 A | 2.1A | Shielded | 204.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|
|
SPM4012T-R47M TFIXED IND 470NH 5.6A 25.3MOHM SM TDK Corporation |
1,202 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 470 nH | ±20% | 5.6 A | 6A | Shielded | 25.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.047" (1.20mm) |
|

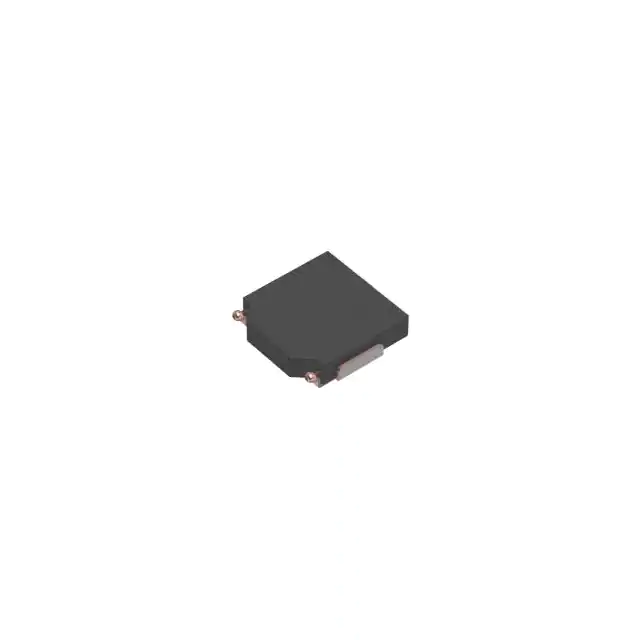

SPM4010T-100M-LRFIXED IND 10UH 1.1A 650.9MOHM SM TDK Corporation |
1,258 |
|
规格书 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.1 A | 1.6A | Shielded | 650.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.039" (1.00mm) |
|
SPM5012T-1R0MTFIXED IND 1UH 4.1A 44 MOHM SMD TDK Corporation |
4,181 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.1 A | 5.9A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.047" (1.20mm) |
|
|
SPM5012T-2R2MTFIXED IND 2.2UH 2.7A 78.8MOHM SM TDK Corporation |
4,275 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.7 A | 4.6A | Shielded | 78.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.047" (1.20mm) |
