购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
MLF1608A1R2JTD25FIXED IND 1.2UH 50MA 650MOHM SMD TDK Corporation |
1,677 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.2 µH | ±5% | 50 mA | - | Shielded | 650mOhm Max | 35 @ 10MHz | 110MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
NLFV25T-3R3M-PFFIXED IND 3.3UH 280MA 240MOHM SM TDK Corporation |
19,476 |
|
规格书 |
NLFV | Nonstandard | Tape & Reel (TR) | Last Time Buy | Wirewound | - | 3.3 µH | ±20% | 280 mA | - | Shielded | 240mOhm Max | 5 @ 7.96MHz | 55MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
MLF1005GR47JT000FIXED IND 470NH 50MA 420MOHM SMD TDK Corporation |
17,837 |
|
规格书 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±5% | 50 mA | - | Shielded | 420mOhm Max | 30 @ 10MHz | 190MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
NLCV32T-R10M-EFRDFIXED IND 100NH 2.85A 24MOHM SMD TDK Corporation |
15,868 |
|
规格书 |
NLCV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±20% | 2.85 A | - | Unshielded | 24mOhm Max | 10 @ 25.2MHz | 800MHz | AEC-Q200 | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
 18.jpg)
|

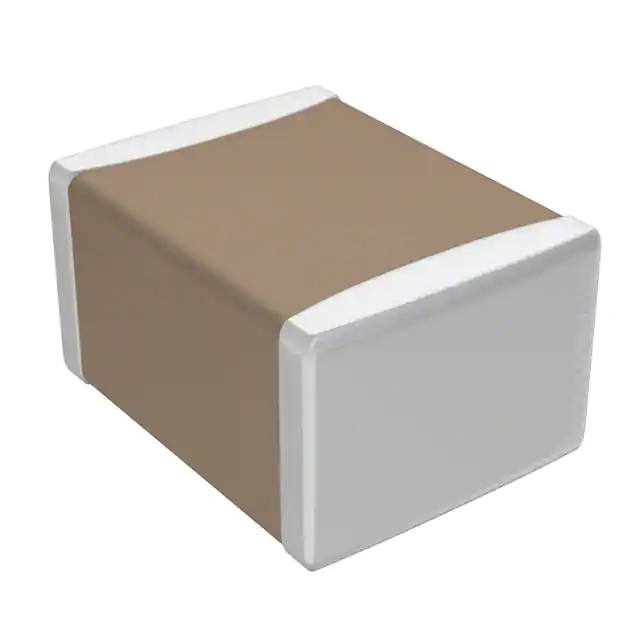

MLH2012F22NKT000FIXED IND 22NH 1.85A 44 MOHM SMD TDK Corporation |
13,985 |
|
规格书 |
MLH2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 nH | ±10% | 1.85 A | 3A | Shielded | 44mOhm | - | 1GHz | - | - | - | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
.jpg)
|
VLS201610HBX-2R2M-1FIXED IND 2.2UH 1.45A 170MOHM SM TDK Corporation |
12,729 |
|
规格书 |
VLS-HBX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.45 A | 1.7A | Shielded | 170mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
NLCV25T-R10M-EFRFIXED IND 100NH 1.89A 48MOHM SMD TDK Corporation |
12,626 |
|
规格书 |
NLCV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±20% | 1.89 A | - | Unshielded | 48mOhm Max | 5 @ 25.2MHz | 800MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
MLF2012DR27JTD25FIXED IND 270NH 250MA 350MOHM SM TDK Corporation |
7,847 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 270 nH | ±5% | 250 mA | - | Shielded | 350mOhm Max | 20 @ 25MHz | 250MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
MLP2016H2R2MT0S1FIXED IND 2.2UH 1.2A 137.5 MOHM TDK Corporation |
7,735 |
|
规格书 |
MLP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.2 A | - | Shielded | 137.5mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
VLS201612HBX-100M-1FIXED IND 10UH 760MA 756MOHM SMD TDK Corporation |
7,391 |
|
规格书 |
VLS-HBX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 760 mA | 670mA | Shielded | 756mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
