购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

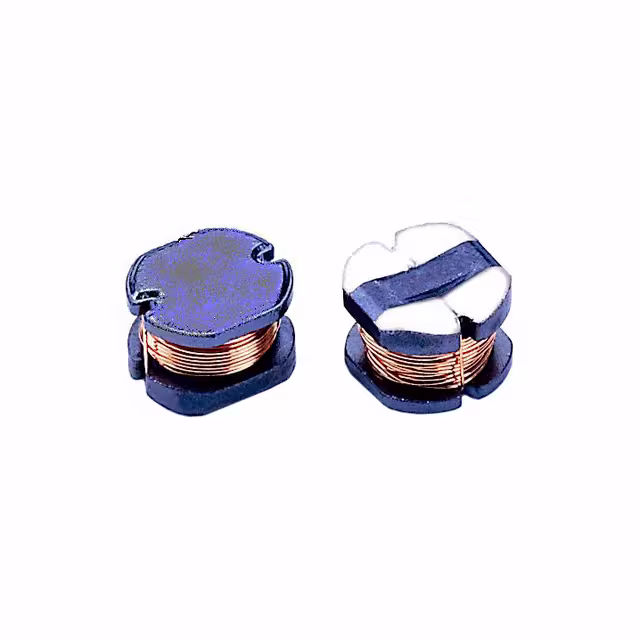

SC31-470FIXED IND 47UH 350MA 1.7 OHM SMD Signal Transformer |
1,704 |
|
规格书 |
SC31 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 350 mA | 170mA | Unshielded | 1.7Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.071" (1.80mm) |
|
|
SC31-4R7FIXED IND 4.7UH 1.05A 190MOHM SM Signal Transformer |
4,536 |
|
规格书 |
SC31 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1.05 A | 650mA | Unshielded | 190mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.071" (1.80mm) |
|
|
SC31-680FIXED IND 68UH 290MA 2.5 OHM SMD Signal Transformer |
4,567 |
|
规格书 |
SC31 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 290 mA | 130mA | Unshielded | 2.5Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.071" (1.80mm) |
|

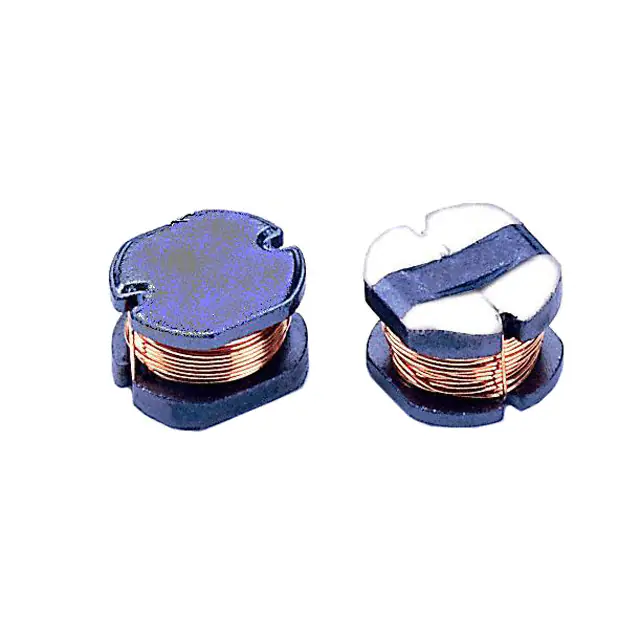

SC32-100FIXED IND 10UH 800MA 373MOHM SMD Signal Transformer |
4,230 |
|
规格书 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 800 mA | 710mA | Unshielded | 373mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.094" (2.40mm) |
|
|
SC32-101FIXED IND 100UH 290MA 3.2OHM SMD Signal Transformer |
2,450 |
|
规格书 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 290 mA | 220mA | Unshielded | 3.2Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.094" (2.40mm) |
|
|
SC32-120FIXED IND 12UH 720MA 397MOHM SMD Signal Transformer |
2,559 |
|
规格书 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±20% | 720 mA | 650mA | Unshielded | 397mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.094" (2.40mm) |
|
|
SC32-121FIXED IND 120UH 250MA 4.1OHM SMD Signal Transformer |
4,445 |
|
规格书 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±20% | 250 mA | 200mA | Unshielded | 4.1Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.094" (2.40mm) |
|
|
SC32-151FIXED IND 150UH 230MA 4.78OHM SM Signal Transformer |
1,551 |
|
规格书 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 230 mA | 170mA | Unshielded | 4.78Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.094" (2.40mm) |
|
|
SC32-180FIXED IND 18UH 640MA 592MOHM SMD Signal Transformer |
1,419 |
|
规格书 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 640 mA | 520mA | Unshielded | 592mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.094" (2.40mm) |
|
|
SC32-181FIXED IND 180UH 200MA 7.65OHM SM Signal Transformer |
1,443 |
|
规格书 |
SC32 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 µH | ±20% | 200 mA | 150mA | Unshielded | 7.65Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.150" L x 0.130" W (3.80mm x 3.30mm) | 0.094" (2.40mm) |
