购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

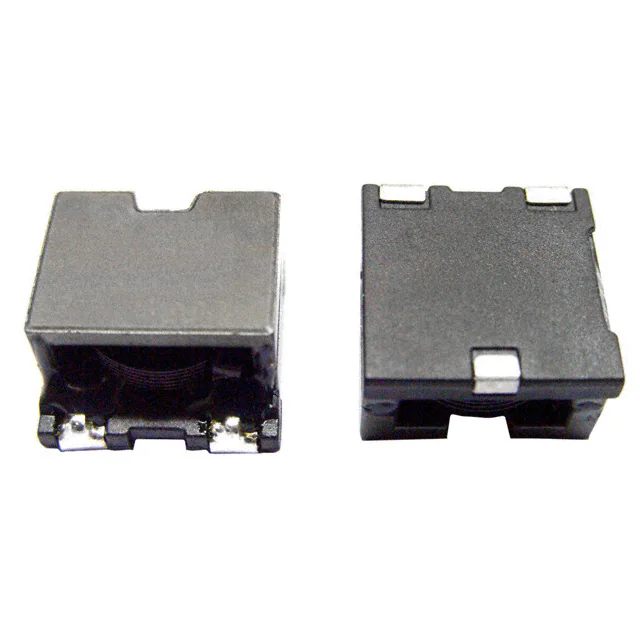

SCEP147L-8R0FIXED IND 8UH 11.5A 7.8 MOHM SMD Signal Transformer |
3,630 |
|
规格书 |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 8 µH | ±20% | 11.5 A | 10A | Shielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147L-R50FIXED IND 500NH 24A 2.1 MOHM SMD Signal Transformer |
3,870 |
|
规格书 |
SCEP147L | Nonstandard | Tape & Reel (TR) | Active | - | - | 500 nH | ±30% | 24 A | 39.6A | Shielded | 2.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|

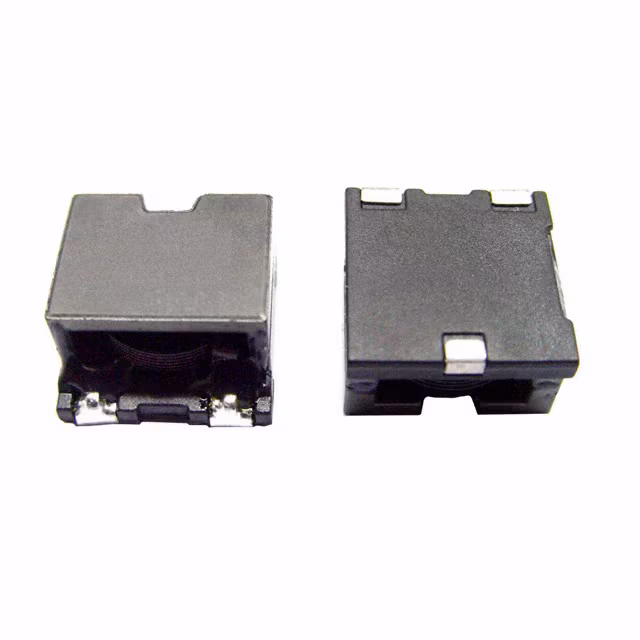

SCEP147S-1R5FIXED IND 1.5UH 16A 3.5 MOHM SMD Signal Transformer |
3,462 |
|
规格书 |
SCEP147S | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 16 A | 27.2A | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147S-3R4FIXED IND 3.4UH 12.3A 5.5MOHM SM Signal Transformer |
4,699 |
|
规格书 |
SCEP147S | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.4 µH | ±20% | 12.3 A | 18.4A | Shielded | 5.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147S-7R7FIXED IND 7.7UH 10A 9.85MOHM SMD Signal Transformer |
4,109 |
|
规格书 |
SCEP147S | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.7 µH | ±20% | 10 A | 12.4A | Shielded | 9.85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
|
SCEP147S-R40FIXED IND 400NH 23A 2.1 MOHM SMD Signal Transformer |
1,450 |
|
规格书 |
SCEP147S | Nonstandard | Tape & Reel (TR) | Active | - | - | 400 nH | ±30% | 23 A | 52.8A | Shielded | 2.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|
HCLC-10-14.3TOR IND LOW CORE LOSS 10UH 14.3A Signal Transformer |
3,530 |
|
规格书 |
HCLC | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 10 µH | ±15% | 14.3 A | - | Shielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|
|
HCLC-12-14.2TOR IND LOW CORE LOSS 12UH 14.2A Signal Transformer |
4,251 |
|
规格书 |
HCLC | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 12 µH | ±15% | 14.2 A | - | Shielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|
|
HCLC-15-13.6TOR IND LOW CORE LOSS 15UH 13.6A Signal Transformer |
1,666 |
|
规格书 |
HCLC | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 15 µH | ±15% | 13.6 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|
|
HCLC-18-13.1TOR IND LOW CORE LOSS 18UH 13.1A Signal Transformer |
2,574 |
|
规格书 |
HCLC | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 18 µH | ±15% | 13.1 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
