购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

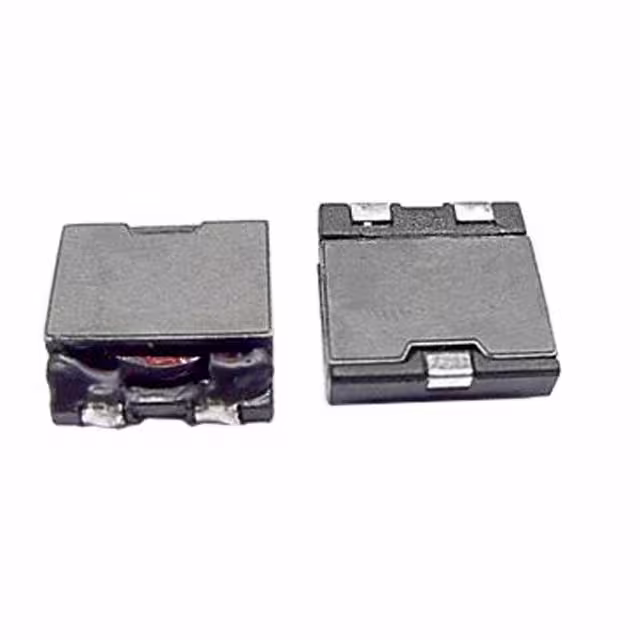

SCEP134S-4R8FIXED IND 4.8UH 9.8A 12 MOHM SMD Signal Transformer |
4,058 |
|
规格书 |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.8 µH | ±20% | 9.8 A | 9.3A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | 0.193" (4.90mm) |
|
|
SCEP134S-6R4FIXED IND 6.4UH 8.5A 16.3MOHM SM Signal Transformer |
2,236 |
|
规格书 |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.4 µH | ±20% | 8.5 A | 8A | Shielded | 16.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | 0.193" (4.90mm) |
|
|
SCEP134S-8R0FIXED IND 8UH 7A 18.4 MOHM SMD Signal Transformer |
2,005 |
|
规格书 |
SCEP134S | Nonstandard | Tape & Reel (TR) | Active | - | - | 8 µH | ±20% | 7 A | 7.2A | Shielded | 18.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.547" W (13.90mm x 13.90mm) | 0.193" (4.90mm) |
|
SCEP125-2R5FIXED IND 2.5UH 15A 3.8 MOHM SMD Signal Transformer |
1,947 |
|
规格书 |
SCEP125 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.5 µH | ±20% | 15 A | 10A | Shielded | 3.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
HTTI-27-6.4TOROIDAL IND HI TEMP 27UH 6.4ADC Signal Transformer |
1,533 |
|
规格书 |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 27 µH | ±15% | 6.4 A | - | Shielded | 28mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
HTTI-33-6.1TOROIDAL IND HI TEMP 33UH 6.1ADC Signal Transformer |
1,593 |
|
规格书 |
HTTI | Vertical, No Base, 2 PC Pin | Tray | Active | Toroidal | - | 33 µH | ±15% | 6.1 A | - | Shielded | 31mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
SCEP125-8R2FIXED IND 8.2UH 10A 11.4MOHM SMD Signal Transformer |
1,210 |
|
规格书 |
SCEP125 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 10 A | 5.8A | Shielded | 11.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
SCEP125U-R60FIXED IND 600NH 18.8A 2.5MOHM SM Signal Transformer |
3,224 |
|
规格书 |
SCEP125U | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 600 nH | ±20% | 18.8 A | 30A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
|
|
SLPPI05-12-R47MHI POWER IND 4.70UH 130.0 MOHM Signal Transformer |
1,789 |
|
规格书 |
SLPPI05 | Nonstandard | Bulk | Active | Molded | - | 4.7 µH | ±20% | 2 A | 3.5A | Shielded | 156mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.047" (1.20mm) |
|
|
SLPPI05-02-4R7MHI POWER IND 4.70UH 54.0 MOHM Signal Transformer |
4,854 |
|
规格书 |
SLPPI05 | Nonstandard | Bulk | Active | Molded | - | 4.7 µH | ±20% | 3.2 A | 4A | Shielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
