购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

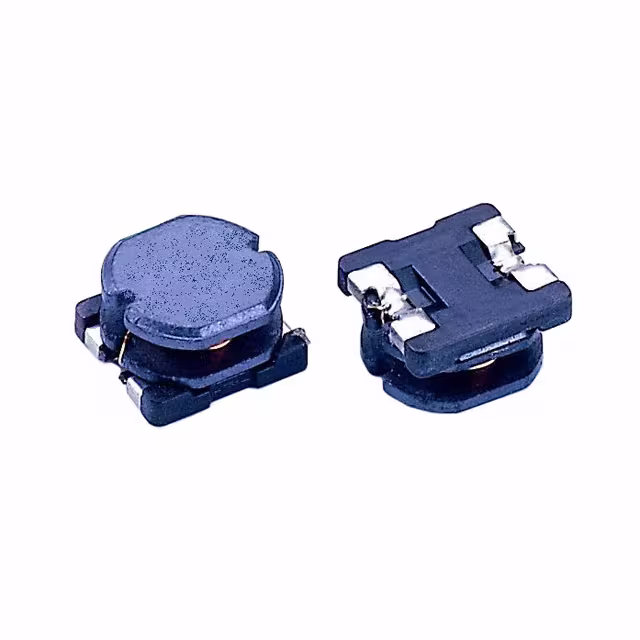

SC73B-121FIXED IND 120UH 800MA 660MOHM SM Signal Transformer |
3,268 |
|
规格书 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±20% | 800 mA | 490mA | Unshielded | 660mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-150FIXED IND 15UH 2A 100 MOHM SMD Signal Transformer |
1,661 |
|
规格书 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 2 A | 1.24A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-151FIXED IND 150UH 720MA 750MOHM SM Signal Transformer |
1,501 |
|
规格书 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 720 mA | 400mA | Unshielded | 750mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-180FIXED IND 18UH 1.8A 110 MOHM SMD Signal Transformer |
1,521 |
|
规格书 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 1.8 A | 1.12A | Unshielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-181FIXED IND 180UH 620MA 1.02OHM SM Signal Transformer |
2,106 |
|
规格书 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 µH | ±20% | 620 mA | 360mA | Unshielded | 1.02Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-220FIXED IND 22UH 1.65A 130MOHM SMD Signal Transformer |
4,964 |
|
规格书 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1.65 A | 1.07A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-270FIXED IND 27UH 1.5A 170 MOHM SMD Signal Transformer |
1,504 |
|
规格书 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 27 µH | ±20% | 1.5 A | 940mA | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-271FIXED IND 270UH 480MA 1.31OHM SM Signal Transformer |
3,627 |
|
规格书 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 270 µH | ±20% | 480 mA | 290mA | Unshielded | 1.31Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-330FIXED IND 33UH 1.4A 200 MOHM SMD Signal Transformer |
4,624 |
|
规格书 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 1.4 A | 850mA | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
|
|
SC73B-331FIXED IND 330UH 440MA 1.76OHM SM Signal Transformer |
3,240 |
|
规格书 |
SC73B | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 440 mA | 280mA | Unshielded | 1.76Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.177" (4.50mm) |
