购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLPPI05-15-1R5M-TRHI POWER IND 1.50UH 28.0 MOHM Signal Transformer |
3,268 |
|
规格书 |
SLPPI05 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 5 A | 8.2A | Shielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.059" (1.50mm) |
|
|
SLPPI05-18-6R8M-TRHI POWER IND 6.8UH 71.5 MOHM 3. Signal Transformer |
1,220 |
|
规格书 |
SLPPI05 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 2.8 A | 3A | Shielded | 86mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.071" (1.80mm) |
|
|
SLPPI05-18-4R7M-TRHI POWER IND 4.70UH 61.8MOHM 4 Signal Transformer |
3,295 |
|
规格书 |
SLPPI05 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 3 A | 4A | Shielded | 72.8mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.071" (1.80mm) |
|

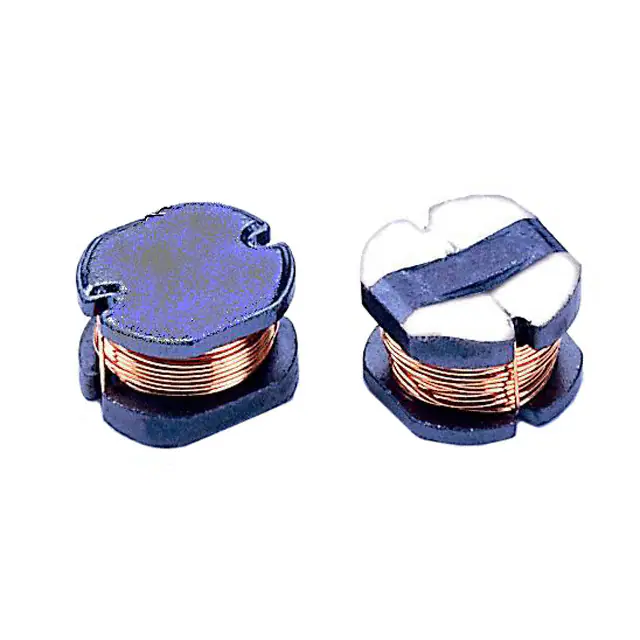

SC75-100FIXED IND 10UH 3.2A 70 MOHM SMD Signal Transformer |
4,639 |
|
规格书 |
SC75 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 3.2 A | 2.3A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.209" (5.30mm) |
|
|
SC75-330FIXED IND 33UH 1.7A 150 MOHM SMD Signal Transformer |
4,431 |
|
规格书 |
SC75 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 1.7 A | 1.2A | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.209" (5.30mm) |
|
|
SC75-101FIXED IND 100UH 900MA 430MOHM SM Signal Transformer |
3,242 |
|
规格书 |
SC75 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 900 mA | 720mA | Unshielded | 430mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.209" (5.30mm) |
|
SCRH124B-101FIXED IND 100UH 1.36A 330MOHM SM Signal Transformer |
3,734 |
|
规格书 |
SCRH124B | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.36 A | 1.2A | Shielded | 330mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.189" (4.80mm) |
|
|
SCRH124B-121FIXED IND 120UH 1.23A 400MOHM SM Signal Transformer |
1,936 |
|
规格书 |
SCRH124B | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 µH | ±20% | 1.23 A | 1.1A | Shielded | 400mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.189" (4.80mm) |
|
|
SCRH124B-150FIXED IND 15UH 3.5A 53 MOHM SMD Signal Transformer |
1,478 |
|
规格书 |
SCRH124B | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 3.5 A | 3.2A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.189" (4.80mm) |
|
|
SCRH124B-151FIXED IND 150UH 1.16A 530MOHM SM Signal Transformer |
4,581 |
|
规格书 |
SCRH124B | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1.16 A | 950mA | Shielded | 530mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.189" (4.80mm) |
