购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2,00x1,60x,80mm.jpg)
|
CIGT201610LHR47MNEFIXED IND 470NH 3.6A 33MOHM SMD Samsung Electro-Mechanics |
14,110 |
|
规格书 |
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 470 nH | ±20% | 3.6 A | 4.9A | Shielded | 33mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
-2,5x2,0x1,00mm.jpg)
|
CIGT252012LMR47MNEFIXED IND 470NH SMD Samsung Electro-Mechanics |
99,547 |
|
规格书 |
CIGT | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 470 nH | ±20% | - | - | Shielded | - | - | - | - | - | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CIGT201608EHR47MNEFIXED IND 470NH 4.3A 27MOHM SMD Samsung Electro-Mechanics |
20,856 |
|
规格书 |
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 470 nH | ±20% | 4.3 A | 4.6A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
.jpg)
|

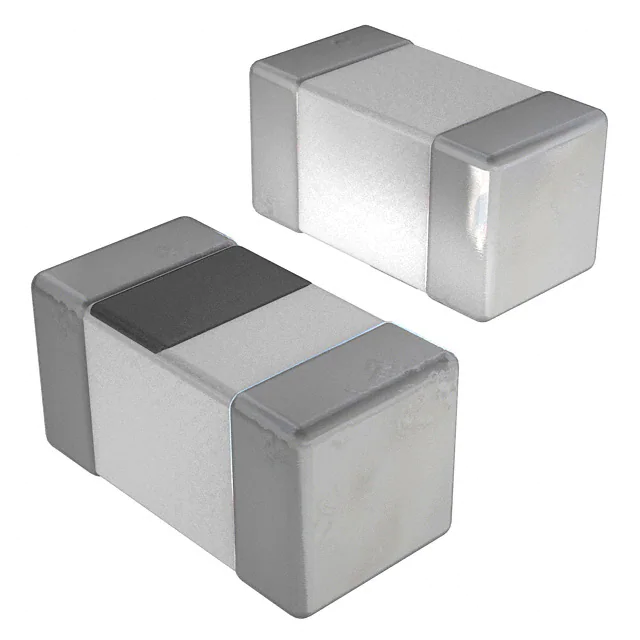

CIH03Q18NJNCFIXED IND 18NH 140MA 1.05OHM SMD Samsung Electro-Mechanics |
10,431 |
|
- |
CIH03Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 18 nH | ±5% | 140 mA | - | Unshielded | 1.05Ohm Max | 11 @ 500MHz | 2.3GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
CIH03Q3N3CNCFIXED IND 3.3NH 270MA 300MOHM SM Samsung Electro-Mechanics |
8,055 |
|
- |
CIH03Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 3.3 nH | ±0.2nH | 270 mA | - | Unshielded | 300mOhm Max | 13 @ 500MHz | 8.1GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|

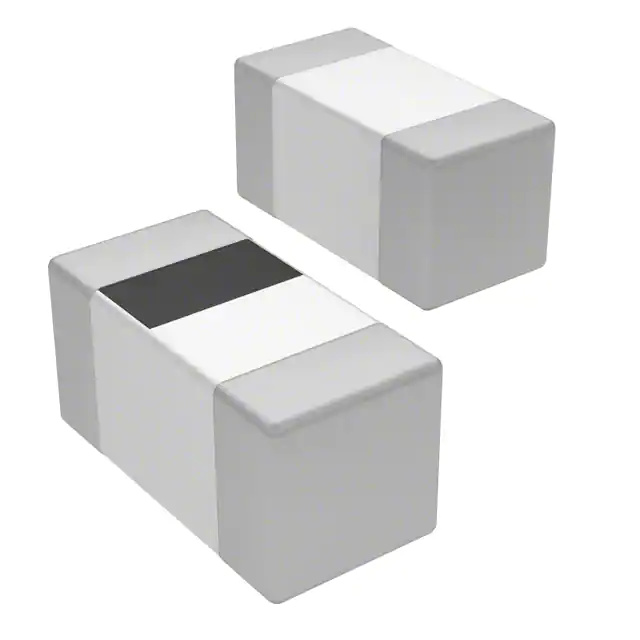

CIH05T3N0SNCFIXED IND 3NH 300MA 190 MOHM SMD Samsung Electro-Mechanics |
7,623 |
|
- |
CIH05T | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 3 nH | ±0.3nH | 300 mA | - | Unshielded | 190mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
|
|
CIH03Q1N5CNCFIXED IND 1.5NH 440MA 110MOHM SM Samsung Electro-Mechanics |
2,666 |
|
- |
CIH03Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1.5 nH | ±0.2nH | 440 mA | - | Unshielded | 110mOhm Max | 13 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
CIH03T3N3SNCFIXED IND 3.3NH 200MA 300MOHM SM Samsung Electro-Mechanics |
1,998 |
|
- |
CIH03T | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 3.3 nH | ±0.3nH | 200 mA | - | Unshielded | 300mOhm Max | 5 @ 100MHz | 6.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|

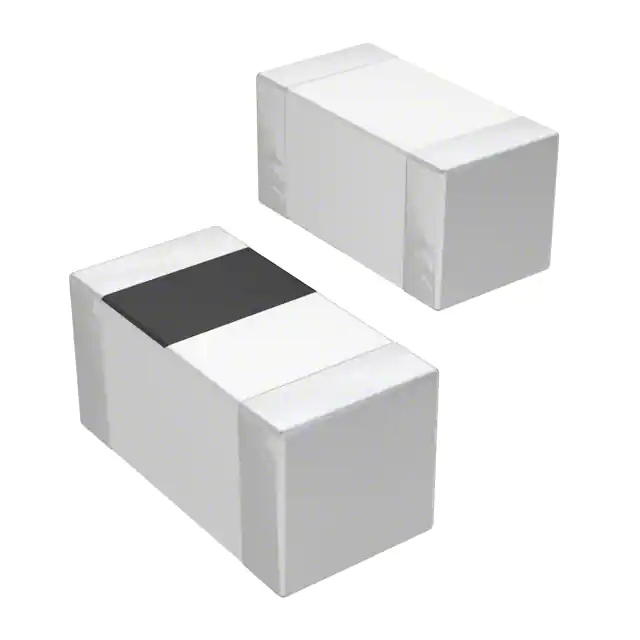

CIH10T8N2JNCFIXED IND 8.2NH 700MA 240MOHM SM Samsung Electro-Mechanics |
1,891 |
|
规格书 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 8.2 nH | ±5% | 700 mA | - | Unshielded | 240mOhm Max | 10 @ 100MHz | 3.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH03T15NJNCFIXED IND 15NH 100MA 800MOHM SMD Samsung Electro-Mechanics |
1,739 |
|
- |
CIH03T | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 15 nH | ±5% | 100 mA | - | Unshielded | 800mOhm Max | 6 @ 100MHz | 2.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
