购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-2512-3R3M-T2FIXED IND 3.3UH 980MA 227MOHM SM Abracon LLC |
3,134 |
|
规格书 |
ASPI-2512 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 980 mA | 1.25A | Shielded | 227mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
ASPI-2512-4R7M-T2FIXED IND 4.7UH 810MA 338MOHM SM Abracon LLC |
2,724 |
|
规格书 |
ASPI-2512 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 810 mA | 1.05A | Shielded | 338mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
ASPI-2512-6R8M-T2FIXED IND 6.8UH 650MA 510MOHM SM Abracon LLC |
3,216 |
|
规格书 |
ASPI-2512 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 650 mA | 850mA | Shielded | 510mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
ASPI-2512-100M-T2FIXED IND 10UH 590MA 630MOHM SMD Abracon LLC |
2,910 |
|
规格书 |
ASPI-2512 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 590 mA | 730mA | Shielded | 630mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

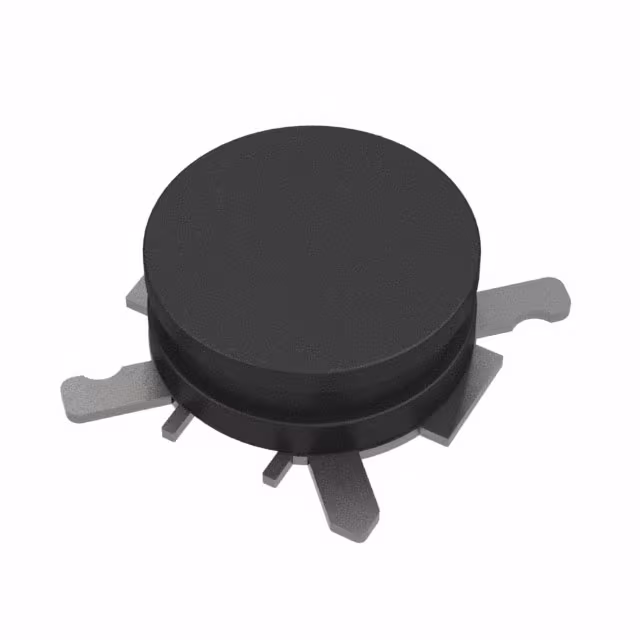

ASPI-5619-470 (4K/REEL)FIXED IND 47UH 650MA 703MOHM SMD Abracon LLC |
2,460 |
|
规格书 |
ASPI-5619 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 47 µH | ±20% | 650 mA | 810mA | Unshielded | 703mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.220" L x 0.220" W (5.60mm x 5.60mm) | 0.075" (1.90mm) |
|
ASPI-F7050-5R6M-TIND 5.6UH 7A 17.2M Abracon LLC |
2,133 |
|
规格书 |
ASPI-F7050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 5.6 µH | ±20% | 7 A | 14A | Shielded | 17.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.201" (5.10mm) |
|
|
ASPI-F7050-3R3M-TIND 3.3UH 13A 11.4M Abracon LLC |
4,958 |
|
规格书 |
ASPI-F7050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 3.3 µH | ±20% | 13 A | 14A | Shielded | 11.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.201" (5.10mm) |
|
ATCA-02-220M-HFIXED IND 22UH 5A 14 MOHM TH Abracon LLC |
3,401 |
|
规格书 |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 22 µH | ±20% | 5 A | - | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.866" Dia (22.00mm) | 0.492" (12.50mm) |
|
|
ATCA-02-290M-HFIXED IND 29UH 4A 20 MOHM TH Abracon LLC |
1,856 |
|
规格书 |
ATCA | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 29 µH | ±20% | 4 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.866" Dia (22.00mm) | 0.492" (12.50mm) |
|
ATCA-02-220M-VFIXED IND 22UH 5A 14 MOHM TH Abracon LLC |
2,075 |
|
规格书 |
ATCA | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 22 µH | ±20% | 5 A | - | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.866" L x 0.492" W (22.00mm x 12.50mm) | - |
