购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

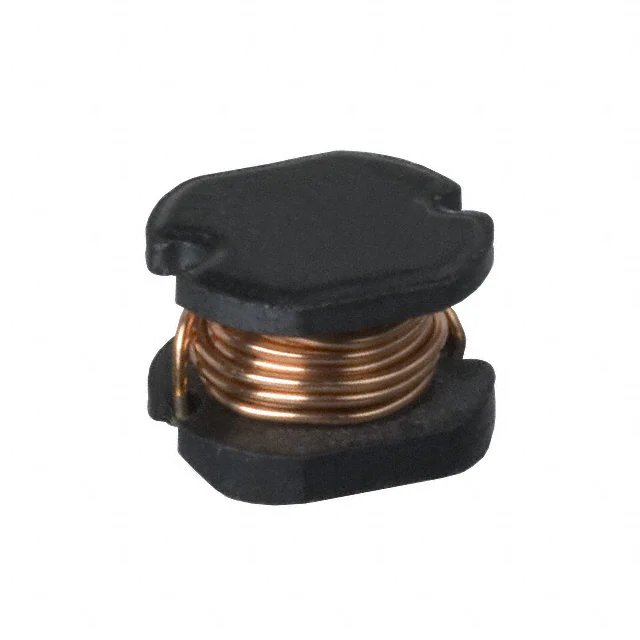

ASPI-0705-181K-TFIXED IND 180UH 510MA 710MOHM SM Abracon LLC |
4,176 |
|
规格书 |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 510 mA | - | Unshielded | 710mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
ASPI-0705-271K-TFIXED IND 270UH 420MA 1.11OHM SM Abracon LLC |
3,400 |
|
规格书 |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 420 mA | - | Unshielded | 1.11Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
ASPI-0705-391K-TFIXED IND 390UH 360MA 1.77OHM SM Abracon LLC |
3,471 |
|
规格书 |
ASPI-0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 360 mA | - | Unshielded | 1.77Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
AIUR-11-331KFIXED IND 330UH 490MA 635MOHM TH Abracon LLC |
1,461 |
|
规格书 |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 490 mA | 700mA | Unshielded | 635mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
|
AIUR-11-332KFIXED IND 3.3MH 150MA 6.72OHM TH Abracon LLC |
1,892 |
|
规格书 |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 150 mA | 225mA | Unshielded | 6.72Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
ATFC-0603-5N6-BTFIXED IND 5.6NH 300MA 650MOHM SM Abracon LLC |
2,827 |
|
规格书 |
ATFC-0603 | 0603 (1608 Metric) | Cut Tape (CT) | Obsolete | Thin Film | Ceramic | 5.6 nH | ±0.1nH | 300 mA | - | Unshielded | 650mOhm Max | 15 @ 300MHz | 5GHz | - | -25°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
ATFC-0603-8N2-BTFIXED IND 8.2NH 300MA 950MOHM SM Abracon LLC |
3,413 |
|
规格书 |
ATFC-0603 | 0603 (1608 Metric) | Cut Tape (CT) | Obsolete | Thin Film | Ceramic | 8.2 nH | ±0.1nH | 300 mA | - | Unshielded | 950mOhm Max | 15 @ 300MHz | 4GHz | - | -25°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
AMPLH5030S-R36M-TFIXED IND 0.36UH 18A 3.5MOHM SMD Abracon LLC |
4,510 |
|
规格书 |
AMPLH5030S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 360 nH | ±20% | 20 A | 24A | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
|
AMPLH5030S-1R2M-TFIXED IND 1.2UH 12.7A 8.4MOHM SM Abracon LLC |
4,520 |
|
规格书 |
AMPLH5030S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1.2 µH | ±20% | 14.5 A | 15.3A | Shielded | 8.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
|
|
AMPLH5030S-8R2M-TFIXED IND 8.2UH 5.2A 62.4MOHM SM Abracon LLC |
4,071 |
|
规格书 |
AMPLH5030S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 8.2 µH | ±20% | 5.8 A | 7.3A | Shielded | 62.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.220" L x 0.205" W (5.60mm x 5.20mm) | 0.118" (3.00mm) |
