购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

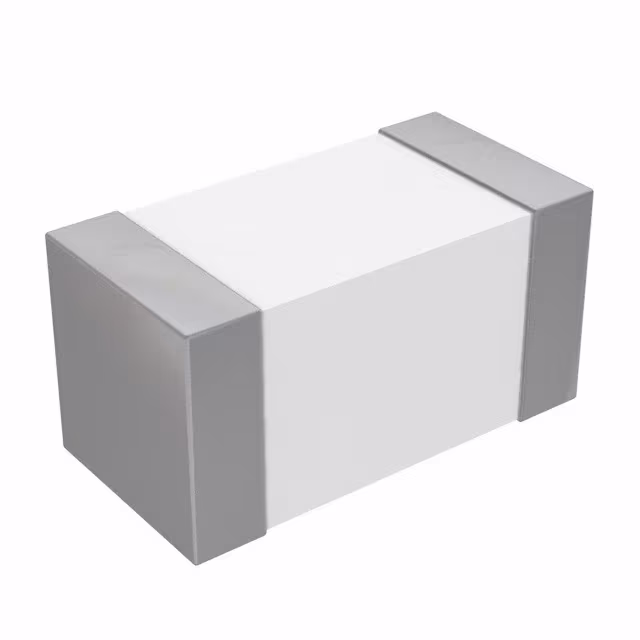

AIMC-0201-15NJ-TFIXED IND 15NH 150MA 1.1 OHM SMD Abracon LLC |
14,925 |
|
规格书 |
AIMC-0201 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±5% | 150 mA | - | Unshielded | 1.1Ohm Max | 5 @ 100MHz | 4.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.014" (0.35mm) |
|
AIMC-0402-10NJ-TFIXED IND 10NH 300MA 420MOHM SMD Abracon LLC |
14,301 |
|
规格书 |
AIMC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±5% | 300 mA | - | Unshielded | 420mOhm Max | 8 @ 100MHz | 3.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
AIMC-0603-4N7S-TFIXED IND 4.7NH 500MA 160MOHM SM Abracon LLC |
13,336 |
|
规格书 |
AIMC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 4.7 nH | ±0.3nH | 500 mA | - | Unshielded | 160mOhm Max | 10 @ 100MHz | 5.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
AIML-0603-1R2K-TFIXED IND 1.2UH 25MA 800MOHM SMD Abracon LLC |
13,087 |
|
规格书 |
AIML-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.2 µH | ±10% | 25 mA | - | Shielded | 800mOhm Max | 35 @ 10MHz | 110MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
ATFC-0402-2N3B-TFIXED IND 2.3NH 440MA 350MOHM SM Abracon LLC |
11,511 |
|
规格书 |
ATFC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | 2.3 nH | ±0.1nH | 440 mA | - | Unshielded | 350mOhm Max | 13 @ 500MHz | 8GHz | - | -45°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
AIMC-0603-33NJ-TFIXED IND 33NH 300MA 550MOHM SMD Abracon LLC |
10,342 |
|
规格书 |
AIMC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 33 nH | ±5% | 300 mA | - | Unshielded | 550mOhm Max | 12 @ 100MHz | 1.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
AIML-0603-R82K-TFIXED IND 820NH 35MA 2.1 OHM SMD Abracon LLC |
8,185 |
|
规格书 |
AIML-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 820 nH | ±10% | 35 mA | - | Shielded | 2.1Ohm Max | 15 @ 25MHz | 165MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
AIML-0603-8R2K-TFIXED IND 8.2UH 4MA 2.1 OHM SMD Abracon LLC |
7,974 |
|
规格书 |
AIML-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 8.2 µH | ±10% | 4 mA | - | Shielded | 2.1Ohm Max | 35 @ 4MHz | 35MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
ATFC-0402-9N1B-TFIXED IND 9.1NH 220MA 1.25OHM SM Abracon LLC |
7,764 |
|
规格书 |
ATFC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Ceramic | 9.1 nH | ±0.1nH | 220 mA | - | Unshielded | 1.25Ohm Max | 13 @ 500MHz | 5.5GHz | - | -45°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
AIML-0603-R47K-TFIXED IND 470NH 35MA 1.35OHM SMD Abracon LLC |
7,740 |
|
规格书 |
AIML-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±10% | 35 mA | - | Shielded | 1.35Ohm Max | 15 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
