购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0630LR-R22M-T15IND 0.22UH 24A 3MOHM Abracon LLC |
4,483 |
|
规格书 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 220 nH | ±20% | 24 A | 34A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
|
ASPI-0630LR-8R2M-T15IND 8.2UH 5A 60MOHM Abracon LLC |
4,806 |
|
规格书 |
ASPI-0630LR | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 8.2 µH | ±20% | 5 A | 5.5A | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|

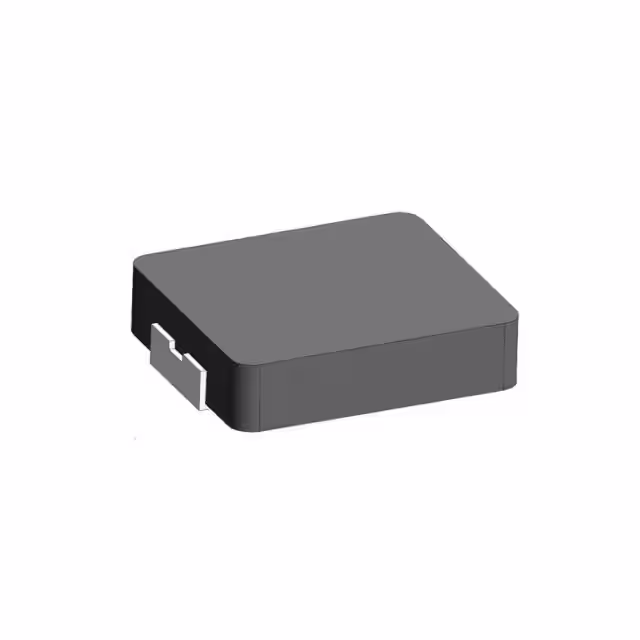

AMDLA3010Q-100MTFIXED IND 10UH 900MA 430MOHM SMD Abracon LLC |
3,608 |
|
规格书 |
AMDLA3010Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 900 mA | 1.4A | Shielded | 430mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.039" (1.00mm) |
|
|
AMDLA3010Q-1R0MTFIXED IND 1UH 2.8A 48 MOHM SMD Abracon LLC |
4,684 |
|
规格书 |
AMDLA3010Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 2.8 A | 5A | Shielded | 48mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.039" (1.00mm) |
|
|
AMDLA3010Q-R47MTFIXED IND 470NH 4A 25 MOHM SMD Abracon LLC |
3,597 |
|
规格书 |
AMDLA3010Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 4 A | 7A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.039" (1.00mm) |
|
|
AMDLA3010Q-1R5MTFIXED IND 1.5UH 2.4A 65 MOHM SMD Abracon LLC |
2,933 |
|
规格书 |
AMDLA3010Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 2.4 A | 4A | Shielded | 65mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.039" (1.00mm) |
|
|
AMDLA3010Q-2R2MTFIXED IND 2.2UH 1.8A 100MOHM SMD Abracon LLC |
2,874 |
|
规格书 |
AMDLA3010Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 1.8 A | 3.5A | Shielded | 100mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.039" (1.00mm) |
|
AISC-1210-2R2J-TFIXED IND 2.2UH 310MA 2.41OHM SM Abracon LLC |
2,090 |
|
规格书 |
AISC-1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.2 µH | ±5% | 310 mA | - | Unshielded | 2.41Ohm Max | 25 @ 50MHz | 130MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.144" L x 0.116" W (3.65mm x 2.95mm) | 0.106" (2.70mm) |
|
|
ASPI-8030HS-R33M-TIND 0.33UH 25A 2.57M Abracon LLC |
3,285 |
|
规格书 |
ASPI-8030HS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 330 nH | ±20% | 25 A | 35A | Shielded | 2.57mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.118" (3.00mm) |
|
|
ASPI-8030HS-1R0N-TIND 1UH 13.7A 8.35M Abracon LLC |
1,231 |
|
规格书 |
ASPI-8030HS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±30% | 13.7 A | 29A | Shielded | 8.35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.118" (3.00mm) |
