购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

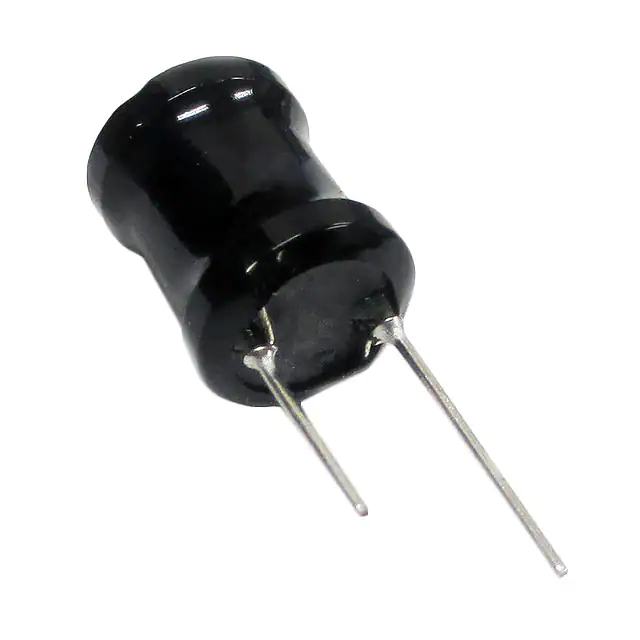

AIUR-16-122KFIXED IND 1.2MH 150MA 3.3 OHM TH Abracon LLC |
1,135 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 150 mA | 155mA | Unshielded | 3.3Ohm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-182KFIXED IND 1.8MH 120MA 5.7 OHM TH Abracon LLC |
3,381 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 120 mA | 125mA | Unshielded | 5.7Ohm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-222KFIXED IND 2.2MH 95MA 6.2 OHM TH Abracon LLC |
4,501 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 95 mA | 115mA | Unshielded | 6.2Ohm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-332KFIXED IND 3.3MH 95MA 8.5 OHM TH Abracon LLC |
3,364 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 95 mA | 96mA | Unshielded | 8.5Ohm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-392KFIXED IND 3.9MH 76MA 10.3 OHM TH Abracon LLC |
2,315 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 76 mA | 84mA | Unshielded | 10.3Ohm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-562KFIXED IND 5.6MH 76MA 13 OHM TH Abracon LLC |
4,483 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 76 mA | 70mA | Unshielded | 13Ohm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-682KFIXED IND 6.8MH 60MA 17 OHM TH Abracon LLC |
2,471 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 60 mA | 64mA | Unshielded | 17Ohm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-223KFIXED IND 22MH 30MA 60 OHM TH Abracon LLC |
1,906 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±10% | 30 mA | 35mA | Unshielded | 60Ohm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
AISC-1210H-1R0N-TFIXED IND 1UH 2.3A 63 MOHM SMD Abracon LLC |
4,530 |
|
规格书 |
AISC-1210H | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.3 A | - | Unshielded | 63mOhm Max | - | 100MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.138" L x 0.098" W (3.50mm x 2.50mm) | 0.098" (2.50mm) |
|
|
AISC-1210H-681K-TFIXED IND 680UH 40MA 40 OHM SMD Abracon LLC |
1,699 |
|
规格书 |
AISC-1210H | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 40 mA | - | Unshielded | 40Ohm Max | - | 3.2MHz | - | -25°C ~ 85°C | 1 kHz | - | Surface Mount | 1210 | 0.138" L x 0.098" W (3.50mm x 2.50mm) | 0.098" (2.50mm) |
