购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-0320S-100M-T3FIXED IND 10UH 770MA 241MOHM SMD Abracon LLC |
4,286 |
|
规格书 |
ASPI-0320S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 770 mA | 700mA | Shielded | 241mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
|
|
ASPI-0320S-120M-T3FIXED IND 12UH 680MA 322MOHM SMD Abracon LLC |
2,519 |
|
规格书 |
ASPI-0320S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 680 mA | 630mA | Shielded | 322mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
|
|
ASPI-0320S-150M-T3FIXED IND 15UH 660MA 344MOHM SMD Abracon LLC |
2,739 |
|
规格书 |
ASPI-0320S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 660 mA | 560mA | Shielded | 344mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
|
|
ASPI-0320S-220M-T3FIXED IND 22UH 570MA 495MOHM SMD Abracon LLC |
1,139 |
|
规格书 |
ASPI-0320S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 570 mA | 480mA | Shielded | 495mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
|
|
ASPI-0320S-330M-T3FIXED IND 33UH 450MA 740MOHM SMD Abracon LLC |
4,478 |
|
规格书 |
ASPI-0320S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 450 mA | 380mA | Shielded | 740mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.079" (2.00mm) |
|

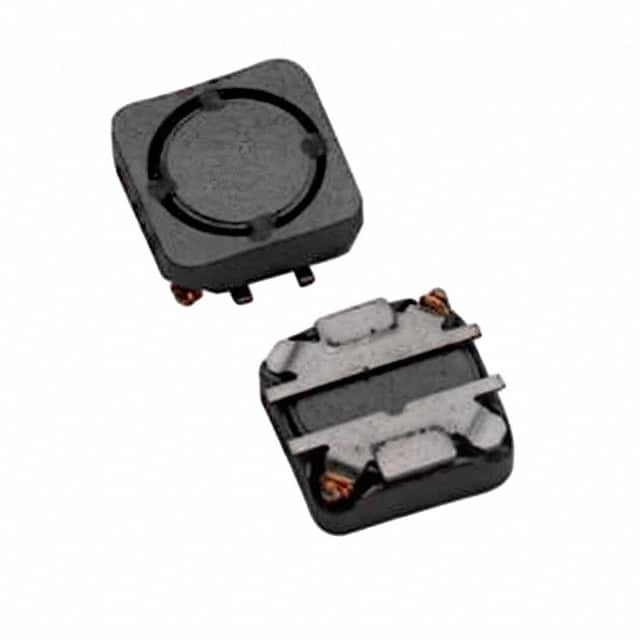

ASPI-0412S-2R2N-T3FIXED IND 2.2UH 1.43A 105MOHM SM Abracon LLC |
1,972 |
|
规格书 |
ASPI-0412S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.43 A | 1.6A | Shielded | 105mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0412S-3R3N-T3FIXED IND 3.3UH 1.15A 147MOHM SM Abracon LLC |
3,429 |
|
规格书 |
ASPI-0412S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 1.15 A | 1.2A | Shielded | 147mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0412S-6R8N-T3FIXED IND 6.8UH 780MA 307MOHM SM Abracon LLC |
2,228 |
|
规格书 |
ASPI-0412S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 780 mA | 980mA | Shielded | 307mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0412S-8R2N-T3FIXED IND 8.2UH 740MA 340MOHM SM Abracon LLC |
3,853 |
|
规格书 |
ASPI-0412S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 740 mA | 880mA | Shielded | 340mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0412S-120M-T3FIXED IND 12UH 590MA 483MOHM SMD Abracon LLC |
3,584 |
|
规格书 |
ASPI-0412S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 590 mA | 650mA | Shielded | 483mOhm Max | - | - | - | -25°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
