购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-1206-R10J-TFIXED IND 100NH 850MA 300MOHM SM Abracon LLC |
3,990 |
|
规格书 |
AISC-1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 850 mA | - | Unshielded | 300mOhm Max | 55 @ 300MHz | 1.1GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.140" L x 0.085" W (3.56mm x 2.16mm) | 0.060" (1.52mm) |
|

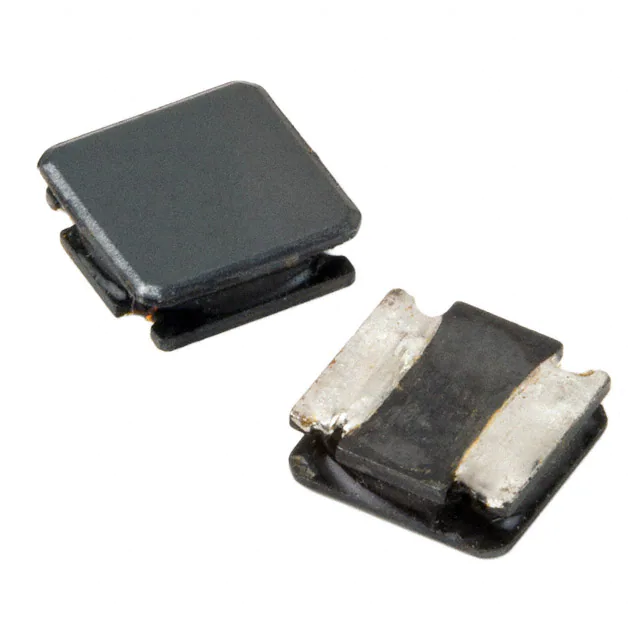

ASPI-0628-2R2N-T1FIXED IND 2.2UH 3.7A 20 MOHM SMD Abracon LLC |
3,160 |
|
规格书 |
ASPI-0628 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.7 A | 4.2A | Shielded | 20mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 0628 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
AISC-1206-1R0J-TFIXED IND 1UH 320MA 2.8 OHM SMD Abracon LLC |
2,403 |
|
规格书 |
AISC-1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±5% | 320 mA | - | Unshielded | 2.8Ohm Max | 45 @ 150MHz | 400MHz | - | -40°C ~ 125°C | 35 MHz | - | Surface Mount | - | 0.140" L x 0.085" W (3.56mm x 2.16mm) | 0.060" (1.52mm) |
|
ASPI-0615FS-6R8M-T2FIXED IND 6.8UH 1.8A 60 MOHM SMD Abracon LLC |
5,689 |
|
规格书 |
ASPI-0615FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.8 A | 2A | Shielded | 60mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
|
ASPI-0615FS-100M-T2FIXED IND 10UH 1.5A 90 MOHM SMD Abracon LLC |
3,980 |
|
规格书 |
ASPI-0615FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.5 A | 1.9A | Shielded | 90mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
ASPIAIG-S4035-150M-TFIXED IND 15UH 1.45A 230MOHM SMD Abracon LLC |
2,048 |
|
规格书 |
ASPIAIG-S4035 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 1.45 A | 1.8A | Shielded | 230mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.146" (3.70mm) |
|
|
ASPI-0615FS-470M-T2FIXED IND 47UH 800MA 370MOHM SMD Abracon LLC |
1,997 |
|
规格书 |
ASPI-0615FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 800 mA | 800mA | Shielded | 370mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
|
ASPI-0628-3R3M-T1FIXED IND 3.3UH 3.4A 28 MOHM SMD Abracon LLC |
1,412 |
|
规格书 |
ASPI-0628 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.4 A | 3.6A | Shielded | 28mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 0628 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
ASPI-0628-470M-T1FIXED IND 47UH 920MA 300MOHM SMD Abracon LLC |
1,287 |
|
规格书 |
ASPI-0628 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 920 mA | 1A | Shielded | 300mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 0628 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
AIAP-01-152K-TFIXED IND 1.5MH 130MA 13.5OHM TH Abracon LLC |
14,535 |
|
规格书 |
AIAP-01 | Axial | Tape & Reel (TR) | Active | Wirewound | - | 1.5 mH | ±10% | 130 mA | - | Unshielded | 13.5Ohm Max | - | 760kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.130" Dia x 0.360" L (3.30mm x 9.14mm) | - |
