购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-0805F-3R3G-TFIXED IND 3.3UH 175MA 2.3OHM SMD Abracon LLC |
5,242 |
|
规格书 |
AISC-0805F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±2% | 175 mA | - | Unshielded | 2.3Ohm Max | 15 @ 7.9MHz | 50MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
ASMPH-0603-R33M-TFIXED IND 330NH 1.2A 130MOHM SMD Abracon LLC |
4,515 |
|
规格书 |
ASMPH-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 330 nH | ±20% | 1.2 A | 1.5A | Shielded | 130mOhm | - | 190MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
AISC-1008-2R2G-TFIXED IND 2.2UH 280MA 2.8OHM SMD Abracon LLC |
3,592 |
|
规格书 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.2 µH | ±2% | 280 mA | - | Unshielded | 2.8Ohm Max | 28 @ 50MHz | 100MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
ASMPH-0603-R22M-TFIXED IND 220NH 1.25A 100MOHM SM Abracon LLC |
3,225 |
|
规格书 |
ASMPH-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±20% | 1.25 A | 1.6A | Shielded | 100mOhm | - | 200MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
ASMPH-0805-2R2M-TFIXED IND 2.2UH 900MA 200MOHM SM Abracon LLC |
3,216 |
|
规格书 |
ASMPH-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 900 mA | 500mA | Shielded | 200mOhm | - | 40MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
.jpg)
|

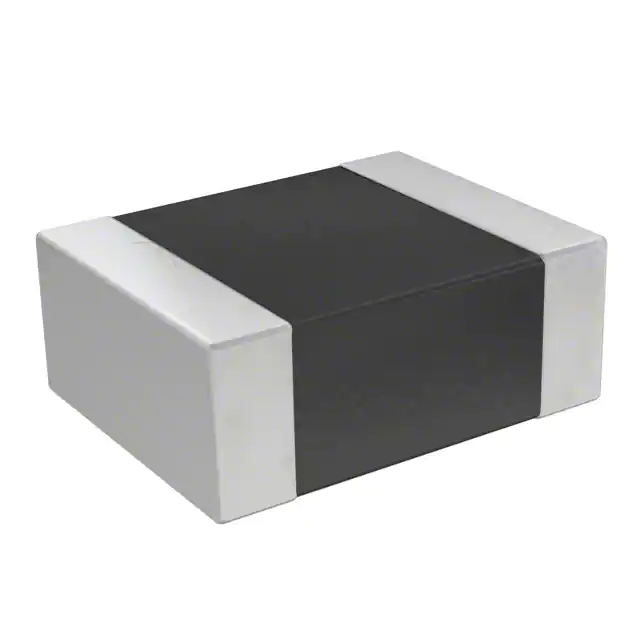

AIML-1008HC-2R2M-TFIXED IND 2.2UH 1.5A 90 MOHM SMD Abracon LLC |
3,196 |
|
规格书 |
AIML-1008HC | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.5 A | - | Shielded | 90mOhm | - | 40MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
AISC-1008-R27G-TFIXED IND 270NH 500MA 910MOHM SM Abracon LLC |
2,942 |
|
规格书 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±2% | 500 mA | - | Unshielded | 910mOhm Max | 50 @ 100MHz | 600MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
AISC-1008-8R2G-TFIXED IND 8.2UH 150MA 10.7OHM SM Abracon LLC |
2,815 |
|
规格书 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 µH | ±2% | 150 mA | - | Unshielded | 10.7Ohm Max | 20 @ 25MHz | 30MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
AISC-1008-1R2G-TFIXED IND 1.2UH 310MA 2 OHM SMD Abracon LLC |
2,520 |
|
规格书 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.2 µH | ±2% | 310 mA | - | Unshielded | 2Ohm Max | 35 @ 50MHz | 200MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
AISC-1008HQ-R10J-TFIXED IND 100NH 1A 160 MOHM SMD Abracon LLC |
2,000 |
|
规格书 |
AISC-1008HQ | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 1 A | - | Unshielded | 160mOhm Max | 62 @ 350MHz | 820MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
