购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
85072-F0FIXED IND 15UH 700 MOHM SMD Newava Technology Inc. |
2,920 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Thick Film | Ceramic, Ferrite | 15 µH | ±25% | - | 250mA | Shielded | 700mOhm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.200" L x 0.200" W (5.08mm x 5.08mm) | - |
|
|
85090-F0FIXED IND 20UH 500 MOHM SMD Newava Technology Inc. |
1,222 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Thick Film | Ceramic, Ferrite | 20 µH | ±20% | - | 800mA | Shielded | 500mOhm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.270" L x 0.270" W (6.86mm x 6.86mm) | - |
|
S34567FIXED IND 47UH 3.7A 40 MOHM TH Newava Technology Inc. |
2,018 |
|
规格书 |
- | Radial, Horizontal, 8 Leads | Bulk | Active | - | - | 47 µH | - | 3.7 A | - | Unshielded | 40mOhm Max | - | 2MHz | - | -45°C ~ 250°C | 10 kHz | - | Through Hole | - | 0.850" L x 0.790" W (21.59mm x 20.07mm) | 0.638" (16.20mm) |
|

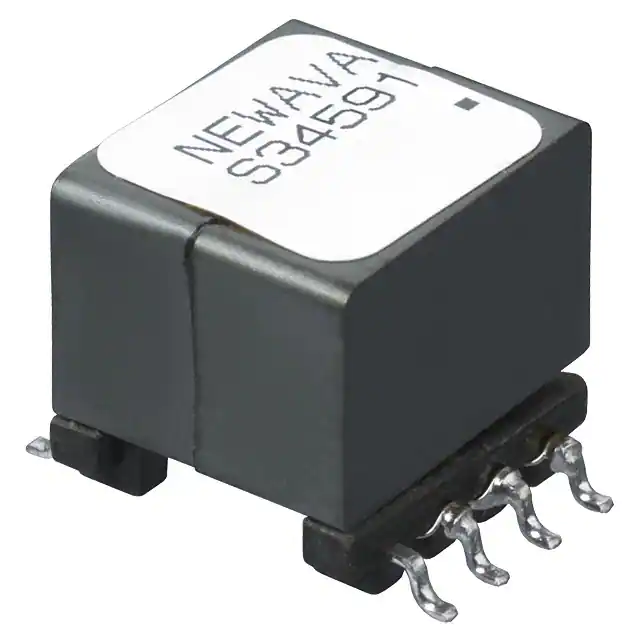

S34591FIXED IND 150UH 630MA 180MOHM SM Newava Technology Inc. |
3,971 |
|
规格书 |
- | Nonstandard | Bulk | Active | - | - | 150 µH | - | 630 mA | - | Unshielded | 180mOhm Max | - | 950kHz | - | -45°C ~ 250°C | 10 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.440" (11.18mm) |
|

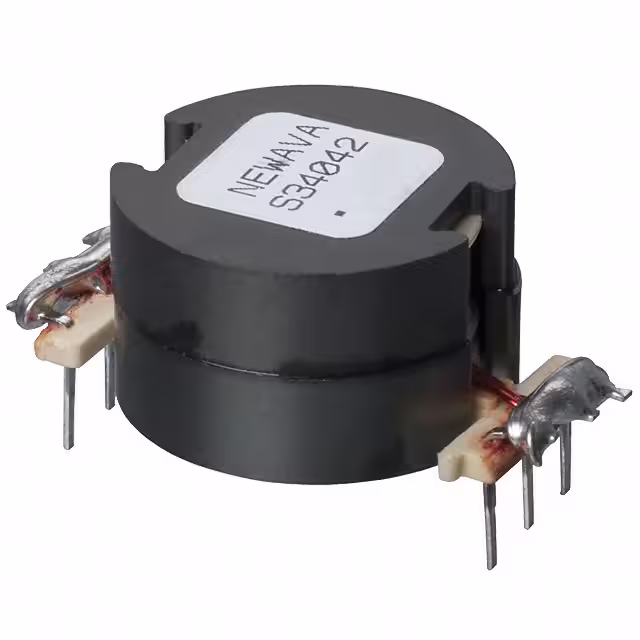

S34042FIXED IND 330UH 1A 0.11OHM TH Newava Technology Inc. |
4,434 |
|
规格书 |
- | Nonstandard | Bulk | Active | - | - | 330 µH | - | 1 A | - | Unshielded | 110mOhm Max | - | - | - | -45°C ~ 250°C | 10 kHz | - | Through Hole | - | 1.125" L x 0.740" W (28.58mm x 18.80mm) | 0.450" (11.43mm) |
|

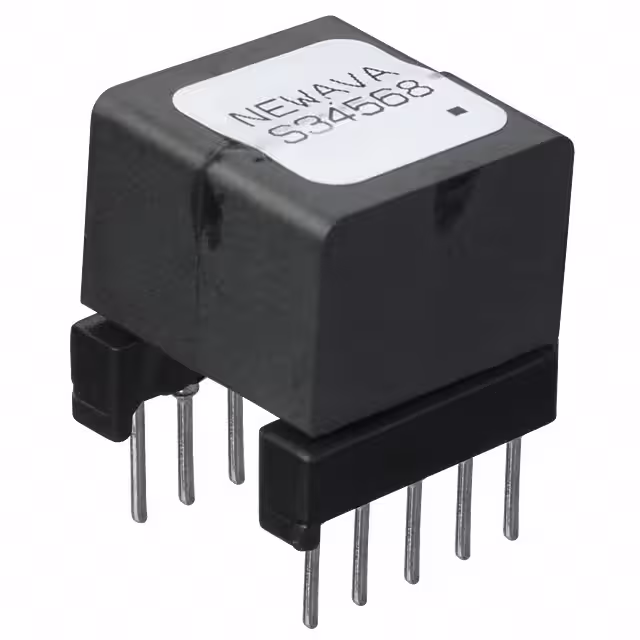

S34568FIXED IND 33UH 3.6A 35 MOHM TH Newava Technology Inc. |
1,499 |
|
规格书 |
- | Radial, Horizontal, 10 Leads | Bulk | Active | - | - | 33 µH | - | 3.6 A | - | Unshielded | 35mOhm Max | - | 2MHz | - | -45°C ~ 250°C | 10 kHz | - | Through Hole | - | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.520" (13.21mm) |
|
|
S34566FIXED IND 68UH 3.25A 45 MOHM TH Newava Technology Inc. |
2,583 |
|
规格书 |
- | Radial, Horizontal, 8 Leads | Bulk | Active | - | - | 68 µH | - | 3.25 A | - | Unshielded | 45mOhm Max | - | 2MHz | - | -45°C ~ 250°C | 10 kHz | - | Through Hole | - | 0.850" L x 0.790" W (21.59mm x 20.07mm) | 0.638" (16.20mm) |
|
S34050FIXED IND 1MH 900MA 0.25OHM TH Newava Technology Inc. |
4,679 |
|
规格书 |
- | Nonstandard | Bulk | Active | - | - | 1 mH | - | 900 mA | - | Unshielded | 250mOhm Max | - | - | - | -45°C ~ 250°C | 10 kHz | - | Through Hole | - | 1.287" L x 0.890" W (32.69mm x 22.61mm) | 0.550" (13.97mm) |
|
|
85068-A0FIXED IND 9.7UH 200 MOHM SMD Newava Technology Inc. |
1,724 |
|
规格书 |
- | Nonstandard | Bag | Active | Thick Film | Ceramic, Ferrite | 9.7 µH | ±25% | - | 250mA | Shielded | 200mOhm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.200" L x 0.200" W (5.08mm x 5.08mm) | - |
|
|
85047-A0FIXED IND 20UH 900MA 190MOHM SMD Newava Technology Inc. |
3,543 |
|
规格书 |
- | Nonstandard | Bag | Active | Thick Film | Ceramic, Ferrite | 20 µH | ±20% | 900 mA | 300mA | Shielded | 190mOhm | - | 8.8MHz | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.400" L x 0.400" W (10.16mm x 10.16mm) | - |
